Lincoln Electric Lincolnweld ED032998 1/8" – 2200 lb

SKU: ED032998
$11,768.03 $12,848.00

Financing Options

•
Loading Affirm Estimate…
•
Lease-To-Own From $535/mo — 24-Mo Term, No Hard Credit Check
Lincoln Elite Dealer
Free Shipping
Lowest Price
Mild Steel Solid Electrode
AWS / Classification: EH11K
Overview

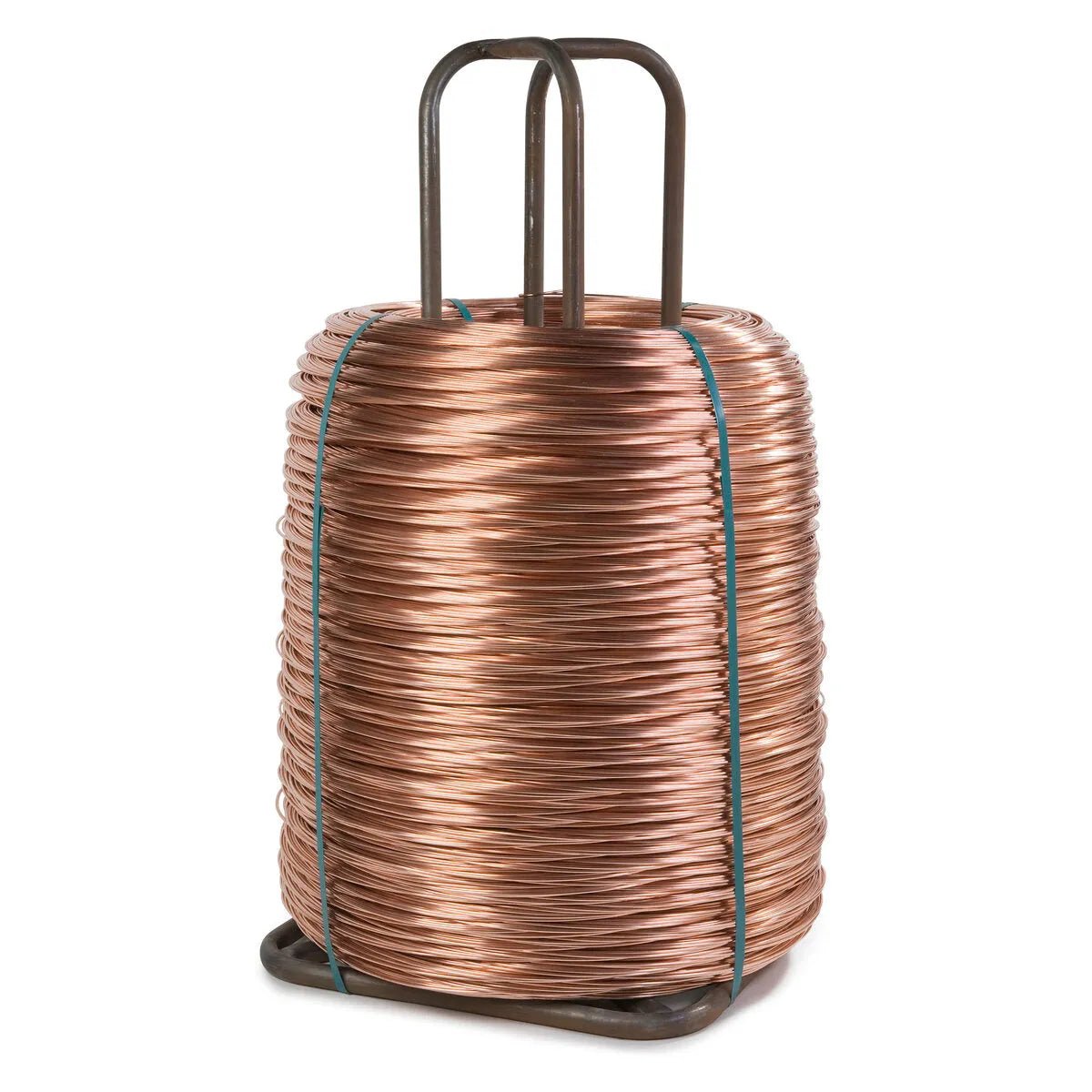

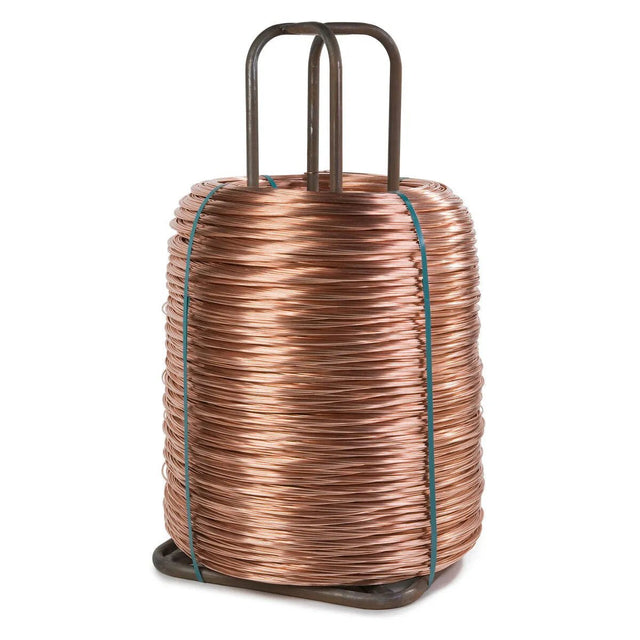

Lincoln ED032998 Lincolnweld L-56 Submerged Arc SAW Welding Wire, 1/8 in, 2200 lb Speed Feed Stem

Features

    • A low carbon, high manganese, very high silicon wire
    • Can be used with Lincolnweld® 800 series fluxes for welds requiring 480 MPa (70 ksi) tensile strength in stress relieved conditions
    • Actual (Type 3.1) certificates for each lot of wire showing chemical composition are available in the certificate center of lincolnelectric.com
    Specifications
    FeatureValue
    CONFORMANCES SPECIFICATIONCLASSIFICATION
    AWS AWS A5.17EH11K
    AWS AWS A5.23EH11K
    ISO ISO 14171-BSU31
    MIL MIL-E-23765/1DMIL-70S-6
    MIL MIL-E-23765/1EMIL-70S-6
    Classification %C%Mn%P%S%Si%Total Cu
    EH11K Requirement 0.06 - 0.151.40 - 1.850.030 max.0.030 max.0.80 - 1.150.35 max.
    SU31 Requirement 0.06 - 0.151.40 - 1.850.030 max.0.030 max.0.80 - 1.150.40 max.
    Typical Result 0.101.650.0140.0000.850.10
    LECO Diameter 1/8 in (3.2 mm)
    LECO Package 2200 lb Speed Feed® Stem
    Diameter (in) 1/8
    Includes
    • (1) 2200 lb Speed Feed® Stem
