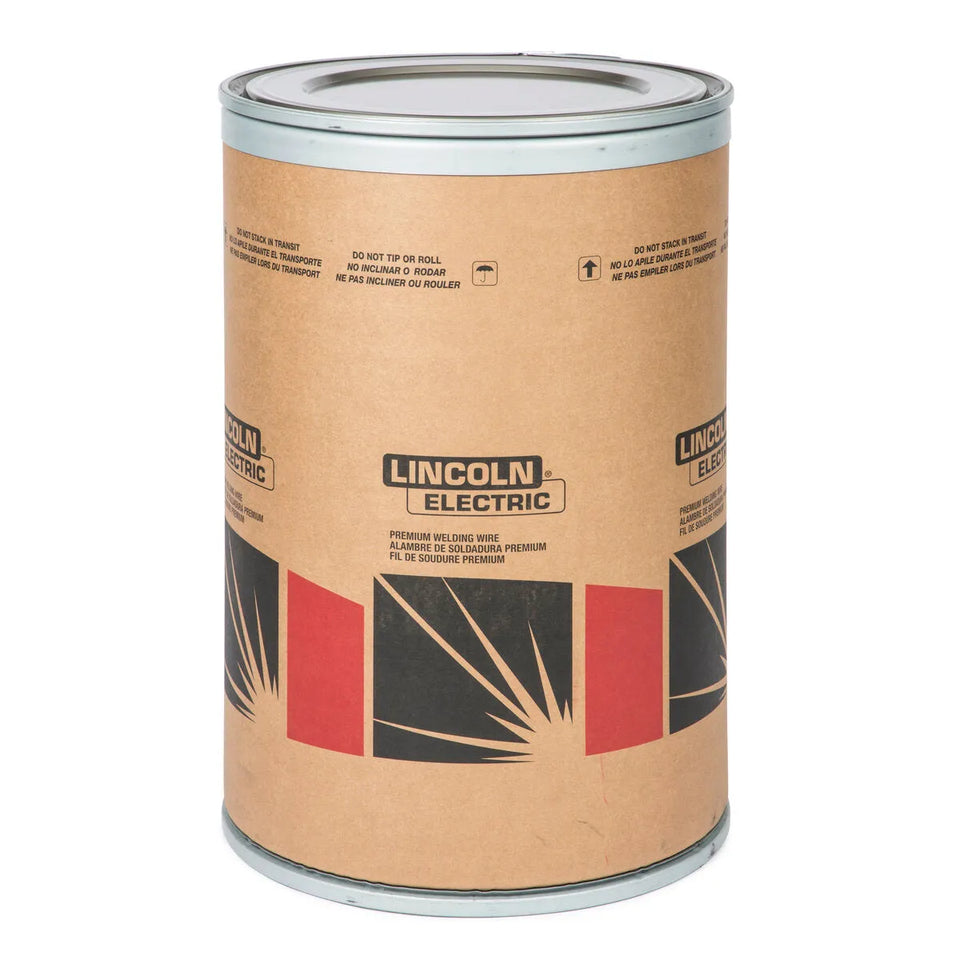

Lincoln ED033065 UltraCore 70C Flux-Cored FCAW-G Welding Wire, 5/64 in, 500 lb Speed Feed Drum

SKU: ED033065
$10,440.00 $12,800.00

Financing Options

•
Loading Affirm Estimate…
•
Lease-To-Own From $475/mo — 24-Mo Term, No Hard Credit Check
Lincoln Elite Dealer
Free Shipping
Lowest Price
UltraCore® 70C from Lincoln Electric is designed for low fume generation rates and controlled H8 diffusible hydrogen levels.
AWS / Classification: E70T-9C-H8, E70T1-C1A2-CS1-H8
Overview

UltraCore 70C 5/54 inch welding wire is designed for low fume generation rates and controlled H8 diffusible hydrogen levels. It is recommended for both single or multiple pass welding in either semi-automatic or automatic applications.This product is manufactured with steel made and melted in the U.S.A. It complies to Buy America (BA), Buy American (BAA), Build America, Buy America (BABA), and American Iron & Steel (AIS) standards.

Features
  • High deposition in the flat and horizontal positions
  • Low fume generation rates
  • Designed for welding with 100% CO2 shielding gas
  • Premium arc performance and bead appearance
  • ProTech® foil bag packaging
  • This product is manufactured with steel made and melted in the U.S.A. It complies to Buy America (BA), Buy American (BAA), Build America, Buy America (BABA), and American Iron & Steel (AIS) standards.

Typical Applications

  • Structural fabrication
  • Heavy equipment
  • Shipbuilding

Welding Positions

  • Flat/Horizontal

Shielding Gas

  • 100% CO2
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.20 E70T-1C-H8, E70T-9C-H8
AWS AWS A5.36 E70T1-C1A2-CS1-H8
ABS ABS - Part 2 2YSA H10
CWB CSA W48 E490T1-C1A3-CS1-H8 (E492T-9-H8
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -20°C (0°F)Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)
E70T-1C-H8 Requirement 100% CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
E70T-9C-H8 Requirement 100% CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
E70T1-C1A2-CS1-H8 Requirement 100% CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
Typical Result, As-welded 100% CO2DC+480 (70)560-640 (80-92)2542-84 (31-62)27-57 (20-42)
Classification Shielding GasPolarity%B%C%Mn%P%S%SiDiffusible Hydrogen, mL/100g Weld Metal
E70T-1C-H8 Requirement 100% CO2DC+0.12 max.1.75 max.0.03 max.0.03 max.0.90 max.8.0 max.
E70T-9C-H8 Requirement 100% CO2DC+0.12 max.1.75 max.0.03 max.0.03 max.0.90 max.8.0 max.
E70T1-C1A2-CS1-H8 Requirement 100% CO2DC+0.12 max.1.75 max.0.030 max.0.030 max.0.90 max.8 max.
Typical Result 100% CO2DC+0.0030-0.00500.02-0.081.44-1.590.008-0.020.006-0.010.53-0.653-8
Diameter Shielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)Deposition Rate, kg/hr (lb/hr)Efficiency, %
1/16 in (1.6 mm) 100% CO2DC+25 (1)3.2 (125)23-271702.4 (5.3)2.1 (4.7)84 - 89
1/16 in (1.6 mm) 100% CO2DC+25 (1)5.1 (200)24-282253.8 (8.4)3.2 (7.1)84 - 89
1/16 in (1.6 mm) 100% CO2DC+25 (1)6.4 (250)25-302604.8 (10.5)4.1 (9.0)84 - 89
1/16 in (1.6 mm) 100% CO2DC+25 (1)7.6 (300)27-312805.7 (12.6)4.9 (10.8)84 - 89
1/16 in (1.6 mm) 100% CO2DC+25 (1)9.5 (375)28-323207.1 (15.7)6.1 (13.5)84 - 89
5/64 in (2.0 mm) 100% CO2DC+25 (1)3.2 (125)23-272303.8 (8.4)3.2 (7.1)84 - 88
5/64 in (2.0 mm) 100% CO2DC+25 (1)4.4 (175)24-293055.4 (11.8)4.6 (10.1)84 - 88
5/64 in (2.0 mm) 100% CO2DC+25 (1)5.7 (225)25-303656.8 (15.0)5.9 (13.0)84 - 88
5/64 in (2.0 mm) 100% CO2DC+25 (1)6.4 (250)26-323857.7 (16.9)6.5 (14.3)84 - 88
5/64 in (2.0 mm) 100% CO2DC+25 (1)7.6 (300)27-334209.0 (19.8)7.8 (17.2)84 - 88
5/64 in (2.0 mm) 100% CO2DC+25 (1)8.3 (325)29-344509.9 (21.7)8.7 (19.0)84 - 88
3/32 in (2.4 mm) 100% CO2DC+25 (1)3.2 (125)26-333505.4 (11.9)4.7 (10.3)87 - 89
3/32 in (2.4 mm) 100% CO2DC+25 (1)5.1 (200)27-345008.6 (19.0)7.6 (16.7)87 - 89
3/32 in (2.4 mm) 100% CO2DC+31 (1 1/4)6.4 (250)29-3557010.6 (23.3)9.4 (20.8)87 - 89
3/32 in (2.4 mm) 100% CO2DC+31 (1 1/4)7.6 (300)31-3763013.1 (28.8)11.4 (25.1)87 - 89
3/32 in (2.4 mm) 100% CO2DC+31 (1 1/4)8.3 (325)32-3872014.3 (31.5)12.4 (27.2)87 - 89
Note
⁽¹⁾ To estimate ESO, subtract 1/4 in. (6.0 mm) from CTWD.
LECO Diameter 5/64 in (2.0 mm)
LECO Package 500 lb Speed Feed® Drum
Diameter (in) 5/64
Downloads
Includes
  • (1) 500 lb Speed Feed® Drum
