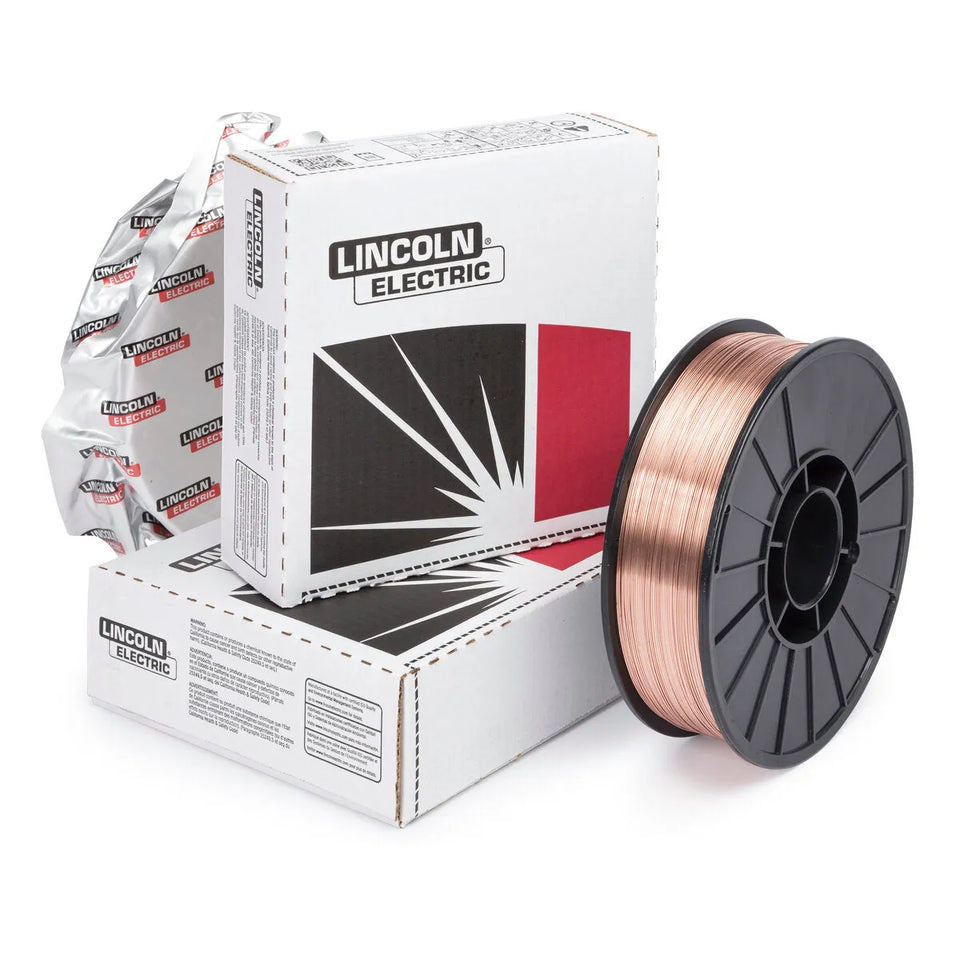

Lincoln Electric Pipeliner 80Ni ED033122 0.047" – 10 lb

SKU: ED033122
$98.16 $120.30
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
Pipeliner® 80Ni1 from Lincoln Electric is a micro-alloyed MIG wire designed for semi-automatic or automatic welding of root, hot, fill and cap passes.
AWS / Classification: ER80S-G
Overview

Pipeliner 80Ni1 .047 welding wire micro-alloyed MIG wire is designed for semi-automatic or automatic welding of root, hot, fill and cap passes on up to X80 grade pipe and root passes on up to X100 grade pipe.

Features
  • Root pass capability up to X100 and hot, fill and cap pass up to X80 grade pipe
  • Impact toughness capable of exceeding 69 - 95 J (51 - 70 ft·lbf) at -50°C (-58°F)
  • Q2 Lot® - Certificate showing actual deposit chemistry available online
  • Excellent wire placement for narrow groove welding
  • ProTech® packaging system

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.28 ER80S-G
ABS ABS - Part 2 5YQ500SA H10
CWB AWS A5.28 ER80S-G
DNV-GL DNV - 2.9 V Y50MS H5
LR LR - Chapter 11 5Y50S H5
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)Charpy V-Notch, J (ft-lbs) @ -60°C (-75°F)Hardness Rockwell B
ER80S-G Requirement Not SpecifiedDC+550 (80) min.Info. Only
Typical Result, As-welded 80% Ar, 20% CO2DC+510-600 (74-87)620-670 (90-97)25-2792-142 (68-105)68-100 (50-74)91-95
Classification Shielding GasPolarity%C%Cr%Cu%Mn%Mo%Ni%P%S%Si%Ti%V%Zr
Typical Result 80% Ar, 20% CO2DC+0.06-0.090.03-0.050.16-0.201.27-1.320.02 max.0.75-0.870.005-0.0090.005-0.0090.56-0.650.030.005 max.0.001 max.
Classification %Al%C%Cr%Mn%Mo%Ni%P%S%Si%Ti%V%Zr%Ti+Zr%Total Cu
ER80S-G Requirement 0.30 min. *0.20 min. *0.50 min. *
Typical Result 0.01 max.0.06-0.080.041.46-1.570.01 max.0.84-0.920.005-0.0100.005-0.0110.74-0.770.070.01 max.0.001 max.0.04-0.060.19-0.21
Note
* To meet the requirements of a "G" classification, the chemical composition of the eletrode must meet the minimum requirement for one or more of
LECO Diameter 1.2 mm (0.047 in)
LECO Package 10 lb Spool
Diameter (in) 0.047
Includes
  • (1) 10 lb Spool
