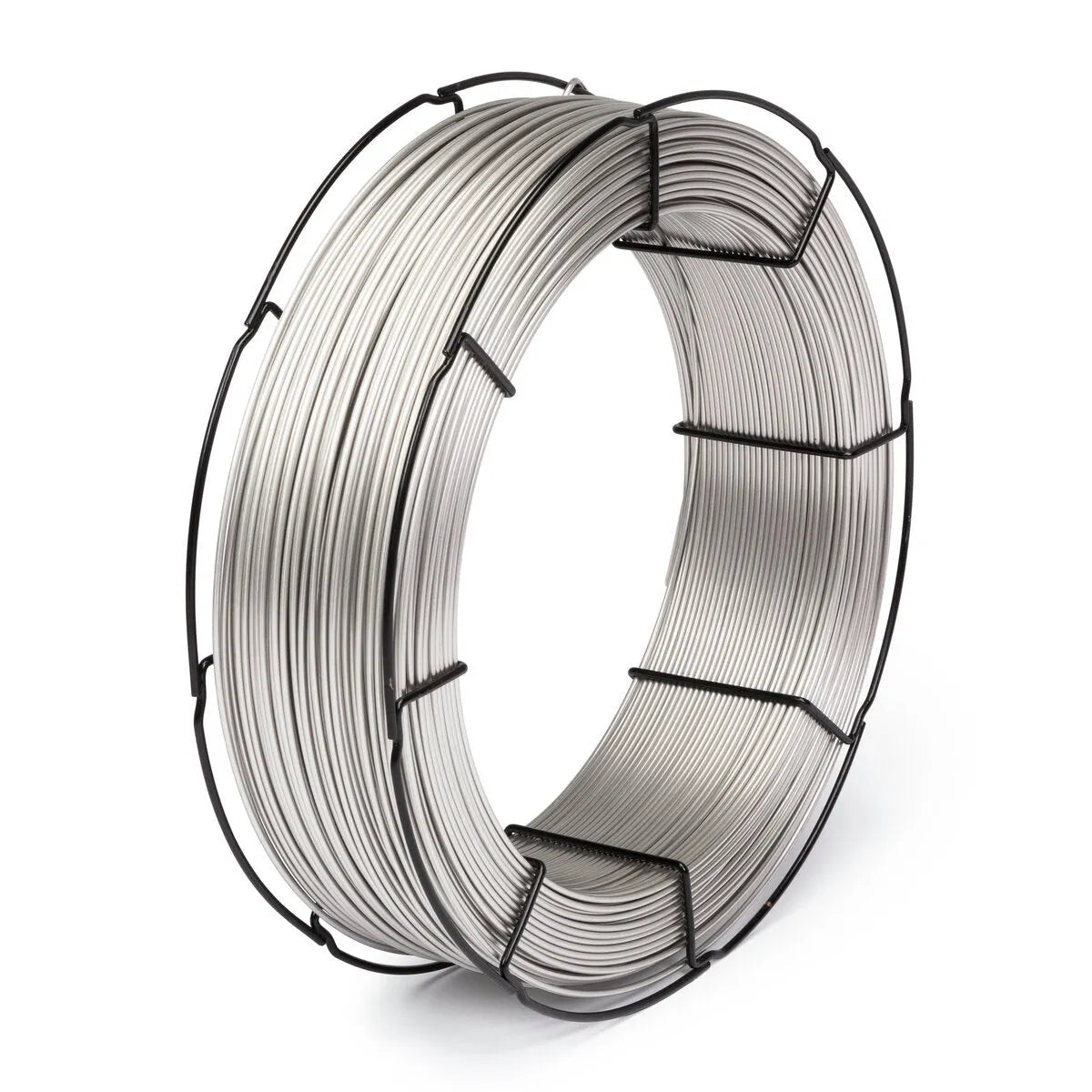

Lincoln ED033151 Lincolnweld 309/309L Submerged Arc SAW Welding Wire, 5/64 in, 60 lb Coil

Q: What process is the Lincoln ED033151 Lincolnweld 309/309L Submerged Arc SAW Welding Wire, 5/64 in, 60 lb Coil designed for?

The Lincoln ED033151 Lincolnweld 309/309L Submerged Arc SAW Welding Wire, 5/64 in, 60 lb Coil is used in Submerged Arc Welding (SAW), a high-deposition welding process where the arc is shielded by a blanket of granular flux rather than shielding gas. SAW is used primarily in the flat and horizontal positions for welding structural plate, pressure vessels, pipelines, ship hulls, and heavy fabrication. It produces deep penetration, high deposition rates, and excellent weld quality with minimal spatter.

Q: What is the AWS classification of the Lincoln ED033151 Lincolnweld 309/309L Submerged Arc SAW Welding Wire, 5/64 in, 60 lb Coil?

The Lincoln ED033151 Lincolnweld 309/309L Submerged Arc SAW Welding Wire, 5/64 in, 60 lb Coil carries AWS ER309 classification. In SAW, the wire/flux combination determines the weld deposit chemistry and mechanical properties — the wire class and flux class are always specified together. Always verify the flux is approved for use with this wire in your Welding Procedure Specification (WPS).

Q: What diameter is the Lincoln ED033151 Lincolnweld 309/309L Submerged Arc SAW Welding Wire, 5/64 in, 60 lb Coil available in?

Common SAW wire diameters range from 5/64 in to 7/32 in. Smaller diameter wire (5/64, 3/32 in) suits lower heat-input applications, tight-groove work, and thinner plate. Larger diameter wire (5/32, 3/16, 7/32 in) maximizes deposition rate for heavy plate and multi-pass structural welds. Consult the wire manufacturer's parameter chart for amperage, voltage, and travel speed by diameter.

Q: What spool or coil size is the Lincoln ED033151 Lincolnweld 309/309L Submerged Arc SAW Welding Wire, 5/64 in, 60 lb Coil available in?

SAW wire is supplied in various coil weights from 25 lb coils to 600 lb reels, depending on the wire diameter and supplier. Heavy production SAW systems use large coils (300–600 lb) to minimize wire change-over time. Ensure your SAW wire feeder head is configured for the specific coil diameter and weight of the product ordered.

Q: How should I store the Lincoln ED033151 Lincolnweld 309/309L Submerged Arc SAW Welding Wire, 5/64 in, 60 lb Coil to maintain weld quality?

Store SAW wire in a clean, dry environment. Surface rust on SAW wire can introduce hydrogen into the weld deposit, increasing the risk of porosity and cold cracking in susceptible base materials. Lightly rusted wire can sometimes be cleaned with a dry cloth, but wire with heavy surface oxidation should be discarded. Keep wire coils sealed in their original packaging until ready for use and store at controlled room temperature with low humidity.

SKU: ED033151

$1,169.71 ~~$1,192.20~~

Financing Options

•

As low as …/mo with.

•

Loading Affirm Estimate…

Lincoln Elite Dealer

Free Shipping

Lowest Price

For joining carbon or mild alloy steel to austenitic stainless steels

AWS / Classification: AWS A5.9: ER309, AWS A5.9: ER309L

Overview

Lincoln ED033151 Lincolnweld 309/309L Submerged Arc SAW Welding Wire, 5/64 in, 60 lb Coil

LINCOLNWELD 309/309L provides reduced carbon levels (0.03% max) that offers increased resistance to inter-granular corrosion, ideal for joining stainless steels to themselves or to carbon or low alloy steels, and can be used at temperatures up to 700°F (371°C).

Features

Designed to be used primarily with basic fluxes that recover nearly all of the wire chromium in the deposit
Low carbon content recommended where there is a risk of intergranular corrosion
Reduced carbon levels (0.03% max) that offers increased resistance to inter-granular corrosion
Q2 Lot® - Certificate showing actual wire composition and calculated ferrite number (FN) available online

Specifications

Feature	Value
CONFORMANCES	SPECIFICATIONCLASSIFICATION
AWS	AWS A5.9 ER309, ER309L
ISO	ISO 14343-B SS309L
ABS	AWS A5.9 ER309, ER309L
CWB	CSA W48 ER309,ER309L
MIL	MIL-E-19933E AMD1 MIL-309
Classification	%C%Cr%Cu%Mn%Mo%N%Nb%Ni%P%S%SiFerrite Number (Delong ©)Ferrite Number (WRC-1992 ©)
ER309 Requirement	0.12 max.23.0 - 25.00.75 max.1.0 - 2.50.75 max.Info. OnlyInfo. Only12.0 - 14.00.03 max.0.03 max.0.30 - 0.65
ER309L Requirement	0.03 max.23.0 - 25.00.75 max.1.0 - 2.50.75 max.Info. OnlyInfo. Only12.0 - 14.00.03 max.0.03 max.0.30 - 0.65Info. OnlyInfo. Only
SS309L Requirement	0.03 max.23.0 - 25.00.75 max.1.0 - 2.50.75 max.Info. Only12.0 - 14.00.03 max.0.03 max.0.30 - 0.65Info. OnlyInfo. Only
Typical Result	0.01-0.0223.3-23.80.03-0.091.6-1.90.03-0.110.06-0.080.04 max.13.4-13.70.020.02 max.0.36-0.519.00-14.008.00-12.00
Diameter	Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, amps
5/64 in (2.0 mm)	80-240 (2.0-6.1)24-30190-500
3/32 in (2.4 mm)	60-210 (1.5-5.3)26-32195-575
1/8 in (3.2 mm)	35-110 (0.9-2.8)28-34200-700
5/32 in (4.0 mm)	30-75 (0.8-1.9)30-36320-775
LECO Diameter	5/64 in (2.0 mm)
LECO Package	60 lb Coil
Diameter (in)	5/64

Includes

(1) 60 lb Coil
