What is the AWS classification of the Lincoln ED033188 Lincolnweld 780 Submerged Arc SAW Flux, 3000 lb Foil Lined Bulk Bag?

SAW wire AWS classification (e.g., EH14 for high-manganese wire, EM12K for medium-manganese wire, EA2 for low-alloy wire) specifies the wire chemistry. The wire classification must be paired with a compatible flux classification that together meet the WPS deposit property requirements. Check the flux manufacturer's compatibility chart before combining wire and flux.

Lincoln Electric Lincolnweld 780 ED033188 Submerged Arc Wire – 3000 lb

Q: What process is the Lincoln ED033188 Lincolnweld 780 Submerged Arc SAW Flux, 3000 lb Foil Lined Bulk Bag designed for?

The Lincoln ED033188 Lincolnweld 780 Submerged Arc SAW Flux, 3000 lb Foil Lined Bulk Bag is used in Submerged Arc Welding (SAW), a high-deposition welding process where the arc is shielded by a blanket of granular flux rather than shielding gas. SAW is used primarily in the flat and horizontal positions for welding structural plate, pressure vessels, pipelines, ship hulls, and heavy fabrication. It produces deep penetration, high deposition rates, and excellent weld quality with minimal spatter.

Q: What diameter is the Lincoln ED033188 Lincolnweld 780 Submerged Arc SAW Flux, 3000 lb Foil Lined Bulk Bag available in?

Common SAW wire diameters range from 5/64 in to 7/32 in. Smaller diameter wire (5/64, 3/32 in) suits lower heat-input applications, tight-groove work, and thinner plate. Larger diameter wire (5/32, 3/16, 7/32 in) maximizes deposition rate for heavy plate and multi-pass structural welds. Consult the wire manufacturer's parameter chart for amperage, voltage, and travel speed by diameter.

Q: What spool or coil size is the Lincoln ED033188 Lincolnweld 780 Submerged Arc SAW Flux, 3000 lb Foil Lined Bulk Bag available in?

SAW wire is supplied in various coil weights from 25 lb coils to 600 lb reels, depending on the wire diameter and supplier. Heavy production SAW systems use large coils (300–600 lb) to minimize wire change-over time. Ensure your SAW wire feeder head is configured for the specific coil diameter and weight of the product ordered.

Q: How should I store the Lincoln ED033188 Lincolnweld 780 Submerged Arc SAW Flux, 3000 lb Foil Lined Bulk Bag to maintain weld quality?

Store SAW wire in a clean, dry environment. Surface rust on SAW wire can introduce hydrogen into the weld deposit, increasing the risk of porosity and cold cracking in susceptible base materials. Lightly rusted wire can sometimes be cleaned with a dry cloth, but wire with heavy surface oxidation should be discarded. Keep wire coils sealed in their original packaging until ready for use and store at controlled room temperature with low humidity.

SKU: ED033188

$8,314.21 ~~$8,820.00~~

Financing Options

•

As low as …/mo with.

•

Loading Affirm Estimate…

Lincoln Elite Dealer

Free Shipping

Lowest Price

700 Series Active Flux

Overview

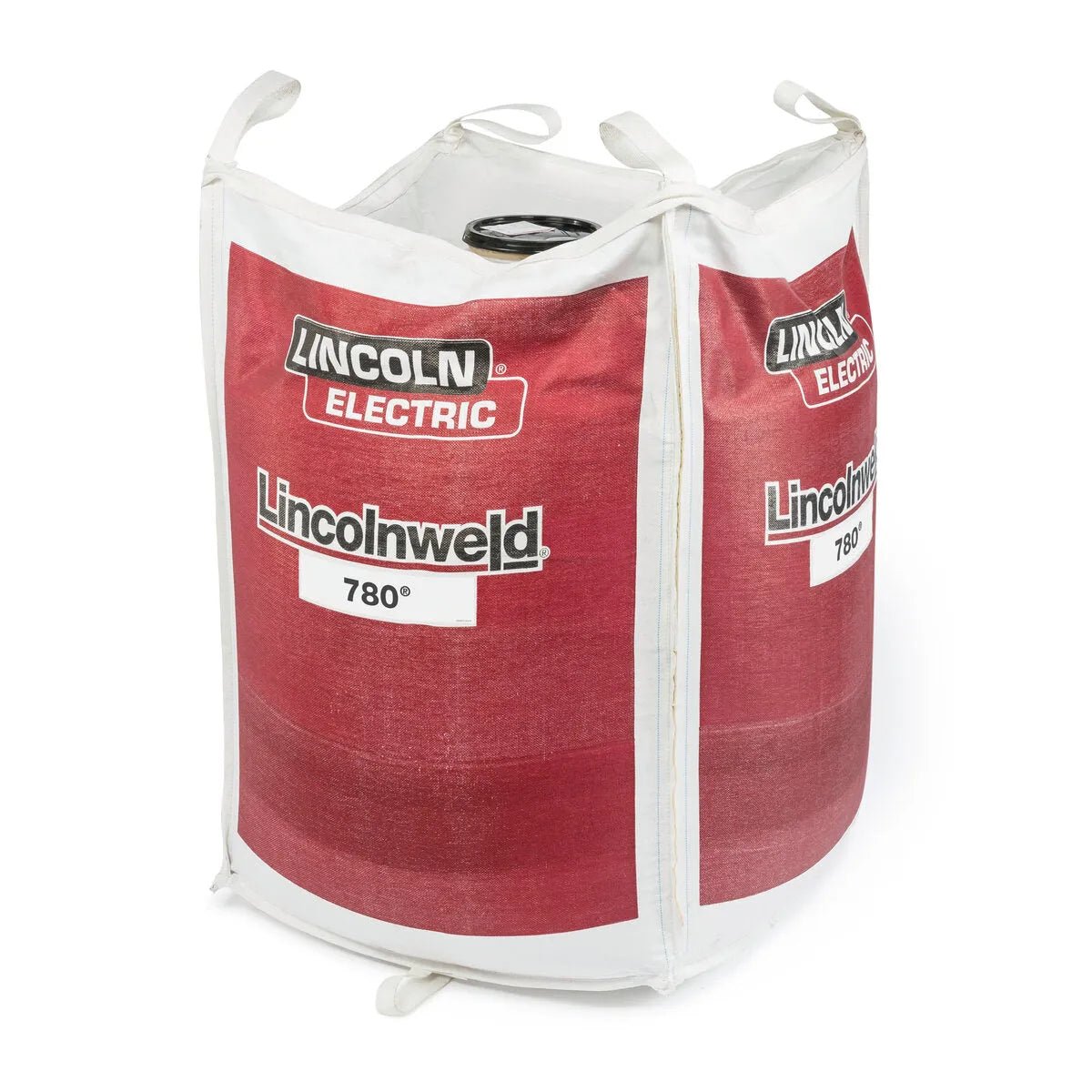

Lincoln ED033188 Lincolnweld 780 Submerged Arc SAW Flux, 3000 lb Foil Lined Bulk Bag

Features

• Industry standard for submerged arc welding applications
• Fast freezing slag for easy removal and minimized spilling on circumferential welds
• When paired with Lincolnweld L-61 it is recommended for up to three pass welding applications
• Excellent bead shape and slag removal
• Good resistance to moisture contamination for reduced porosity

Specifications

Feature	Value
Wire	ClassificationPostweld Heat TreatmentYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -20°C (0°F)Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)
Lincolnweld® L-50®	F7A0-EM13K-H8As-welded520 (75)600 (87)28107 (79)
Lincolnweld® L-60	F7A0-EL12-H8As-welded440 (64)540 (79)3076 (56)
Lincolnweld® L-61®	F7A2-EM12K-H8As-welded480 (70)580 (84)2769 (51)
Wire	Classification%C%Cu%Mn%P%S%SiDiffusible Hydrogen, mL/100g Weld Metal
Lincolnweld® L-50®	F7A0-EM13K-H80.050.111.760.0170.0080.775
Lincolnweld® L-60	F7A0-EL12-H80.060.071.590.0240.0100.654
Lincolnweld® L-61®	F7A2-EM12K-H80.050.081.550.0190.0090.704
Classification	%Al2O3%CaF2%CaO%MgO%MnO%Na2O%SiO2%TiO2%Metal Alloys%ZrO2
Typical Result	39110316215850
LECO Diameter	Flux
LECO Package	3000 lb Foil Lined Bulk Bag

Includes

(1) 3000 lb Foil Lined Bulk Bag
