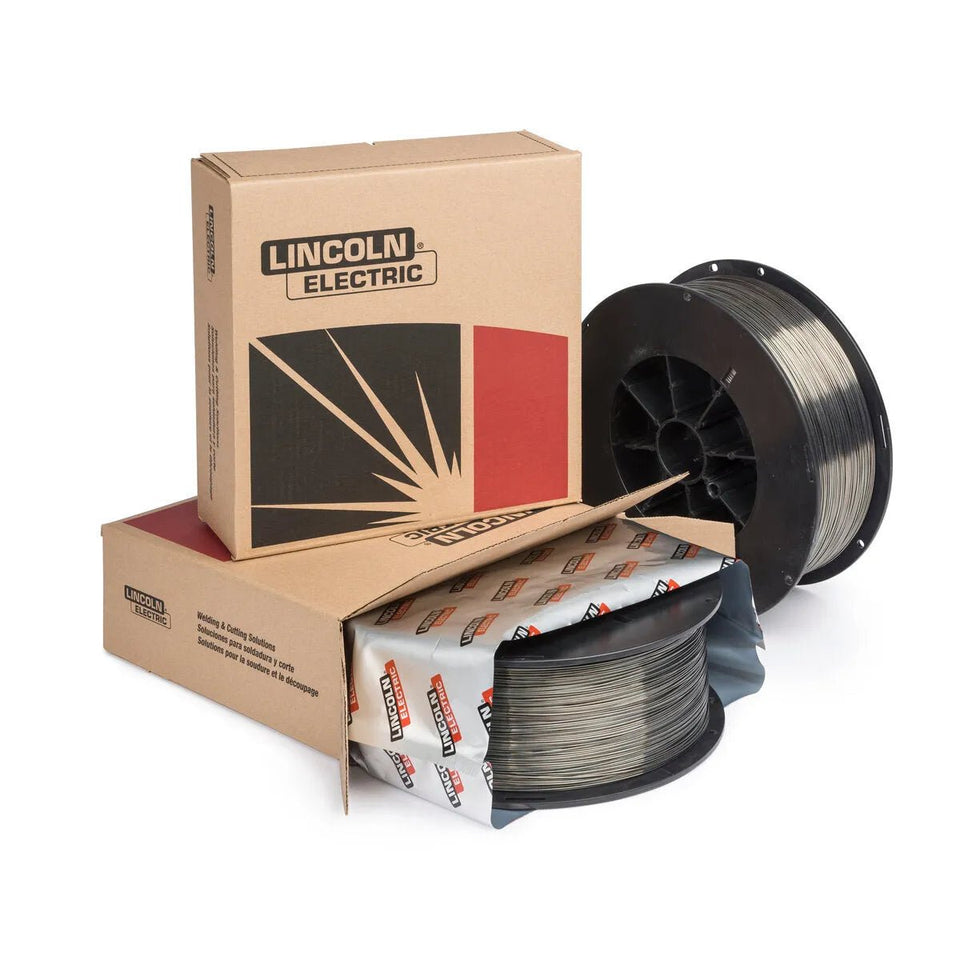

Lincoln ED033808 Pipeliner 101M Flux-Cored FCAW-G Welding Wire, 0.047 in, 25 lb Spool

SKU: ED033808
$201.60 $247.25
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
Pipeliner® 101M from Lincoln Electric is designed for hot, fill and cap pass welding on up to X80 grade pipe.
AWS / Classification: E101T1-GM, E101T1-M21A4-K11
Overview

Lincoln Pipeliner 101M 0.047 inch welding wire is a gas-shielded, flux-cored wire designed for hot, fill and cap pass welding on up to X80 grade pipe.

Features
  • Consistent Arc – designed for optimal performance in automated pipe welding applications where a consistent arc length is critical
  • Flat Bead Shape – fast freezing slag provides consistent puddle support all the way around the pipe
  • Impact Toughness – Capable of producing weld deposits with impact toughness exceeding 27J (20ftlbf) at -40C (-40F)
  • Q2 Lot® - Certificate showing actual deposit chemistry and mechanical properties per lot available online
  • ProTech® foil bag packaging
  • Q2 Lot® Control and Tested – certificate showing actual deposit chemistry and mechanical properties per lot available online
  • ProTech® Packaging – hermetically sealed packaging for moisture resistance.

Typical Applications

  • Hot, fill and cap pass welding on up to X80 grade pipe
  • Fully automated pipe welding
  • Semi-automated pipe welding
  • Meets hardness and chemistry requirements for NACE
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.29E101T1-GM
AWS AWS A5.36E101T1-M21A4-K11
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -40°C (-40°F)
E101T1-GM Requirement 75-80% Ar, balance CO2DC+610 (88) min.690-830 (100-120)16 min.
E101T1-M21A4-K11 Requirement M21-ArCDC+610 (88) min.690-830 (100-120)16 min.27 (20) min.
Typical Result, As-welded 75% Ar, 25% CO2DC+630 (92)690-740 (100-107)1952-120 (38-88)
Classification Shielding GasPolarity%B%C%Cr%Mn%Mo%Ni%P%S%Si%V
E101T1-GM Requirement 75-80% Ar, balance CO2DC+Info. Only0.30 min. *0.50 min. *0.20 min. *0.50 min. *0.030 max.0.030 max.1.00 max.0.10 min. *
E101T1-M21A4-K11 Requirement M21-ArCDC+0.15 max.0.20 max.1.00 - 2.500.50 max.0.40 - 1.000.030 max.0.030 max.0.80 max.0.05 max.
Typical Result 75% Ar, 25% CO2DC+0.004-0.00430.06-0.070.061.48-1.640.34-0.390.76-0.860.015 max.0.010 max.0.26-0.300.01
Diameter Shielding GasPolarityCTWD, mm (in.)Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)
1.2 mm (0.045 in) 75-80% Ar / balance CO2DC+19 (3/4)4.4-10.2 (175-400)23-30130-2751.8-4.1 (3.9-9.0)
Note
* To meet the requirements of a "G" classification, the chemical composition of the weld deposit must meet the minimum requirement for one or more of these elements.
LECO Diameter 1.2 mm (0.047 in)
LECO Package 25 lb Spool
Diameter (in) 0.047
Includes
  • (1) 25 lb Spool
