Lincoln Electric  |  SKU: ED033838

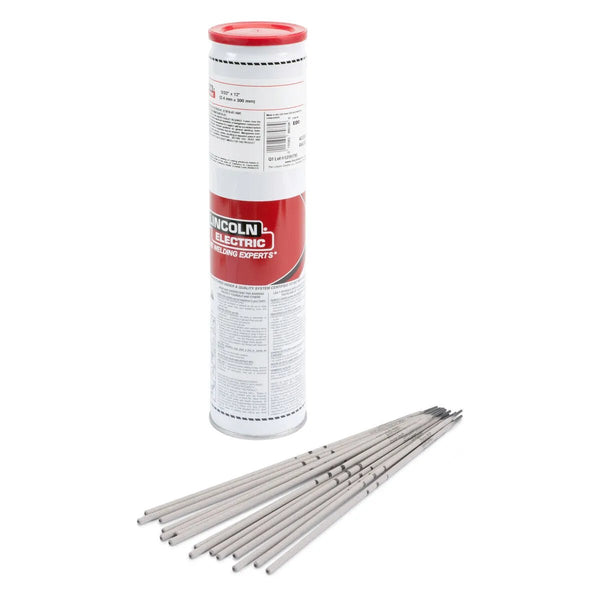

Lincoln ED033838 Excalibur 7018 MR N Stick SMAW Welding Rod, 1/8 14 in, 3 10 lb Easy Open Cans

$186.60
Mild Steel, Low Hydrogen • AWS E7018 H4R
AWS / Classification: E7018 H4R

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.




More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Lincoln ED033838 Excalibur 7018 MR N Stick SMAW Welding Rod, 1/8 14 in, 3 10 lb Easy Open Cans

Mild steel low hydrogen stick electrode designed for stress relief. “N” Designator - design modified to meet properties after 48 hours stress relief

Features

  • Q2 Lot® - Certificate showing actual deposit composition and actual mechanical properties available online
  • Impact toughness tested to -46°C (-50°F)
  • Capable of exceeding AWS minimum requirement of 480 MPa (70 ksi) tensile and 400 MPa (58 ksi) yield strength after 48 hours of stress relieving at 590-620°C (1100-1150°F)
  • Prior to using this material for ASME Boiler and Pressure Vessel Code Section III applications, please contact the Lincoln Electric Specials Department to receive a Certified Material Test Report (CMTR) which meets all requirements of NCA-3860

Lincoln ED033838 Excalibur 7018 MR N Stick SMAW Welding Rod, 1/8 14 in, 3 10 lb Easy Open Cans

Mild steel low hydrogen stick electrode designed for stress relief. “N” Designator - design modified to meet properties after 48 hours stress relief

Features

  • Q2 Lot® - Certificate showing actual deposit composition and actual mechanical properties available online
  • Impact toughness tested to -46°C (-50°F)
  • Capable of exceeding AWS minimum requirement of 480 MPa (70 ksi) tensile and 400 MPa (58 ksi) yield strength after 48 hours of stress relieving at 590-620°C (1100-1150°F)
  • Prior to using this material for ASME Boiler and Pressure Vessel Code Section III applications, please contact the Lincoln Electric Specials Department to receive a Certified Material Test Report (CMTR) which meets all requirements of NCA-3860

Includes
What's Included
  • (3) 10 lb Easy Open Can

Specifications
CONFORMANCE
CONFORMANCES SPECIFICATION CLASSIFICATION
AWS AWS A5.1 E7018-1 H4R
CWB AWS A5.1 E4918-H4R
MECHANICAL PROPERTIES
Classification Yield Strength @ 0.2% Offset, MPa (ksi) Tensile Strength, MPa (ksi) Elongation, % Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F) Charpy V-Notch, J (ft-lbs) @ -45°C (-50°F) Hardness Rockwell B
E7018-1 H4R Requirement 400 (58) min. 480 (70) min. 22 min. 27 (20) min.
Typical Result, As-welded 440-540 (64-78) 550-630 (79-91) 25-30 134-216 (99-159) 42-178 (31-131) 85-92
DEPOSIT COMPOSITION
Classification %C %Cr %Mn %Mo %Ni %P %S %Si %V %Mn+Ni+Cr+Mo+V Diffusible Hydrogen, mL/100g Weld Metal 1800F H2O - As received 1800F H2O - After 9 hrs at 80F/80%RH
E7018-1 H4R Requirement 0.15 max. 0.20 max. 1.60 max. 0.30 max. 0.30 max. 0.035 max. 0.035 max. 0.75 max. 0.08 max. 1.75 max. 4 max. 0.3 max. 0.4 max.
Typical Result 0.06-0.09 0.02-0.04 0.96-1.19 0.20-0.26 0.02-0.04 0.008-0.011 0.004-0.008 0.20-0.43 0.01 max. 1.27-1.48 1-2 0.1 0.1-0.3
TYPICAL OPERATING PROCEDURES
Diameter Polarity⁽¹⁾ Current, Amps
3/32 in (2.4 mm) DC+ 70-110
3/32 in (2.4 mm) AC 80-120
1/8 in (3.2 mm) DC+ 90-160
1/8 in (3.2 mm) AC 100-160
5/32 in (4.0 mm) DC+ 130-210
5/32 in (4.0 mm) AC 140-210
LECO Diameter 1/8 x 14 in (3.2 x 350 mm)
LECO Package (3) 10 lb Easy Open Can
Diameter (in) 1/8
Length (in) 14
