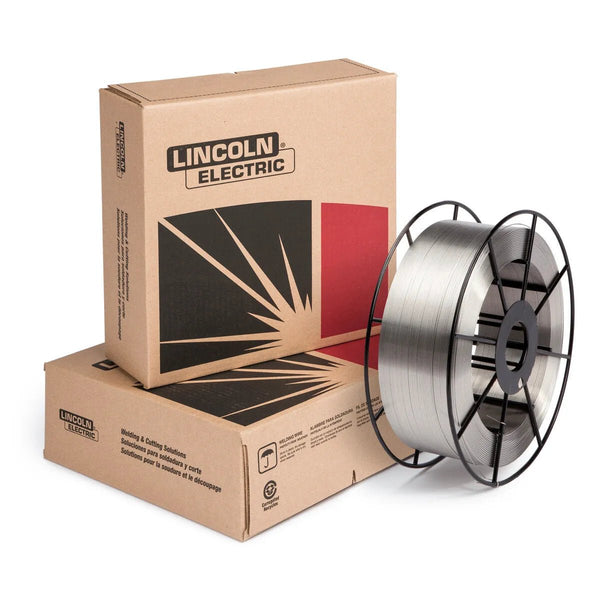

Lincoln ED033849 Blue Max 308L N MIG (GMAW) Stainless Steel Welding Wire, 0.045 in, 33 lb Spool

SKU: ED033849
$575.92 $661.65

Financing Options

•
As low as …/mo with.
•
Loading Affirm Estimate…
Lincoln Elite Dealer
Free Shipping
Lowest Price
"N" designation - Cobalt restriction of 0.05% max - Low cobalt levels typically required in nuclear industry
AWS / Classification: AWS A5.9: ER308, AWS A5.9: ER308L
Overview

Blue Max® MIG 0.045 inch welding wire is designed to perform exceptionally at high wire feed speeds

Features
  • Designed with low cobalt and silicon levels typically required in nuclear industry
  • Composition controlled to meet nuclear and power generation requirements
  • Prior to using this material for ASME Boiler and Pressure Vessel Code Section III applications, please contact the Lincoln Electric Specials Department to receive a Certified Material Test Report (CMTR) which meets all requirements of NCA-3860

Typical Applications

  • General Fabrication
  • Maintenance & Repair
  • Process Industries

Welding Positions

  • All

Shielding Gas

  • 98% Ar/ 2% O2

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.9ER308, ER308L
Classification %C%Co%Cr%Cu%Mn%Mo%N%Nb%Ni%P%S%SiFerrite Number (Delong ©)Ferrite Number (WRC-1992 ©)
ER308 Requirement 0.08 max.19.5 - 22.00.75 max.1.0 - 2.50.75 max.Info. OnlyInfo. Only9.0 - 11.00.03 max.0.03 max.0.30 - 0.65Info. OnlyInfo. Only
ER308L Requirement 0.03 max.19.5 - 22.00.75 max.1.0 - 2.50.75 max.Info. OnlyInfo. Only9.0 - 11.00.03 max.0.03 max.0.30 - 0.65Info. OnlyInfo. Only
Typical Result 0.020.0320.40.041.70.080.060.00 max.10.10.010.010.391112
Diameter Transfer ModeShielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsDeposition Rate, kg/hr (lb/hr)
0.035 in (0.9 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)3.0 (120)19-20550.9 (2.0)
0.035 in (0.9 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)4.6 (180)19-20851.4 (3.0)
0.035 in (0.9 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)5.8 (230)20-211051.8 (3.9)
0.035 in (0.9 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)7.6 (300)20-211252.3 (5.0)
0.035 in (0.9 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)8.9 (350)21-221402.7 (5.9)
0.035 in (0.9 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)10.2 (400)22-231603.1 (6.7)
0.045 in (1.1 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)2.5 (100)19-201001.1 (2.8)
0.045 in (1.1 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)3.2 (125)19-201201.5 (3.5)
0.045 in (1.1 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)3.8 (150)211351.7 (4.2)
0.045 in (1.1 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)4.4 (175)211402.0 (4.8)
0.045 in (1.1 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)5.6 (220)221702.6 (6.1)
0.045 in (1.1 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)6.4 (250)22-231752.9 (6.9)
0.045 in (1.1 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)7.0 (275)22-231853.2 (7.6)
0.035 in (0.9 mm) Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)10.2 (400)221803.1 (6.7)
0.035 in (0.9 mm) Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)10.8 (425)231903.3 (7.1)
0.035 in (0.9 mm) Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)11.4 (450)232003.5 (7.5)
0.035 in (0.9 mm) Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)12.1 (475)232103.7 (8.0)
0.045 in (1.1 mm) Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)6.1 (240)231952.8 (6.6)
0.045 in (1.1 mm) Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)6.6 (260)242303.0 (7.2)
0.045 in (1.1 mm) Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)7.6 (300)242403.5 (8.3)
0.045 in (1.1 mm) Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)8.3 (325)252503.8 (9.0)
0.045 in (1.1 mm) Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)9.1 (360)252604.2 (10.0)
Note
⁽¹⁾ To calculate ESO, subtract 1/4 in. (6.4 mm) from CTWD.
LECO Diameter 0.045 in (1.1 mm)
LECO Package 33 lb Spool
Diameter (in) 0.045
Downloads
Includes
  • (1) 33 lb Spool
