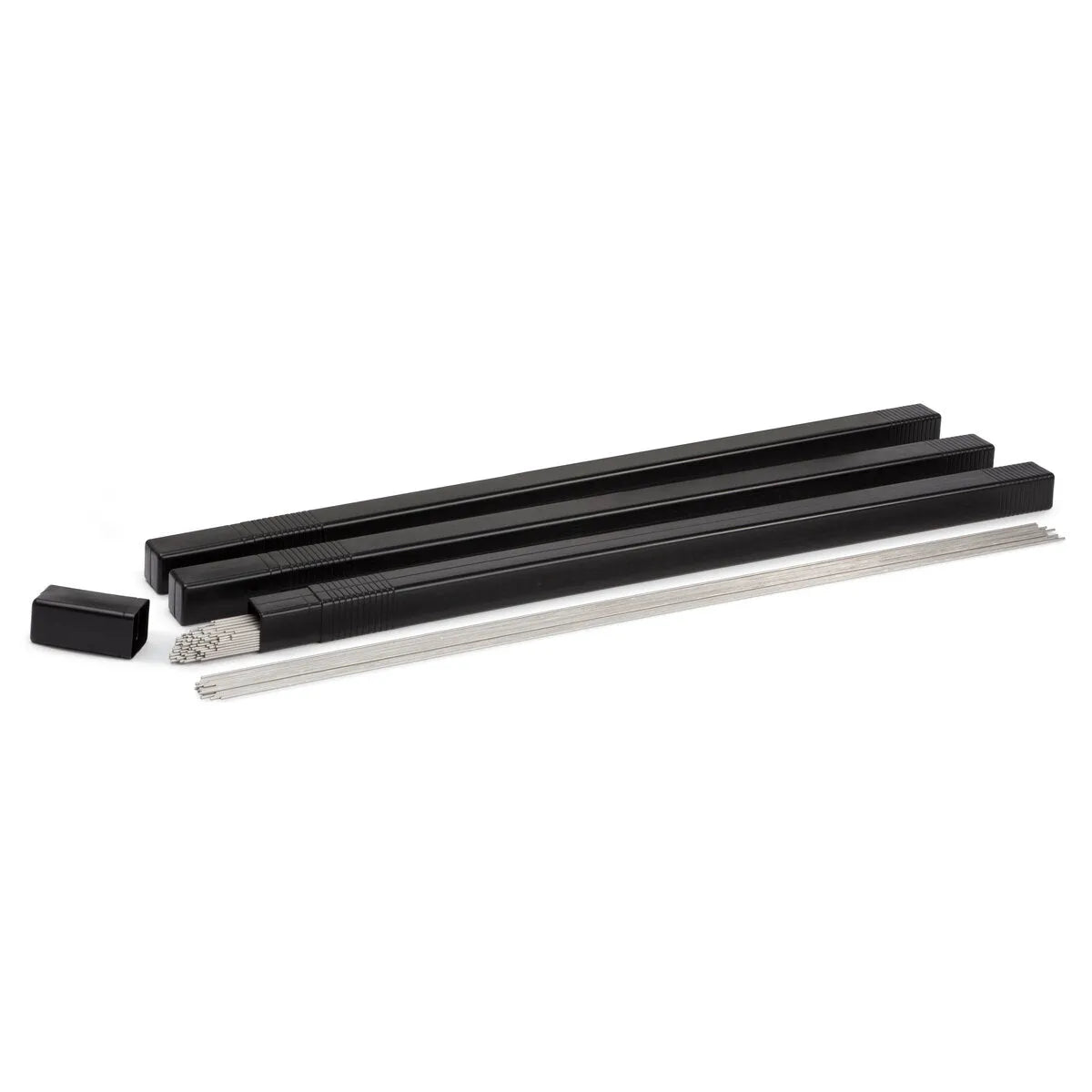

Lincoln ED033854 Lincoln ER308/308L N TIG GTAW Welding Rod, 3/32 in, 3 10 lb Tube

SKU: ED033854
$176.16
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
“N” Designator - cobalt restriction of 0.05% max
AWS / Classification: AWS A5.9: ER308, AWS A5.9: ER308L
Overview
Lincoln Electric — Lincoln ED033854 Lincoln ER308/308L N TIG GTAW Welding Rod, 3/32 in, 3 10 lb Tube

“N” Designator - cobalt restriction of 0.05% max.

Specifications
  • CONFORMANCES: SPECIFICATION, CLASSIFICATION
  • AWS: AWS A5.9, ER308, ER308L
  • Classification: Shielding Gas, Polarity, Elongation, %, Tensile Strength, MPa (ksi), Yield Strength @ 0.2% Offset, MPa (ksi)
  • Typical Result: 100% Ar, DC-, 46, 590 (86), 430 (62)
  • Classification: %Co, %C, %Cr, %Cu, %Mn, %Mo, %N, %Nb, %Ni, %P, %S, %Si, Ferrite Number (Delong ©), Ferrite Number (WRC-1992 ©)
  • ER308 Requirement: 0.08 max., 19.5 - 22.0, 0.75 max., 1.0 - 2.5, 0.75 max., Info. Only, Info. Only, 9.0 - 11.0, 0.03 max., 0.03 max., 0.30 - 0.65, Info. Only, Info. Only
  • ER308L Requirement: 0.03 max., 19.5 - 22.0, 0.75 max., 1.0 - 2.5, 0.75 max., Info. Only, Info. Only, 9.0 - 11.0, 0.03 max., 0.03 max., 0.30 - 0.65, Info. Only, Info. Only
  • Typical Result: 0.03, 0.01-0.02, 20.2, 0.05-0.09, 1.3-1.5, 0.06-0.16, 0.03, 0.00 max., 10.6, 0.01-0.02, 0.01 max., 0.42-0.47, 12, 11
  • LECO Diameter: 3/32 x 18 in (2.4 x 450 mm)
  • LECO Package: (3) 10 lb Tube
  • Diameter (in): 3/32
  • Length (in): 18
  • Part number: ED033854
  • UPC/EAN: 0015082540313
Applications

AWS ER308 Stainless TIG rod is used for GTAW (TIG) welding of stainless steel base metals. Match the filler alloy to the base material: ER308L for 304/308 stainless, ER309L for dissimilar welds (stainless to carbon steel), ER316L for marine and chemical service, ER317L for higher corrosion resistance than 316L. Using the wrong filler can reduce corrosion resistance at the weld zone.

Compatibility & sizing
  • Electrode type: TIG Rod, Stainless Steel
Why pros choose this

TIG (GTAW) filler rods give welders precise control over the weld pool because the filler is fed manually rather than carried in the arc. Choosing the correct alloy and diameter keeps weld chemistry, penetration, and bead appearance consistent across procedures.

Warranty

1 Year

From the manufacturer
Lincoln ED033854 Lincoln ER308/308L N TIG GTAW Welding Rod, 3/32 in, 3 10 lb Tube

Stainless steel welding rods designed to provide optimal bead appearance when TIG welding on a variety of materials

Features
  • “N” Designator - cobalt restriction of 0.05% max
  • Dual classification ensures the maximum carbon content is 0.03%
  • Prior to using this material for ASME Boiler and Pressure Vessel Code Section III applications, please contact the Lincoln Electric Specials Department to receive a Certified Material Test Report (CMTR) which meets all requirements of NCA-3860
  • Ink jet printing identification on entire length (every 4 inches) of electrode
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.9ER308, ER308L
Classification Shielding GasPolarityElongation, %Tensile Strength, MPa (ksi)Yield Strength @ 0.2% Offset, MPa (ksi)
Typical Result 100% ArDC-46590 (86)430 (62)
Classification %Co%C%Cr%Cu%Mn%Mo%N%Nb%Ni%P%S%SiFerrite Number (Delong ©)Ferrite Number (WRC-1992 ©)
ER308 Requirement 0.08 max.19.5 - 22.00.75 max.1.0 - 2.50.75 max.Info. OnlyInfo. Only9.0 - 11.00.03 max.0.03 max.0.30 - 0.65Info. OnlyInfo. Only
ER308L Requirement 0.03 max.19.5 - 22.00.75 max.1.0 - 2.50.75 max.Info. OnlyInfo. Only9.0 - 11.00.03 max.0.03 max.0.30 - 0.65Info. OnlyInfo. Only
Typical Result 0.030.01-0.0220.20.05-0.091.3-1.50.06-0.160.030.00 max.10.60.01-0.020.01 max.0.42-0.471211
LECO Diameter 3/32 x 18 in (2.4 x 450 mm)
LECO Package (3) 10 lb Tube
Diameter (in) 3/32
Length (in) 18
