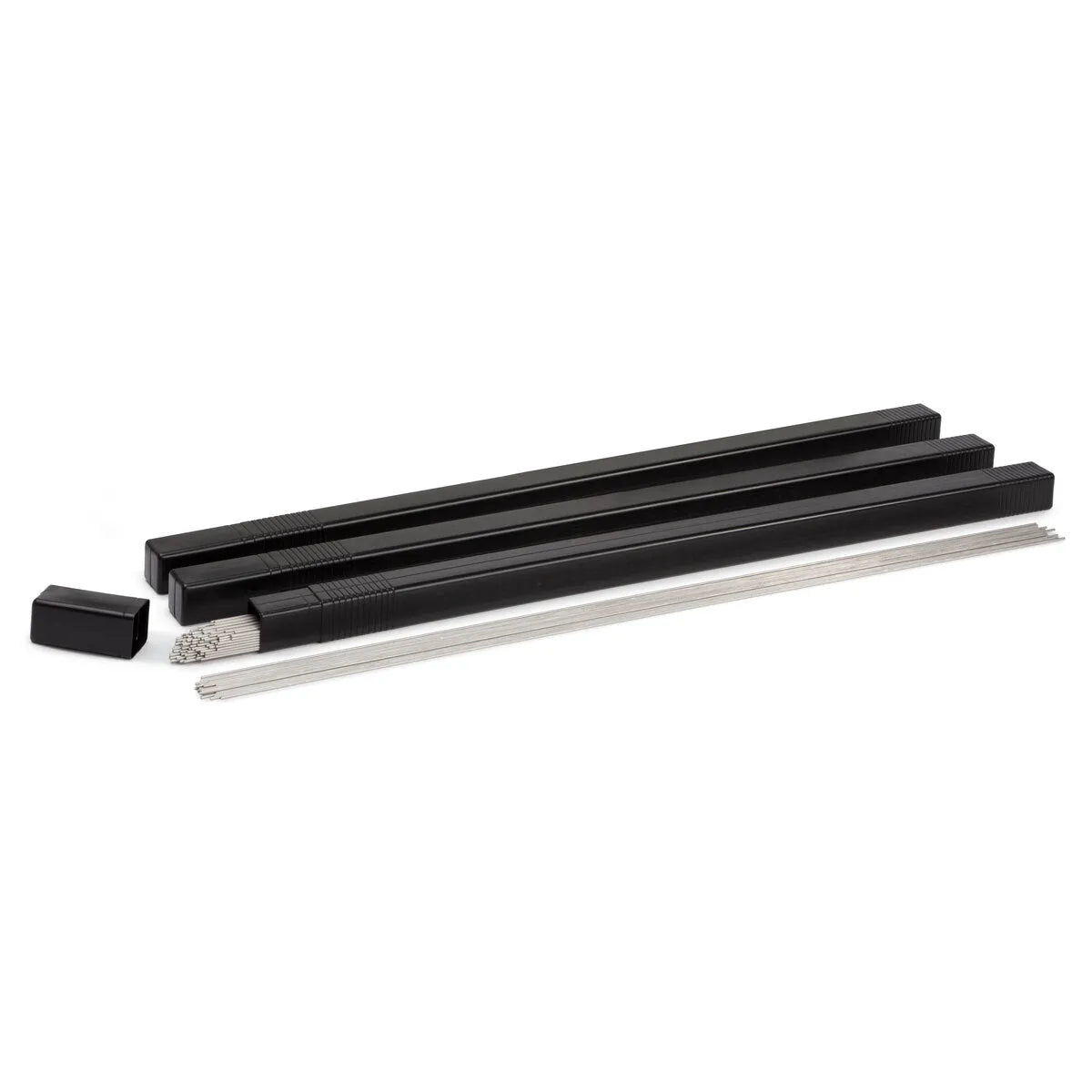

Lincoln ED033856 Lincoln ER309/309L N TIG GTAW Rod, 3/32 in, 10 lb Tube

SKU: ED033856
$718.24

Financing Options

•
As low as …/mo with.
•
Loading Affirm Estimate…
Lincoln Elite Dealer
Free Shipping
Lowest Price
“N” Designator - cobalt restriction of 0.05% max
AWS / Classification: AWS A5.9: ER309, AWS A5.9: ER309L
Overview
Lincoln Electric — Lincoln ED033856 Lincoln ER309/309L N TIG GTAW Rod, 3/32 in, 10 lb Tube

“N” Designator - cobalt restriction of 0.05% max.

Specifications
  • CONFORMANCES: SPECIFICATION, CLASSIFICATION
  • AWS: AWS A5.9, ER309, ER309L
  • Classification: %Co, %C, %Cr, %Cu, %Mn, %Mo, %N, %Nb, %Ni, %P, %S, %Si, Ferrite Number (WRC-1992 ©)
  • ER309 Requirement: 0.12 max., 23.0 - 25.0, 0.75 max., 1.0 - 2.5, 0.75 max., Info. Only, Info. Only, 12.0 - 14.0, 0.03 max., 0.03 max., 0.30 - 0.65
  • ER309L Requirement: 0.03 max., 23.0 - 25.0, 0.75 max., 1.0 - 2.5, 0.75 max., Info. Only, Info. Only, 12.0 - 14.0, 0.03 max., 0.03 max., 0.30 - 0.65, Info. Only
  • Typical Result: 0.04, 0.01-0.03, 23.4-23.6, 0.04-0.46, 1.4-1.8, 0.03-0.15, 0.08-0.16, 0.01 max., 13.0-14.0, 0.01-0.03, 0.01 max., 0.38-0.43, 3-11
  • LECO Diameter: 3/32 x 18 in (2.4 x 450 mm)
  • LECO Package: (3) 10 lb Tube
  • Diameter (in): 3/32
  • Length (in): 18
  • Part number: ED033856
  • UPC/EAN: 0015082540337
Applications

AWS ER309 Stainless TIG rod is used for GTAW (TIG) welding of stainless steel base metals. Match the filler alloy to the base material: ER308L for 304/308 stainless, ER309L for dissimilar welds (stainless to carbon steel), ER316L for marine and chemical service, ER317L for higher corrosion resistance than 316L. Using the wrong filler can reduce corrosion resistance at the weld zone.

Compatibility & sizing
  • Electrode type: TIG Rod, Stainless Steel
Why pros choose this

TIG (GTAW) filler rods give welders precise control over the weld pool because the filler is fed manually rather than carried in the arc. Choosing the correct alloy and diameter keeps weld chemistry, penetration, and bead appearance consistent across procedures.

Warranty

1 Year

From the manufacturer

Stainless steel welding rods designed to provide optimal bead appearance when TIG welding on a variety of materials

Note: Contact Customer Service to inquire or order a specific batch/lot.

Features

• “N” Designator cobalt restriction of 0.05% max
• 0.03% carbon content increases resistance to intergranular corrosion
• Ink jet printing identification on entire length of electrode
• Q2 Lot Certificate showing actual wire composition available online

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.9ER309, ER309L
Classification %Co%C%Cr%Cu%Mn%Mo%N%Nb%Ni%P%S%SiFerrite Number (WRC-1992 ©)
ER309 Requirement 0.12 max.23.0 - 25.00.75 max.1.0 - 2.50.75 max.Info. OnlyInfo. Only12.0 - 14.00.03 max.0.03 max.0.30 - 0.65
ER309L Requirement 0.03 max.23.0 - 25.00.75 max.1.0 - 2.50.75 max.Info. OnlyInfo. Only12.0 - 14.00.03 max.0.03 max.0.30 - 0.65Info. Only
Typical Result 0.040.01-0.0323.4-23.60.04-0.461.4-1.80.03-0.150.08-0.160.01 max.13.0-14.00.01-0.030.01 max.0.38-0.433-11
LECO Diameter 3/32 x 18 in (2.4 x 450 mm)
LECO Package (3) 10 lb Tube
Diameter (in) 3/32
Length (in) 18
