Lincoln Electric  |  SKU: ED033944

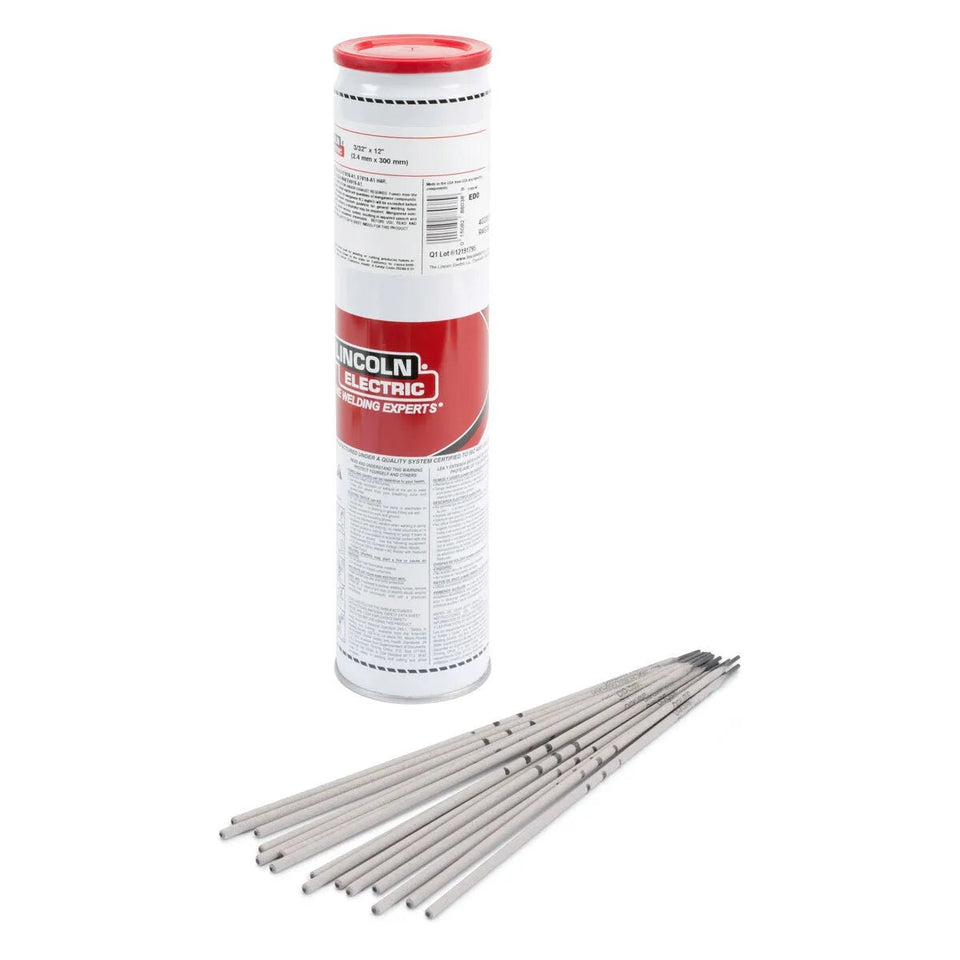

Lincoln ED033944 Excalibur 309/309L-16 N Stick SMAW Welding Rod, 1/8 14 in, 3 10 lb Easy Open Cans

$530.10
Designed for joining stainless steel to mind or low alloy steel
Warranty: 1 Year
AWS / Classification: AWS A5.4: E309-16, AWS A5.4: E309L-16

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.




More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Lincoln ED033944 Excalibur 309/309L-16 N Stick SMAW Welding Rod, 1/8 14 in, 3 10 lb Easy Open Cans

Excalibur stainless stick electrodes deliver exceptional puddle control, a smooth arc, and excellent slag release

Features

• Q2 Lot certificate showing actual deposit chemistry and calculated ferrite number (FN) available online
• Designed for joining stainless steel to mild or low alloy steel
• Flux coating provides smooth arc transfer and slag is self-peeling for easy removal
• Flux coating provides smooth arc transfer in all positions, except vertical down
• Controlled compositon for meet nuclear requirements

Lincoln ED033944 Excalibur 309/309L-16 N Stick SMAW Welding Rod, 1/8 14 in, 3 10 lb Easy Open Cans

Excalibur stainless stick electrodes deliver exceptional puddle control, a smooth arc, and excellent slag release

Features

• Q2 Lot certificate showing actual deposit chemistry and calculated ferrite number (FN) available online
• Designed for joining stainless steel to mild or low alloy steel
• Flux coating provides smooth arc transfer and slag is self-peeling for easy removal
• Flux coating provides smooth arc transfer in all positions, except vertical down
• Controlled compositon for meet nuclear requirements

Includes
What's Included
  • (3) 10 lb Easy Open Can

Specifications
CONFORMANCE
CONFORMANCES SPECIFICATION CLASSIFICATION
AWS AWS A5.4 E309-16, E309L-16
MECHANICAL PROPERTIES
Classification Yield Strength @ 0.2% Offset, MPa (ksi) Tensile Strength, MPa (ksi) Elongation, %
E309-16 Requirement 550 (80) min. 30 min.
E309L-16 Requirement 520 (75) min. 30 min.
Typical Result, As-welded 440-470 (64-68) 570-600 (83-88) 34-43
DEPOSIT COMPOSITION
Classification %C %Co %Cr %Cu %Mn %Mo %N %Ni %P %S %Si Ferrite Number (per AWS A4.2)
E309-16 Requirement 0.15 max. 22.0 - 25.0 0.75 max. 0.5 - 2.5 0.75 max. Info. Only 12.0 - 14.0 0.04 max. 0.03 max. 1.00 max. Info. Only
E309L-16 Requirement 0.04 max. 22.0 - 25.0 0.75 max. 0.5 - 2.5 0.75 max. Info. Only 12.0 - 14.0 0.04 max. 0.03 max. 1.00 max. Info. Only
Typical Result 0.03-0.04 0.04 23.5-24.1 0.04-0.09 1.5-1.8 0.08-0.19 0.07-0.10 13.2-13.4 0.02-0.03 0.01 max. 0.44-0.51 10-12
TYPICAL OPERATING PROCEDURES
Diameter Polarity⁽¹⁾ Current, Amps
3/32" (2.4 mm) DC+ 40-70
3/32" (2.4 mm) AC 40-70
1/8" (3.2 mm) DC+ 60-100
1/8" (3.2 mm) AC 60-100
5/32" (4.0 mm) DC+ 90-140
5/32" (4.0 mm) AC 90-140
LECO Diameter 1/8 x 14 in (3.2 x 350 mm)
LECO Package (3) 10 lb Easy Open Can
Diameter (in) 1/8
Length (in) 14

Lincoln ED033944 Excalibur 309/309L-16 N Stick SMAW Welding Rod, 1/8 14 in, 3 10 lb Easy Open Cans

Excalibur stainless stick electrodes deliver exceptional puddle control, a smooth arc, and excellent slag release

Features

• Q2 Lot certificate showing actual deposit chemistry and calculated ferrite number (FN) available online
• Designed for joining stainless steel to mild or low alloy steel
• Flux coating provides smooth arc transfer and slag is self-peeling for easy removal
• Flux coating provides smooth arc transfer in all positions, except vertical down
• Controlled compositon for meet nuclear requirements

Lincoln ED033944 Excalibur 309/309L-16 N Stick SMAW Welding Rod, 1/8 14 in, 3 10 lb Easy Open Cans

Excalibur stainless stick electrodes deliver exceptional puddle control, a smooth arc, and excellent slag release

Features

• Q2 Lot certificate showing actual deposit chemistry and calculated ferrite number (FN) available online
• Designed for joining stainless steel to mild or low alloy steel
• Flux coating provides smooth arc transfer and slag is self-peeling for easy removal
• Flux coating provides smooth arc transfer in all positions, except vertical down
• Controlled compositon for meet nuclear requirements
