What shielding gas should I use with the Lincoln ED033948 SuperArc Orbital L-52 N TIG GTAW Welding Wire, 0.035 in, 10 lb Spool?

TIG welding shielding gas selection: use pure argon (99.995% purity) for most TIG applications including steel, stainless, aluminum, and titanium. Helium additions (25–75% He/Ar mix) increase heat input and travel speed for heavy section work and aluminum welding where higher deposition is needed. Never use CO2 or mixed gases designed for MIG welding in TIG torches.

What is the AWS classification of the Lincoln ED033948 SuperArc Orbital L-52 N TIG GTAW Welding Wire, 0.035 in, 10 lb Spool?

The Lincoln ED033948 SuperArc Orbital L-52 N TIG GTAW Welding Wire, 0.035 in, 10 lb Spool carries AWS ER70S-2 classification, confirming it meets the American Welding Society's chemical composition and mechanical property requirements for that filler metal category. The AWS classification appears on the rod tube label and verifies the rod's chemistry for code-compliance welding procedures (WPS/PQR).

Lincoln Electric SuperArc ED033948 TIG Rod 0.035" – 10 lb

Q: What is the Lincoln ED033948 SuperArc Orbital L-52 N TIG GTAW Welding Wire, 0.035 in, 10 lb Spool used for?

TIG (GTAW) filler rods are used in the gas tungsten arc welding process, where the welder manually feeds the rod into the weld pool while maintaining the arc with the torch. TIG welding produces the highest quality, lowest spatter welds and is the process of choice for precision work on stainless, aluminum, titanium, and exotic alloys.

Q: What diameter is the Lincoln ED033948 SuperArc Orbital L-52 N TIG GTAW Welding Wire, 0.035 in, 10 lb Spool available in, and how do I choose the right size?

TIG filler rod diameter selection: match the rod diameter approximately to the base metal thickness. 1/16 in (1.6 mm) for thin sheet, 3/32 in (2.4 mm) for medium gauge, 1/8 in (3.2 mm) for heavy plate. Using a rod that is too large requires excessive heat to melt the rod and can cause overheating of thin base metal.

SKU: ED033948

$125.61 ~~$136.80~~

Lincoln Elite Dealer

Free Shipping over $250

Lowest Price

SuperArc® Orbital TIG L-52 N from Lincoln Electric is recommended for TIG welding on all grades of steel.

AWS / Classification: ER70S-2

Overview

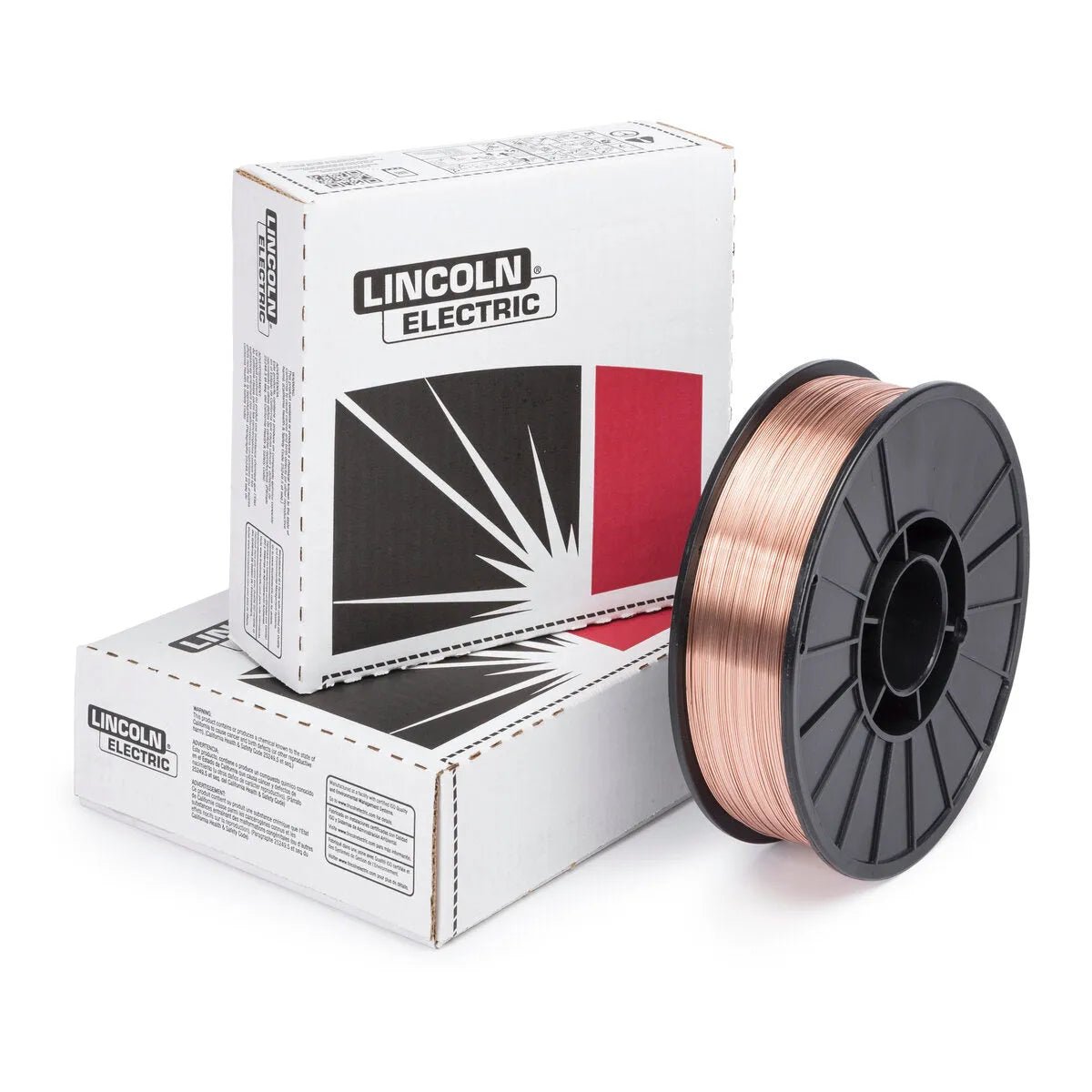

Lincoln ED033948 SuperArc Orbital L-52 N TIG GTAW Welding Wire, 0.035 in, 10 lb Spool

Recommended for TIG welding on all grades of steel.

Features

Q2 Lot® - certificate showing actual deposit composition and actual mechanical properties available online
A PLW product which has been treated to minimize weld defects that can be seen in the use of MIG wires for the automatic TIG process
Recommended for TIG welding on all grades of steel

Specifications

Feature	Value
CONFORMANCES	SPECIFICATIONCLASSIFICATION
AWS	AWS A5.18ER70S-2
Classification	Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %
ER70S-2 Requirement	100% ArDC-400 (58) min.480 (70) min.22 min.
Typical Result, As-welded	100% ArDC-600 (88)670 (97)29
Classification	%Al%C%Cr%Mn%Mo%Ni%P%S%Si%Ti%V%Zr%Total Cu
ER70S-2 Requirement	0.05 - 0.150.07 max.0.15 max.0.90 - 1.400.15 max.0.15 max.0.025 max.0.035 max.0.40 - 0.700.05 - 0.150.03 max.0.02 - 0.120.50 max.
Typical Result	0.060.050.101.110.020.050.0040.0050.530.080.010.020.16
LECO Diameter	0.035 in (0.9 mm)
LECO Package	10 lb Spool
Diameter (in)	0.035

Reviews

Q&A

Product Overview

Lincoln ED033948 SuperArc Orbital L-52 N TIG GTAW Welding Wire, 0.035 in, 10 lb Spool

Recommended for TIG welding on all grades of steel.

Features

Q2 Lot® - certificate showing actual deposit composition and actual mechanical properties available online
A PLW product which has been treated to minimize weld defects that can be seen in the use of MIG wires for the automatic TIG process
Recommended for TIG welding on all grades of steel

Specifications

Feature	Value
CONFORMANCES	SPECIFICATIONCLASSIFICATION
AWS	AWS A5.18ER70S-2
Classification	Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %
ER70S-2 Requirement	100% ArDC-400 (58) min.480 (70) min.22 min.
Typical Result, As-welded	100% ArDC-600 (88)670 (97)29
Classification	%Al%C%Cr%Mn%Mo%Ni%P%S%Si%Ti%V%Zr%Total Cu
ER70S-2 Requirement	0.05 - 0.150.07 max.0.15 max.0.90 - 1.400.15 max.0.15 max.0.025 max.0.035 max.0.40 - 0.700.05 - 0.150.03 max.0.02 - 0.120.50 max.
Typical Result	0.060.050.101.110.020.050.0040.0050.530.080.010.020.16
LECO Diameter	0.035 in (0.9 mm)
LECO Package	10 lb Spool
Diameter (in)	0.035
