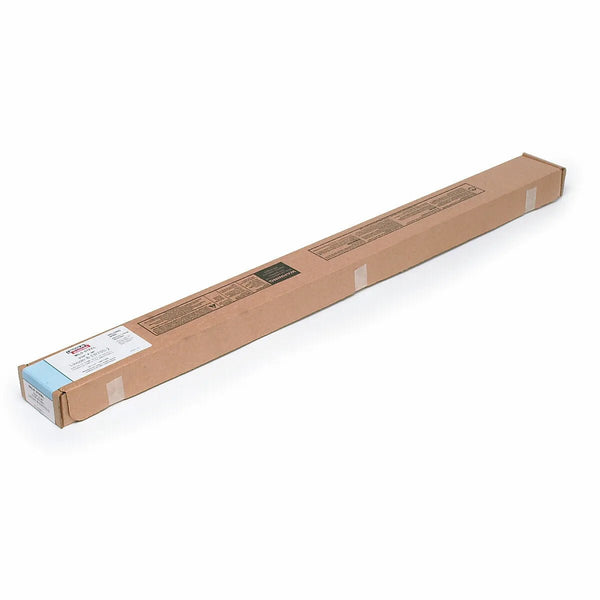

Lincoln Electric — Lincoln ED034097 Lincoln ER100S-1 TIG GTAW Welding Rod, 3/32 in, 10 lb Carton
Lincoln® ER100S-1 from Lincoln Electric is capable of producing welds with 690 MPa (100 ksi) tensile strength.
Specifications
- CONFORMANCES: SPECIFICATION, CLASSIFICATION
- AWS: AWS A5.28, ER100S-1
- Classification: Shielding Gas, Polarity, Yield Strength @ 0.2% Offset, MPa (ksi), Tensile Strength, MPa (ksi), Elongation, %, Charpy V-Notch, J (ft-lbs) @ -50°C (-60°F), Hardness Rockwell C
- ER100S-1 Requirement: I1, DC-, 610 (88) min., 690 (100) min., 16 min.
- Typical Result, As-welded: 100% Ar, DC-, 790 (114), 830 (120), 26, 202-355 (149-262), 26
- Classification: %Al, %C, %Cr, %Mn, %Mo, %Ni, %P, %S, %Si, %Ti, %V, %Zr, %Total Cu
- ER100S-1 Requirement: 0.10 max., 0.08 max., 0.30 max., 1.25 - 1.80, 0.25 - 0.55, 1.40 - 2.10, 0.010 max., 0.010 max., 0.20 - 0.55, 0.10 max., 0.05 max., 0.10 max., 0.25 max.
- Typical Result: 0.00 max., 0.05, 0.04, 1.67, 0.42-0.43, 1.88-1.93, 0.005, 0.005, 0.43-0.49, 0.04, 0.003 max., 0.00 max., 0.14
- LECO Diameter: 3/32 in (2.4 mm)
- LECO Package: 10 lb Carton
- Diameter (in): 3/32
- Length (in): 36
- Part number: ED034097
- UPC/EAN: 0015082547718
Compatibility & sizing
- Compatible families: Lincoln Filler Metals
- Electrode type: TIG Rod
- Available diameters: 3/32" Rod
Why pros choose this
TIG (GTAW) filler rods give welders precise control over the weld pool because the filler is fed manually rather than carried in the arc. Choosing the correct alloy and diameter keeps weld chemistry, penetration, and bead appearance consistent across procedures.
From the manufacturer
A low carbon, high manganese wire with nickel and molybdenum designed to weld high strength steels such as HY-80 and HSLA-80.
Features
- A low carbon, high manganese wire with nickel and molybdenum designed to weld high strength steels such as HY-80 and HSLA-80
- Delivers yield strength greater than 690 MPa (100 ksi)
- Capable of producing welds with 690 MPa (100 ksi) tensile strength
- Prior to using this material for ASME Boiler and Pressure Vessel Code Section III applications, please contact the Lincoln Electric Specials Department to receive a Certified Material Test Report (CMTR) which meets all requirements of NCA-3860
