Lincoln Electric ED034141 TIG Rod 0.035" – 2 lb

SKU: ED034141
$155.26 $176.64
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
"N" designation - Cobalt restriction of 0.05% max - Low cobalt levels typically required in nuclear industry
AWS / Classification: AWS A5.9: ER308, AWS A5.9: ER308L
Overview

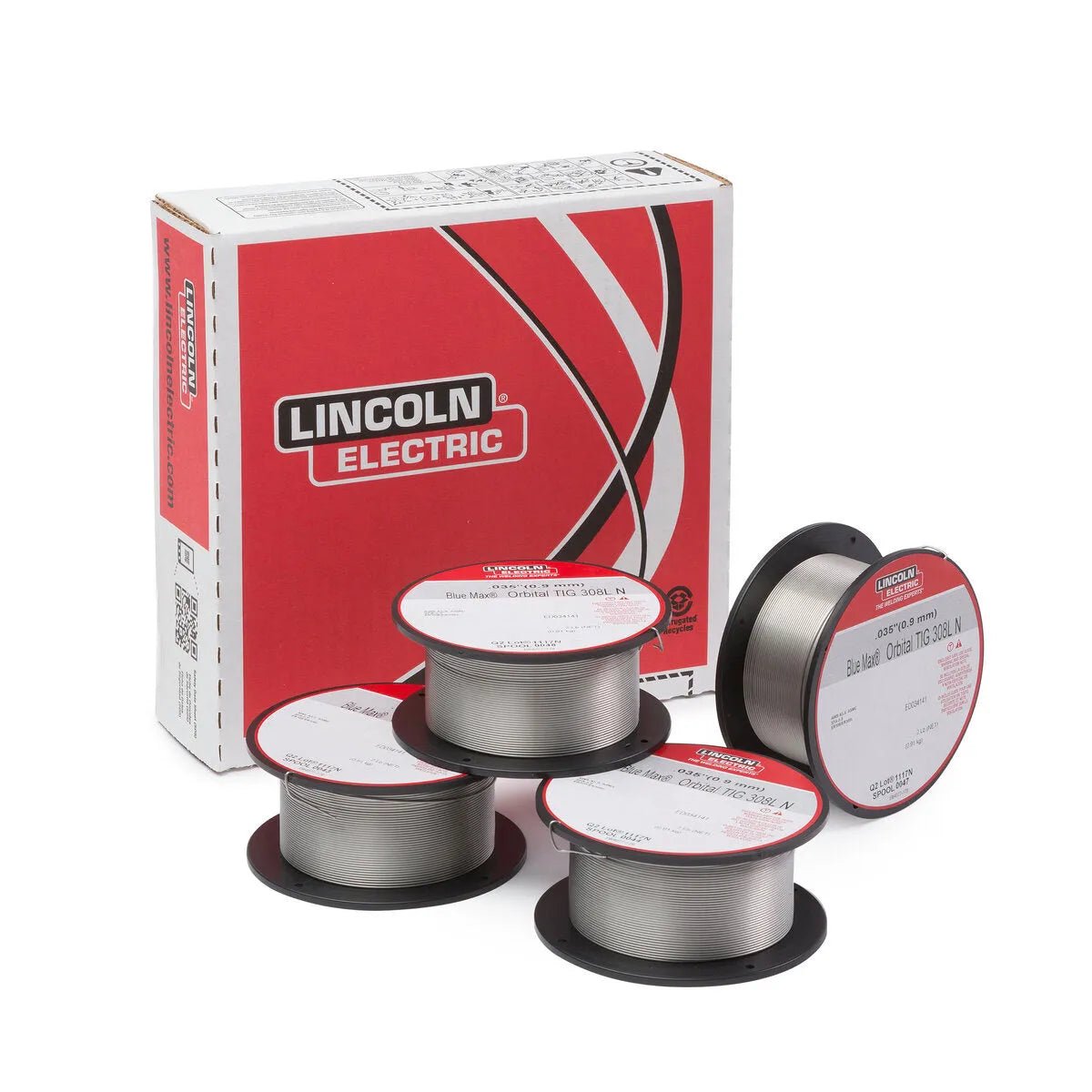

Lincoln Electric — Lincoln ED034141 Blue Max Orbital 308L N TIG GTAW Welding Wire, 0.035 in, 4 2 lb Spools

"N" designation - Cobalt restriction of 0.05% max - Low cobalt levels typically required in nuclear industry.

Specifications
  • CONFORMANCES: SPECIFICATION, CLASSIFICATION
  • AWS: AWS A5.9, ER308L
  • Classification: %Co, %C, %Cr, %Cu, %Mn, %Mo, %Ni, %P, %S, %Si
  • ER308L Requirement: 0.03 max., 19.5 - 22.0, 0.75 max., 1.0 - 2.5, 0.75 max., 9.0 - 11.0, 0.03 max., 0.03 max., 0.30 - 0.65
  • Typical Result: 0.040, 0.02, 20.2, 0.09, 1.3, 0.16, 10.4, 0.02, 0.00 max., 0.37
  • LECO Diameter: 0.035 in (0.9 mm)
  • LECO Package: (4) 2 lb Spool
  • Diameter (in): 0.035
  • Part number: ED034141
  • UPC/EAN: 0015082549811
Applications

AWS ER308 Stainless TIG rod is used for GTAW (TIG) welding of stainless steel base metals. Match the filler alloy to the base material: ER308L for 304/308 stainless, ER309L for dissimilar welds (stainless to carbon steel), ER316L for marine and chemical service, ER317L for higher corrosion resistance than 316L. Using the wrong filler can reduce corrosion resistance at the weld zone.

Compatibility & sizing
  • Electrode type: TIG Rod
Why pros choose this

TIG (GTAW) filler rods give welders precise control over the weld pool because the filler is fed manually rather than carried in the arc. Choosing the correct alloy and diameter keeps weld chemistry, penetration, and bead appearance consistent across procedures.

Warranty

1 Year

From the manufacturer

Blue Max Orbital TIG® is designed for orbital applications with no surface treatment

Features
  • "N" designation - Cobalt restriction of 0.05% max - Low cobalt levels typically required in nuclear industry
  • Ultra clean wire for orbital applications
  • Meets the low Si & Co levels typically required in the nuclear industry
  • Overall composition is controlled to meet nuclear and power generation requirements
  • Q2 Lot® - Certificate showing actual wire composition and calculated ferrite number (FN) available online

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.9ER308L
Classification %Co%C%Cr%Cu%Mn%Mo%Ni%P%S%Si
ER308L Requirement 0.03 max.19.5 - 22.00.75 max.1.0 - 2.50.75 max.9.0 - 11.00.03 max.0.03 max.0.30 - 0.65
Typical Result 0.0400.0220.20.091.30.1610.40.020.00 max.0.37
LECO Diameter 0.035 in (0.9 mm)
LECO Package (4) 2 lb Spool
Diameter (in) 0.035
