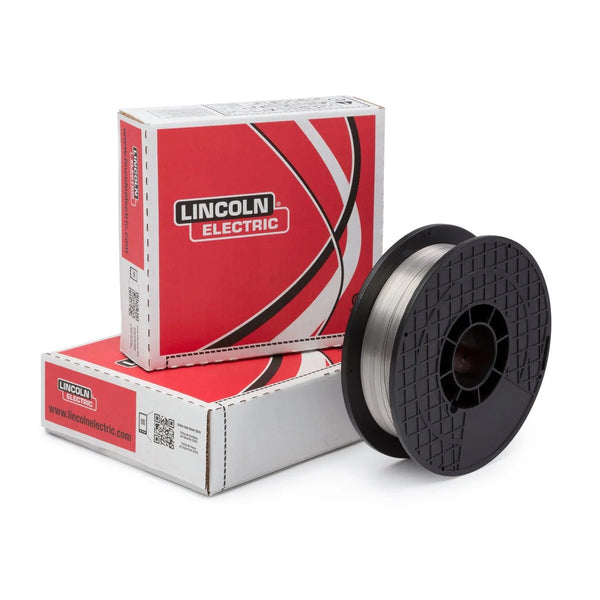

Lincoln Electric — Lincoln ED034155 Blue Max Orbital TIG 308/308L GTAW Welding Wire, .035in 10lb Box
BLUE MAX® ORBITAL TIG 308/308L offers ultra-clean wire for orbital 304 stainless TIG applications.
Specifications
- CONFORMANCES: SPECIFICATION, CLASSIFICATION
- AWS: AWS A5.9, ER308L
- Classification: %C, %Cr, %Cu, %Mn, %Mo, %N, %Nb, %Ni, %P, %S, %Si, Ferrite Number (Delong ©), Ferrite Number (WRC-1992 ©)
- ER308L Requirement: 0.03 max., 19.5 - 22.0, 0.75 max., 1.0 - 2.5, 0.75 max., 9.0 - 11.0, 0.03 max., 0.03 max., 0.30 - 0.65
- Typical Result: 0.02, 20.2, 0.25, 1.9, 0.06, 0.05, 0.00 max., 10.1, 0.02, 0.003 max., 0.34, 10, 10
- LECO Diameter: 0.035 in (0.9 mm)
- LECO Package: 10 lb (4.5 kg) PLW Plastic Spool
- Diameter (in): 0.035
- Part number: ED034155
- UPC/EAN: 0015082549880
Compatibility & sizing
- Compatible families: Blue Max
- Electrode type: 308/309
- Available diameters: 0.035
Why pros choose this
TIG (GTAW) filler rods give welders precise control over the weld pool because the filler is fed manually rather than carried in the arc. Choosing the correct alloy and diameter keeps weld chemistry, penetration, and bead appearance consistent across procedures.
Warranty
1 Year
From the manufacturer
BLUE MAX® ORBITAL TIG 308/308L 0.035 inch welding wire is designed for porosity free orbital welding on 304 grade stainless base materials
Features
- Q2 Lot® - Certified Material Test Report showing actual wire composition, Country of Origin and calculated ferrite number (FN) of each lot is available online in the Certificate Center
- Ultra-clean wire for porosity free welds
- Batch Managed Inventory
