Lincoln Electric ED034159 TIG Rod 0.035" – 10 lb

SKU: ED034159
$236.53 $239.00
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
BLUE MAX® ORBITAL TIG 309/309L offers ultra-clean wire for orbital welding when joining mild steel to stainless steel TIG applications
AWS / Classification: AWS A5.9: ER309, AWS A5.9: ER309L
Overview

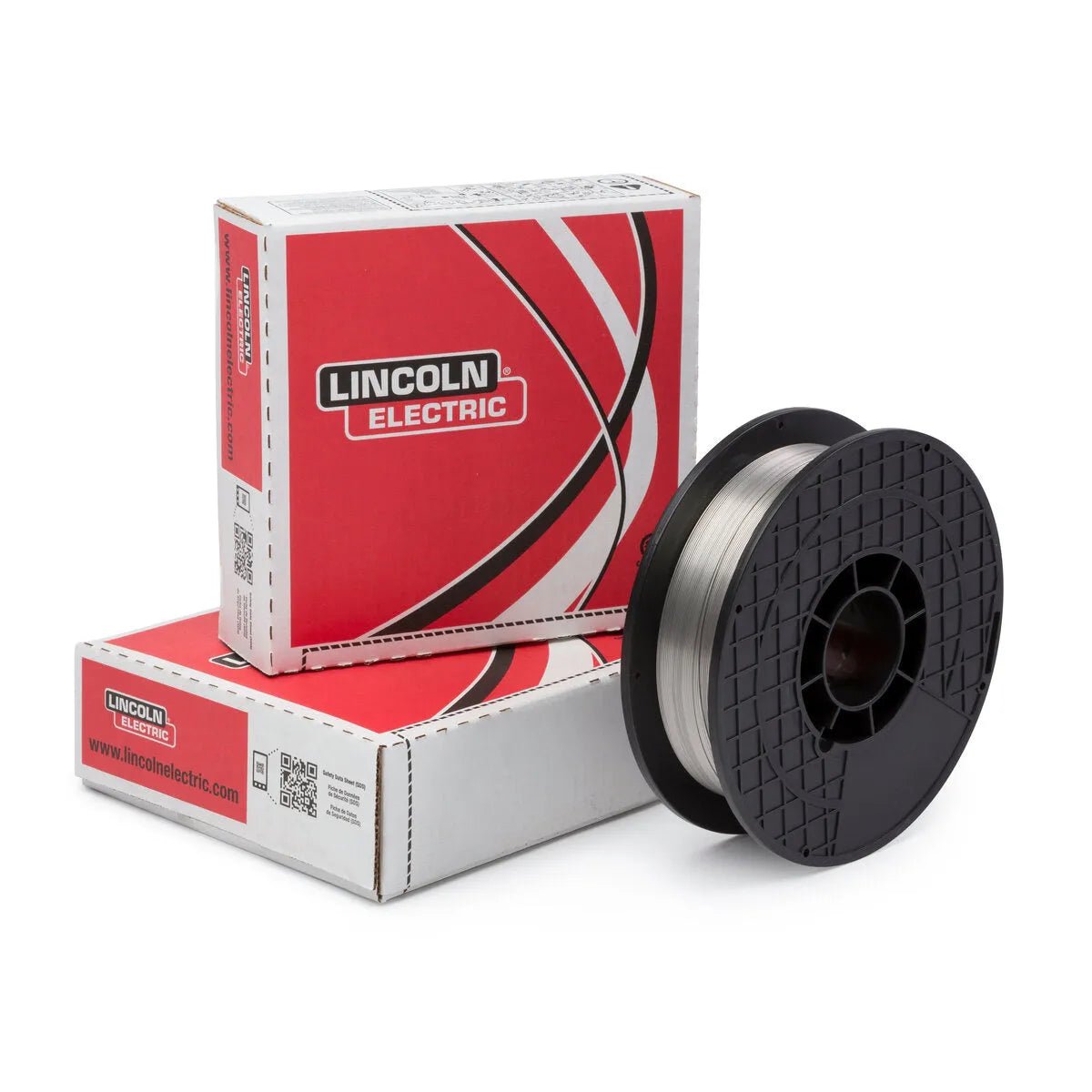

Lincoln Electric — Lincoln ED034159 Blue Max Orbital 309L TIG GMAW-C Welding Wire, 0.035 in, 10 lb Spool

BLUE MAX® ORBITAL TIG 309/309L offers ultra-clean wire for orbital welding when joining mild steel to stainless steel TIG applications.

Specifications
  • CONFORMANCES: SPECIFICATION, CLASSIFICATION
  • AWS: AWS A5.9, ER309L
  • Classification: %C, %Cr, %Cu, %Mn, %Mo, %N, %Nb, %Ni, %P, %S, %Si, Ferrite Number (Delong ©), Ferrite Number (WRC-1992 ©)
  • ER309L Requirement: 0.03 max., 23.0 - 25.0, 0.75 max., 1.0 - 2.5, 0.75 max., Info. Only, Info. Only, 12.0 - 14.0, 0.03 max., 0.03 max., 0.30 - 0.65, Info. Only, Info. Only
  • Typical Result: 0.01, 23.5, 0.05, 1.6, 0.04, 0.05, 0.00 max., 13.6, 0.02, 0.01, 0.35, 13, 11
  • LECO Diameter: 0.035 in (0.9 mm)
  • LECO Package: 10 lb Spool
  • Diameter (in): 0.035
  • Part number: ED034159
  • UPC/EAN: 0015082549903
Applications

AWS ER309 Stainless TIG rod is used for GTAW (TIG) welding of stainless steel base metals. Match the filler alloy to the base material: ER308L for 304/308 stainless, ER309L for dissimilar welds (stainless to carbon steel), ER316L for marine and chemical service, ER317L for higher corrosion resistance than 316L. Using the wrong filler can reduce corrosion resistance at the weld zone.

Compatibility & sizing
  • Electrode type: Metal-Core
Why pros choose this

TIG (GTAW) filler rods give welders precise control over the weld pool because the filler is fed manually rather than carried in the arc. Choosing the correct alloy and diameter keeps weld chemistry, penetration, and bead appearance consistent across procedures.

Warranty

1 Year

From the manufacturer

BLUE MAX® ORBITAL TIG 309/309L offers ultra-clean wire for porosity free welds ideal for process piping, thermal energy and petroleum processing application.

Features
  • Q2 Lot® - Certified Material Test Report showing actual wire composition, Country of Origin and calculated ferrite number (FN) of each lot is available online in the Certificate Center
  • Ultra-clean wire for porosity free welds
  • Batch Managed Inventory

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.9 ER309L
Classification %C%Cr%Cu%Mn%Mo%N%Nb%Ni%P%S%SiFerrite Number (Delong ©)Ferrite Number (WRC-1992 ©)
ER309L Requirement 0.03 max.23.0 - 25.00.75 max.1.0 - 2.50.75 max.Info. OnlyInfo. Only12.0 - 14.00.03 max.0.03 max.0.30 - 0.65Info. OnlyInfo. Only
Typical Result 0.0123.50.051.60.040.050.00 max.13.60.020.010.351311
LECO Diameter 0.035 in (0.9 mm)
LECO Package 10 lb Spool
Diameter (in) 0.035
