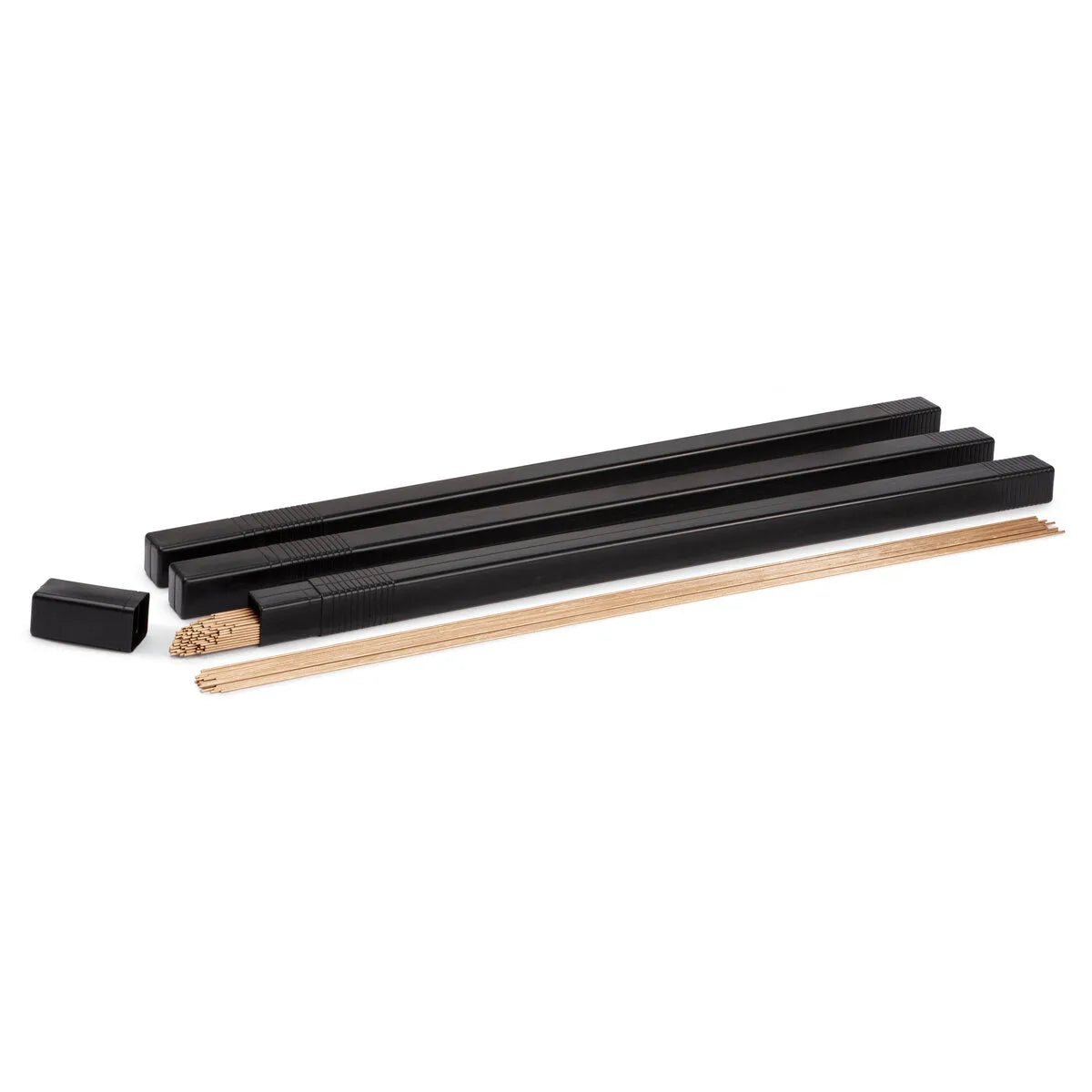

Lincoln Electric ED034220 TIG Rod 3/32" – 10 lb
Lincoln ER80S-D2 TIG rods from Lincoln contains 0.50% molybdenum for strength after stress valves. Typical applications include ASTM A182, A217, A234 and A335 high temperature service pipe, fittings, flanges and valves and ASTM A336 pressure vessel forgings.
• Capable of producing weld deposits with 550 MPa (80 ksi) tensile strength
• Contains 0.50% molybdenum for strength after stress valves
| Feature | Value |
|---|---|
| CONFORMANCES | SPECIFICATIONCLASSIFICATION |
| AWS | AWS A5.28ER80S-D2, ER90S-D2 |
| Classification | Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F) |
| ER80S-D2 Requirement | 100% ArDC-470 (68) min.550 (80) min.17 min.27 (20) min. |
| ER90S-D2 Requirement | I1DC-540 (78) min.620 (90) min.17 min.27 (20) min. |
| Typical Result, As-welded | 100% ArDC-650 (94)720-830 (105-120)2473-254 (54-187) |
| Classification | %C%Mn%Mo%Ni%P%S%Si%Total Cu |
| ER80S-D2 Requirement | 0.07 - 0.121.60 - 2.100.40 - 0.600.15 max.0.025 max.0.025 max.0.50 - 0.800.50 max. |
| ER90S-D2 Requirement | 0.07 - 0.121.60 - 2.100.40 - 0.600.15 max.0.025 max.0.025 max.0.50 - 0.800.50 max. |
| Typical Result | 0.08-0.111.68-1.880.41-0.530.020.0070.0070.58-0.650.10 |
| LECO Diameter | 3/32 in (2.4 mm) |
| LECO Package | (3) 10 lb Tube |
| Diameter (in) | 3/32 |
| Length (in) | 36 |
