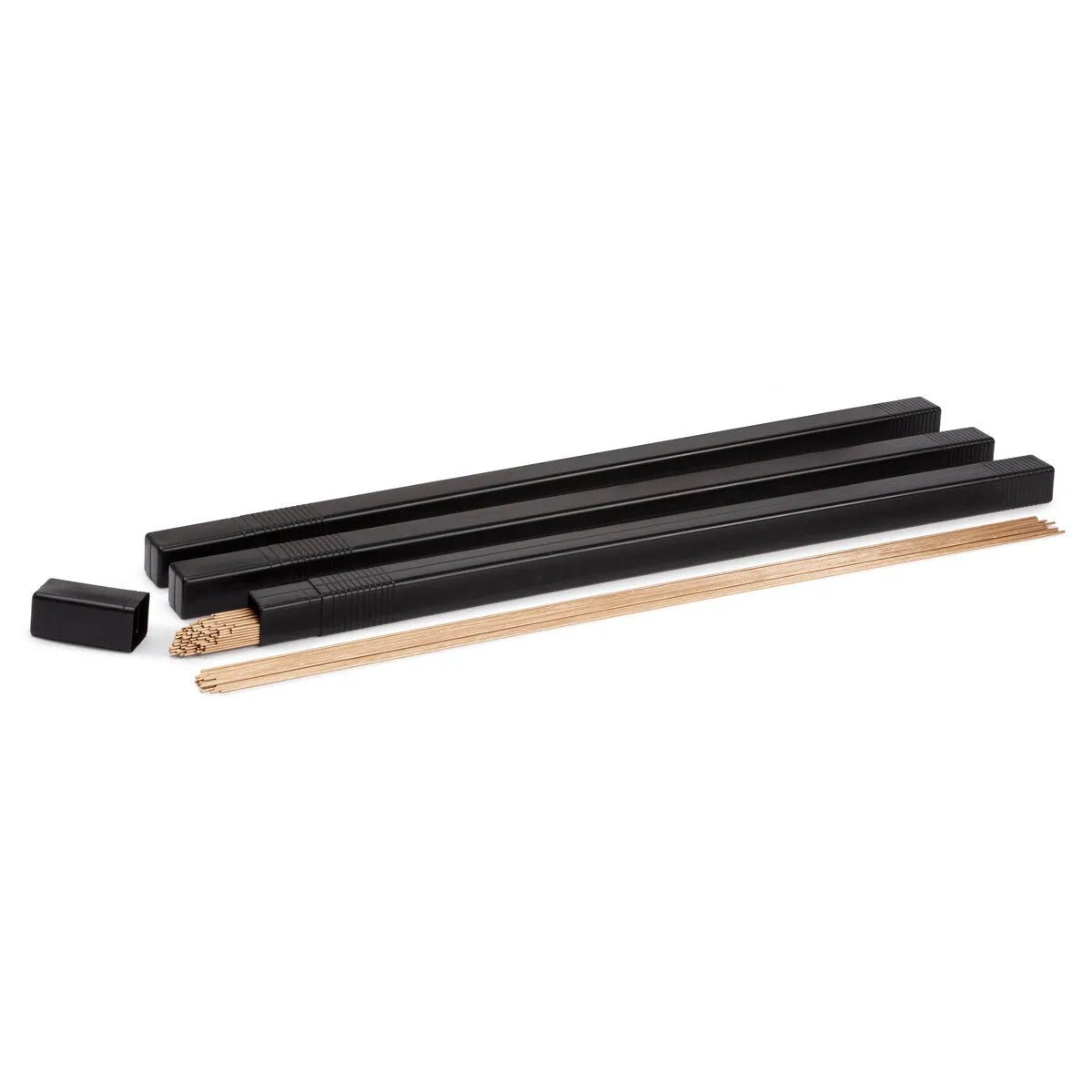

Lincoln ED034330 Lincoln ER70S-2 TIG GTAW Welding Rod, 1/8 in, 3 10 lb Tubes

SKU: ED034330
$216.36 $264.60
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
Lincoln® ER70S-2 from Lincoln Electric is triple deoxidized wire containing zirconium, titanium, and aluminum in addition to silicon and manganese.
AWS / Classification: ER70S-2
Overview
Lincoln Electric — Lincoln ED034330 Lincoln ER70S-2 TIG GTAW Welding Rod, 1/8 in, 3 10 lb Tubes

Lincoln® ER70S-2 from Lincoln Electric is triple deoxidized wire containing zirconium, titanium, and aluminum in addition to silicon and manganese.

Specifications
  • CONFORMANCES: SPECIFICATION, CLASSIFICATION
  • AWS: AWS A5.18, ER70S-2
  • CWB: CSA W48, ER49S-2
  • Classification: Shielding Gas, Polarity, Yield Strength @ 0.2% Offset, MPa (ksi), Tensile Strength, MPa (ksi), Elongation, %, Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)
  • ER70S-2 Requirement: 100% Ar, DC-, 400 (58) min., 480 (70) min., 22 min., 27 (20) min.
  • Typical Result, As-welded: 100% Ar, DC-, 530 (77), 590-660 (85-96), 31, 35-465 (26-343)
  • Classification: %Al, %C, %Cr, %Mn, %Mo, %Ni, %P, %S, %Si, %Ti, %V, %Zr, %Total Cu
  • ER70S-2 Requirement: 0.05 - 0.15, 0.07 max., 0.15 max., 0.90 - 1.40, 0.15 max., 0.15 max., 0.025 max., 0.035 max., 0.40 - 0.70, 0.05 - 0.15, 0.03 max., 0.02 - 0.12, 0.50 max.
  • Typical Result: 0.05-0.10, 0.05, 0.05, 1.14, 0.02 max., 0.04, 0.005, 0.003 max., 0.50-0.70, 0.07-0.13, 0.01 max., 0.02-0.08, 0.16
  • LECO Diameter: 1/8 in (3.2 mm)
  • LECO Package: (3) 10 lb Tube
  • Diameter (in): 1/8
  • Length (in): 36
  • Part number: ED034330
  • UPC/EAN: 0015082559896
Compatibility & sizing
  • Compatible families: Lincoln Filler Metals
  • Electrode type: TIG Rod
  • Available diameters: 1/8" Rod
Why pros choose this

TIG (GTAW) filler rods give welders precise control over the weld pool because the filler is fed manually rather than carried in the arc. Choosing the correct alloy and diameter keeps weld chemistry, penetration, and bead appearance consistent across procedures.

From the manufacturer

Triple deoxidized wire containing zirconium, titanium, and aluminum in addition to silicon and manganese. Produces x-ray quality welds over most surface conditions. Recommended for TIG welding on all grades of mild steel.

Features
  • Contains zirconium, titanium, and aluminum in addition to silicon and manganese
  • Produces x-ray quality welds over most surface conditions
  • Recommended for TIG welding on all grades of steel
  • Ink jet printing identification on entire length of electrode
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.18 ER70S-2
CWB CSA W48 ER49S-2
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)
ER70S-2 Requirement 100% ArDC-400 (58) min.480 (70) min.22 min.27 (20) min.
Typical Result, As-welded 100% ArDC-530 (77)590-660 (85-96)3135-465 (26-343)
Classification %Al%C%Cr%Mn%Mo%Ni%P%S%Si%Ti%V%Zr%Total Cu
ER70S-2 Requirement 0.05 - 0.150.07 max.0.15 max.0.90 - 1.400.15 max.0.15 max.0.025 max.0.035 max.0.40 - 0.700.05 - 0.150.03 max.0.02 - 0.120.50 max.
Typical Result 0.05-0.100.050.051.140.02 max.0.040.0050.003 max.0.50-0.700.07-0.130.01 max.0.02-0.080.16
LECO Diameter 1/8 in (3.2 mm)
LECO Package (3) 10 lb Tube
Diameter (in) 1/8
Length (in) 36
