Lincoln Electric ED034332 TIG Rod 3/32" – 50 lb

SKU: ED034332
$364.80 $446.00
Lincoln Elite Dealer
Free Shipping
Lowest Price
Lincoln® ER70S-2 from Lincoln Electric is triple deoxidized wire containing zirconium, titanium, and aluminum in addition to silicon and manganese.
AWS / Classification: ER70S-2
Overview

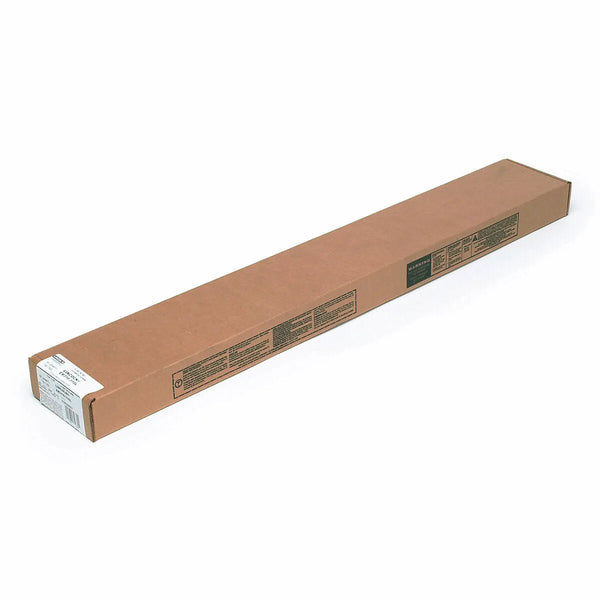

Lincoln Electric — Lincoln ED034332 Lincoln ER70S-2 TIG GTAW Welding Rod, 3/32 in, 50 lb Carton

Lincoln® ER70S-2 from Lincoln Electric is triple deoxidized wire containing zirconium, titanium, and aluminum in addition to silicon and manganese.

Specifications
  • CONFORMANCES: SPECIFICATION, CLASSIFICATION
  • AWS: AWS A5.18, ER70S-2
  • CWB: CSA W48, ER49S-2
  • Classification: Shielding Gas, Polarity, Yield Strength @ 0.2% Offset, MPa (ksi), Tensile Strength, MPa (ksi), Elongation, %, Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)
  • ER70S-2 Requirement: 100% Ar, DC-, 400 (58) min., 480 (70) min., 22 min., 27 (20) min.
  • Typical Result, As-welded: 100% Ar, DC-, 530 (77), 590-660 (85-96), 31, 35-465 (26-343)
  • Classification: %Al, %C, %Cr, %Mn, %Mo, %Ni, %P, %S, %Si, %Ti, %V, %Zr, %Total Cu
  • ER70S-2 Requirement: 0.05 - 0.15, 0.07 max., 0.15 max., 0.90 - 1.40, 0.15 max., 0.15 max., 0.025 max., 0.035 max., 0.40 - 0.70, 0.05 - 0.15, 0.03 max., 0.02 - 0.12, 0.50 max.
  • Typical Result: 0.05-0.10, 0.05, 0.05, 1.14, 0.02 max., 0.04, 0.005, 0.003 max., 0.50-0.70, 0.07-0.13, 0.01 max., 0.02-0.08, 0.16
  • LECO Diameter: 3/32 in (2.4 mm)
  • LECO Package: 50 lb Carton
  • Diameter (in): 3/32
  • Length (in): 36
  • Part number: ED034332
  • UPC/EAN: 0015082560021
Applications

TIG (GTAW) filler rods are used in the gas tungsten arc welding process, where the welder manually feeds the rod into the weld pool while maintaining the arc with the torch. TIG welding produces the highest quality, lowest spatter welds and is the process of choice for precision work on stainless, aluminum, titanium, and exotic alloys.

Compatibility & sizing
  • Electrode type: TIG Rod
Why pros choose this

TIG (GTAW) filler rods give welders precise control over the weld pool because the filler is fed manually rather than carried in the arc. Choosing the correct alloy and diameter keeps weld chemistry, penetration, and bead appearance consistent across procedures.

From the manufacturer

Triple deoxidized wire containing zirconium, titanium, and aluminum in addition to silicon and manganese. Produces x-ray quality welds over most surface conditions. Recommended for TIG welding on all grades of mild steel.

Features
  • Contains zirconium, titanium, and aluminum in addition to silicon and manganese
  • Produces x-ray quality welds over most surface conditions
  • Recommended for TIG welding on all grades of steel
  • Ink jet printing identification on entire length of electrode
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.18 ER70S-2
CWB CSA W48 ER49S-2
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)
ER70S-2 Requirement 100% ArDC-400 (58) min.480 (70) min.22 min.27 (20) min.
Typical Result, As-welded 100% ArDC-530 (77)590-660 (85-96)3135-465 (26-343)
Classification %Al%C%Cr%Mn%Mo%Ni%P%S%Si%Ti%V%Zr%Total Cu
ER70S-2 Requirement 0.05 - 0.150.07 max.0.15 max.0.90 - 1.400.15 max.0.15 max.0.025 max.0.035 max.0.40 - 0.700.05 - 0.150.03 max.0.02 - 0.120.50 max.
Typical Result 0.05-0.100.050.051.140.02 max.0.040.0050.003 max.0.50-0.700.07-0.130.01 max.0.02-0.080.16
LECO Diameter 3/32 in (2.4 mm)
LECO Package 50 lb Carton
Diameter (in) 3/32
Length (in) 36
