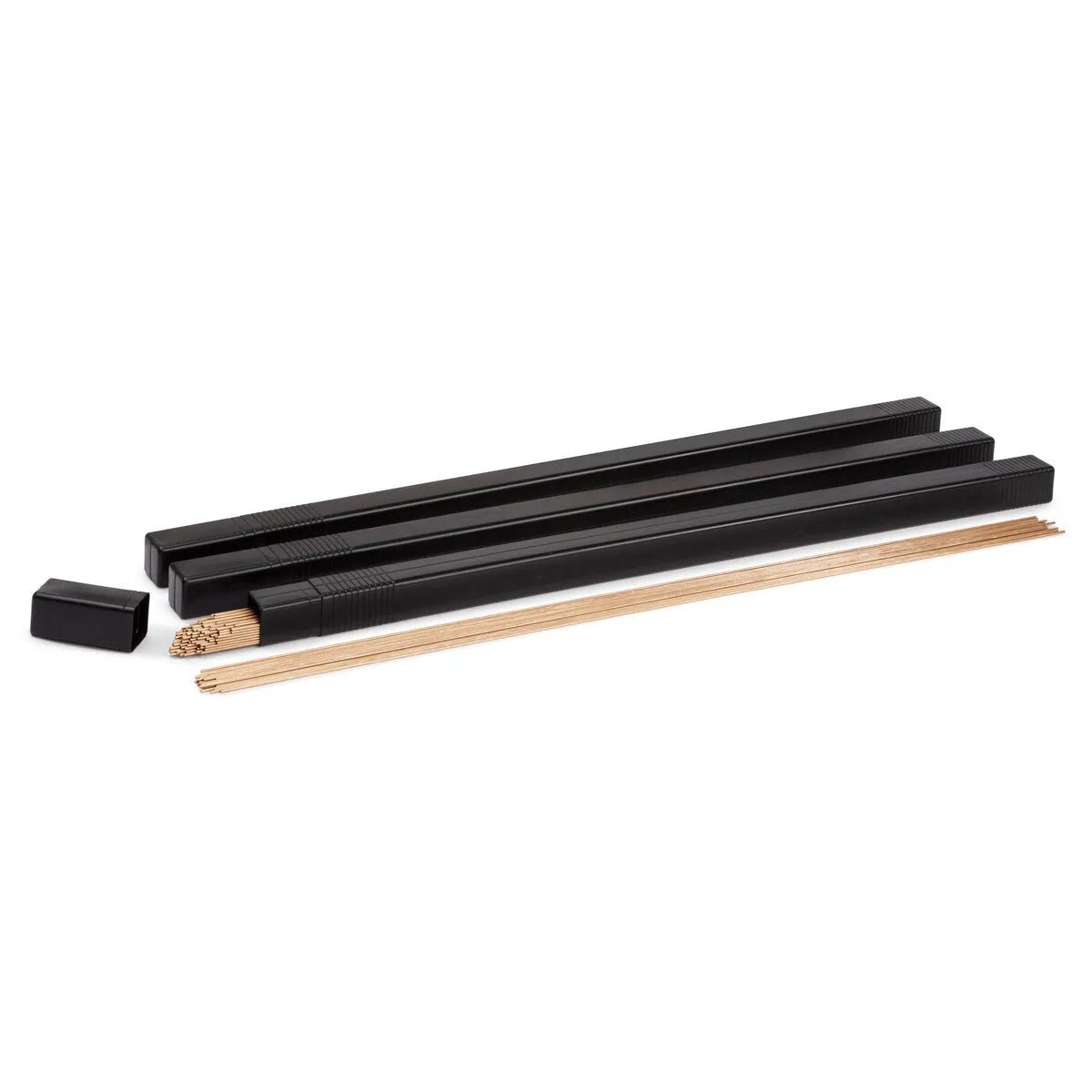

Lincoln ED034347 Lincoln ER80S-Ni1 TIG GTAW Welding Rod, 3/32 in, 3 10 lb Tubes

SKU: ED034347
$267.90 $304.20
Lincoln Elite Dealer
Free Shipping
Lowest Price
Lincoln® ER80S-Ni1 from Lincoln Electric has a high toughness at low temperatures with a nominal 1% Ni or less.
AWS / Classification: ER80S-Ni1
Overview
Lincoln ED034347 Lincoln ER80S-Ni1 TIG GTAW Welding Rod, 3/32 in, 3 10 lb Tubes

Has a high toughness at low temperatures with a nominal 1% Ni or less.

Features

• Capable of producing weld deposits with 550 MPa (80 ksi) tensile strengthHigh toughness at low temperatures with a nominal 1% Ni or less

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.28ER80S-Ni1
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -45°C (-50°F)
ER80S-Ni1 Requirement 100% ArDC-470 (68) min.550 (80) min.24 min.27 (20) min.
Typical Result, As-welded 100% ArDC-500 (72)570-600 (82-87)32312-367 (230-270)
Classification %C%Cr%Mn%Mo%Ni%P%S%Si%V%Total Cu
ER80S-Ni1 Requirement 0.12 max.0.15 max.1.25 max.0.35 max.0.80 - 1.100.025 max.0.025 max.0.40 - 0.800.05 max.0.35 max.
Typical Result 0.080.031.000.00 max.0.87-1.000.0070.0050.52-0.630.000 max.0.12
LECO Diameter 3/32 in (2.4 mm)
LECO Package (3) 10 lb Tube
Diameter (in) 3/32
Length (in) 36
