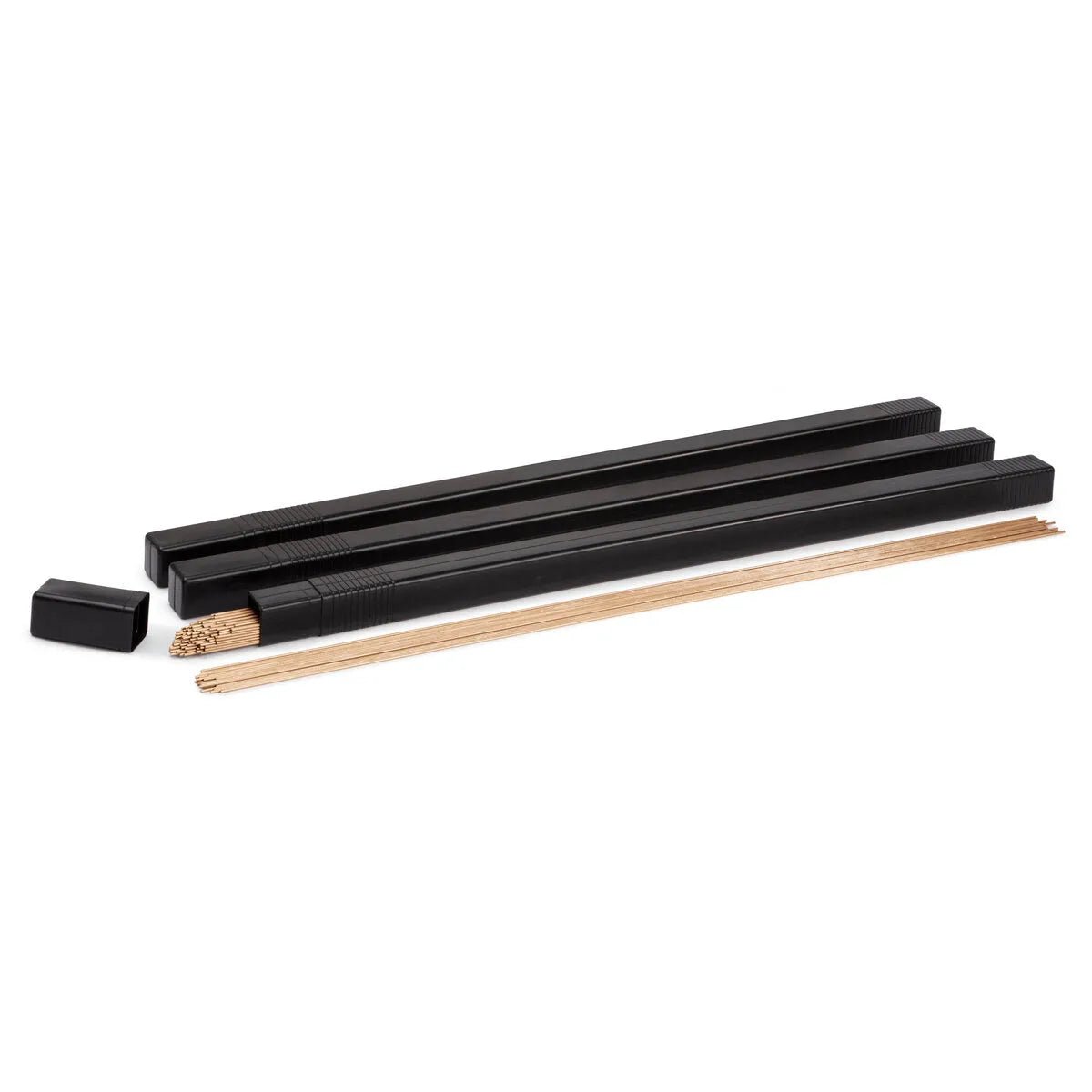

Lincoln Electric — Lincoln ED034349 Lincoln LA-84 GTAW TIG GTAW Welding Rod, 1/16 in, 3 10 lb Tubes
Lincoln® LA-84 from Lincoln Electric is a nickel-bearing electrode with 1/2% molybdenum.
Specifications
- CONFORMANCES: SPECIFICATION, CLASSIFICATION
- AWS: AWS A5.28, ER90S-G
- Classification: Shielding Gas, Polarity, Yield Strength @ 0.2% Offset, MPa (ksi), Tensile Strength, MPa (ksi), Elongation, %, Charpy V-Notch, J (ft-lbs) @ -50°C (-60°F)
- ER90S-G Requirement: Not Specified, DC+, 620 (90) min.
- Typical Result, As-welded: 100% Ar, DC-, 690 (100), 790 (115), 24, 293-317 (216-234)
- Classification: %C, %Cr, %Mn, %Mo, %Ni, %P, %S, %Si, %Total Cu
- Typical Result: 0.10-0.13, 0.03, 1.77-1.84, 0.50, 0.85, 0.008-0.011, 0.003-0.004, 0.23-0.24, 0.09-0.17
- LECO Diameter: 1/16 in (1.6 mm)
- LECO Package: (3) 10 lb Tube
- Diameter (in): 1/16
- Length (in): 36
- Part number: ED034349
- UPC/EAN: 0015082560427
Compatibility & sizing
- Compatible families: Lincoln Filler Metals
- Electrode type: TIG Rod
- Available diameters: 1/16" Rod
Why pros choose this
TIG (GTAW) filler rods give welders precise control over the weld pool because the filler is fed manually rather than carried in the arc. Choosing the correct alloy and diameter keeps weld chemistry, penetration, and bead appearance consistent across procedures.
From the manufacturer
A nickel-bearing electrode with 1/2% molybdenum.
Features
- A nickel-bearing electrode with 1/2% molybdenum
- Available as Batch Managed Inventory
- Can be used for higher strength weldments where impact properties exceeding 27 J (20 ft•lbf) at -62°C (-80°F) are required
- Suitable for use where consumables with less than 1% Ni are required
- Ink jet printing identification on entire length of electrode
