Lincoln Electric ED034359 TIG Rod 1/8" – 10 lb

SKU: ED034359
$284.44 $307.50
Lincoln Elite Dealer
Free Shipping
Lowest Price
B3 alloyed steel designed for prolonged elevated temperature service up to 600°C (1112°F) and corrosion resistance
AWS / Classification: ER90S-B3
Overview

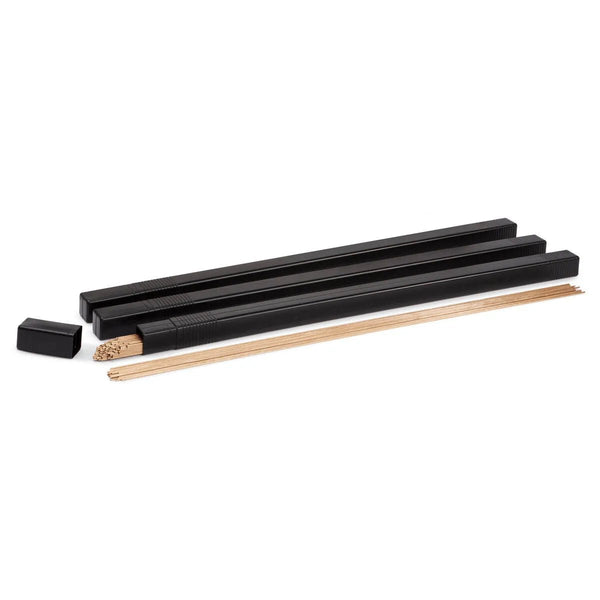

Lincoln ED034359 Lincoln ER90S-B3 TIG GMAW Welding Rod, 1/8 in, 3 10 lb Tubes

Low Alloy Steel • AWS A5.28 ER90S-B3

Features
  • B3 alloyed steel: 2.25% chromium, 1% molybdenum alloyed steel consumable designed for prolonged elevated temperature service up to 600°C (1112°F)
  • Excellent corrosion resistance in refineries to sulfur bearing crude oil at 250°C-450°C (482°F-842°F)
  • Q2 Lot®- Certificate showing actual deposit chemistry and mechanical properties available online
  • Weld metal chemistry is low in impurity elements allowing it to respect the X Factor (<15ppm) and J-factor (<120ppm)

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.28 ER90S-B3
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Hardness Rockwell B
ER90S-B3 Requirement 100% ArDC-540 (78) min.620 (90) min.17 min.Info. Only
Typical Result, 1 hour @ 690°C (1275°F) 100% ArDC-560-600 (81-86)690-720 (100-105)23-2696
Classification %C%Cr%Mn%Mo%Ni%P%S%Si%Total Cu
ER90S-B3 Requirement 0.07 - 0.122.30 - 2.700.40 - 0.700.90 - 1.200.20 max.0.025 max.0.025 max.0.40 - 0.700.35 max.
Typical Result 0.09-0.102.42-2.470.52-0.581.01-1.050.03-0.040.003-0.0080.003-0.0080.50-0.540.05-0.08
LECO Diameter 1/8 in (3.2 mm)
LECO Package (3) 10 lb Tube
Diameter (in) 1/8
Length (in) 36
