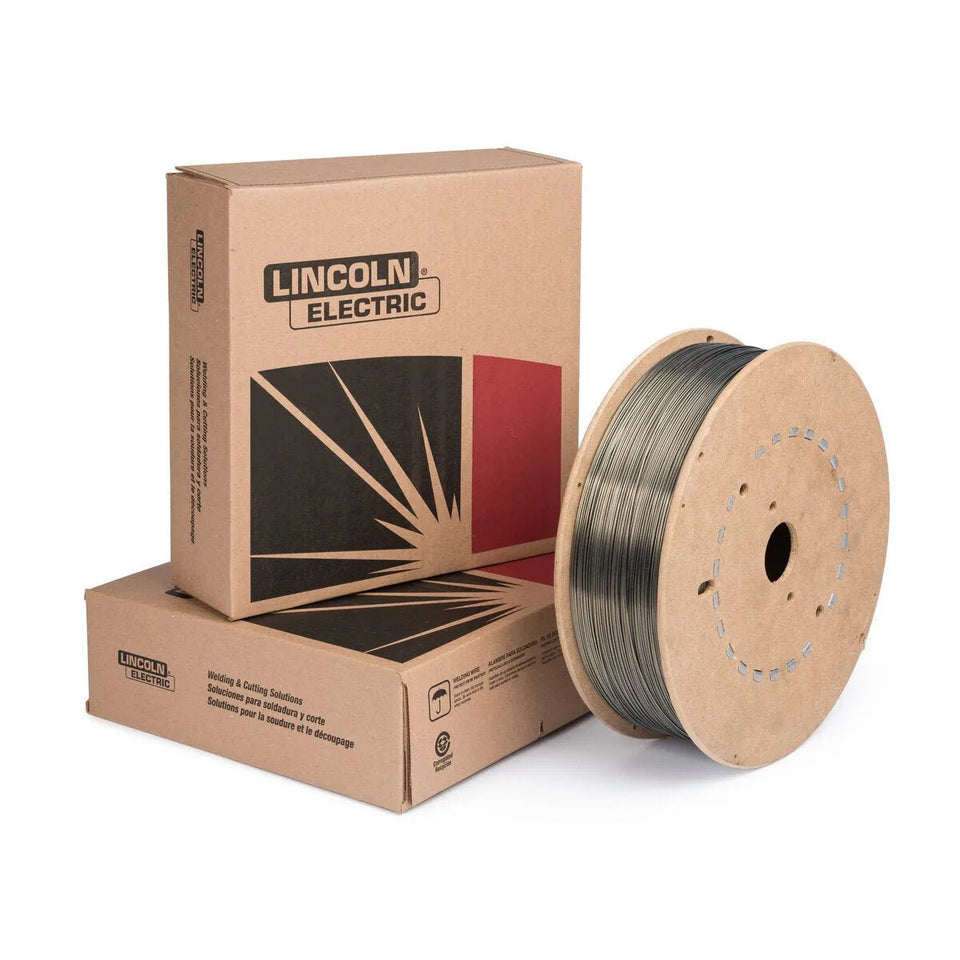

Lincoln ED034419 UltraCore 712C Flux-Cored FCAW-G Welding Wire, 1/16 in, 33 lb Spool

SKU: ED034419
$166.72 $204.60
Financing / Leasing Available

Welding Equipment & Industrial Supply Financing

WeldingMart has partnered with Clicklease to offer fast, flexible financing for welding equipment and industrial supplies. Get the equipment you need with affordable monthly payments tailored to your budget.

Whether you're purchasing a new MIG welder, TIG welder, engine-driven welder, or welding accessories, our financing solutions help you equip your shop without large upfront costs. We offer lease-to-own options on trusted brands like Lincoln Electric, Miller Electric, and more.

Apply in minutes and get a decision in seconds:

  • No hard credit check
  • No lengthy paperwork
  • Fast approvals

Why Choose Lease-to-Own Welding Equipment?

Lease-to-own financing gives you the flexibility to grow your business while preserving cash flow.

Key benefits include:

  • Low upfront cost – Start using equipment without a large initial investment
  • Flexible terms – Choose payment plans that fit your budget
  • Access to latest technology – Stay competitive with modern welding equipment
  • Ownership options – Buy the equipment, upgrade, or return it at the end of the lease

You also have the option to purchase your equipment early, including within the first 12 months.


Tax Advantages

In many cases, lease payments for business-use equipment may be tax-deductible. This can reduce your overall cost and free up capital for additional tools, supplies, or labor.

(Consult your tax advisor for details.)


Apply in Minutes

Financing is available 24/7, so you can apply whenever it’s convenient.

  • Application takes about 4 minutes
  • Instant decision in most cases
  • Immediate access to eDocs
  • Order your equipment right away

If approved for more than your initial request, you can easily adjust your financing to include additional items.


Need Help?

Have questions about financing or lease-to-own options?

Contact the WeldingMart team — we’re here to help you find the right solution for your business. 877-532-9353.



UltraCore® 712C from Lincoln Electric is a versatile E71T-12 choice with consistently high impact toughness values.
AWS / Classification: E71T-12C-JH8, E71T1-C1A4-CS2-H8

Overview

Lincoln UltraCore 712C 1/16 welding wire is for tank and shipbuilding applications using straight CO2, UltraCore® 712C is a versatile E71T-12 choice with consistently high impact toughness values — even with a notch offset of 2.5mm from weld centerline.

Features
  • Capable of producing weld deposits with impact toughness exceeding 27 J (20 ft·lbf) at -40°C (-40°F)
  • Designed for welding with 100% CO2 shielding gas
  • Premium arc performance and bead appearance
  • ProTech® foil bag packaging

Typical Applications

  • Bridge fabrication
  • Pressure vessels
  • Shipbuilding
  • Offshore
  • ASME related applications

Welding Positions

  • All

Shielding Gas

  • 100% CO2
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.20 E71T-12C-JH8, E71T-1C-JH8, E71T-9C-JH8
AWS AWS A5.36 E71T1-C1A4-CS2-H8
ABS ABS - Part 2 3YSA H10
CWB CSA W48 E491T1-C1A4-CS1-H8 (E491T-9J-H8)
DNV-GL DNV - 2.9 III YMS H10
LR LR - Chapter 11 3YS H10
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -40°C (-40°F)
E71T-12C-JH8 Requirement 100% CO2DC+400 (58) min.480-620 (70-90)22 min.27 (20) min.
E71T-1C-JH8 Requirement 100% CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
E71T-9C-JH8 Requirement 100% CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
E71T1-C1A4-CS2-H8 Requirement 100% CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
Typical Result, As-welded 100% CO2DC+520 (75)570-620 (82-89)2230-138 (22-102)
Classification Shielding GasPolarity%B%C%Cr%Cu%Mn%Ni%P%S%Si%VDiffusible Hydrogen, mL/100g Weld Metal
E71T-12C-JH8 Requirement 100% CO2DC+0.12 max.1.60 max.0.03 max.0.03 max.0.90 max.8.0 max.
E71T-1C-JH8 Requirement 100% CO2DC+0.12 max.1.75 max.0.03 max.0.03 max.0.90 max.8.0 max.
E71T-9C-JH8 Requirement 100% CO2DC+0.12 max.1.75 max.0.03 max.0.03 max.0.90 max.8.0 max.
E71T1-C1A4-CS2-H8 Requirement 100% CO2DC+0.12 max.1.60 max.0.030 max.0.030 max.0.90 max.8 max.
Typical Result 100% CO2DC+0.0036-0.0060.03-0.050.06 max.0.06 max.1.28-1.470.36-0.430.020 max.0.012 max.0.34-0.430.03 max.2-5.1
Diameter Shielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)Deposition Rate, kg/hr (lb/hr)Efficiency, %
0.045 in (1.1 mm) As-Welded with 100% CO2DC+25 (1)4.4 (175)24-291151.8 (3.9)1.5 (3.4)85-88
0.045 in (1.1 mm) As-Welded with 100% CO2DC+25 (1)6.4 (250)25-301402.5 (5.6)2.2 (4.8)85-88
0.045 in (1.1 mm) As-Welded with 100% CO2DC+25 (1)7.6 (300)26-311553.1 (6.8)2.6 (5.8)85-88
0.045 in (1.1 mm) As-Welded with 100% CO2DC+25 (1)8.9 (350)26-311703.6 (7.9)3.1 (6.8)85-88
0.045 in (1.1 mm) As-Welded with 100% CO2DC+25 (1)10.2 (400)26-311854.1 (9.0)3.5 (7.8)85-88
0.045 in (1.1 mm) As-Welded with 100% CO2DC+25 (1)11.4 (450)27-322004.6 (10.1)4.0 (8.8)85-88
0.045 in (1.1 mm) As-Welded with 100% CO2DC+25 (1)12.7 (500)27-322155.1 (11.3)4.4 (9.8)85-88
0.045 in (1.1 mm) As-Welded with 100% CO2DC+25 (1)14.0 (550)28-332305.6 (12.4)4.9 (10.8)85-88
0.045 in (1.1 mm) As-Welded with 100% CO2DC+25 (1)15.2 (600)28-332456.1 (13.5)5.3 (11.7)85-88
0.052 in (1.3 mm) As-Welded with 100% CO2DC+25 (1)3.8 (150)24-291402.1 (4.7)1.7 (3.8)85-88
0.052 in (1.3 mm) As-Welded with 100% CO2DC+25 (1)5.1 (200)25-301602.9 (6.3)2.4 (5.2)85-88
0.052 in (1.3 mm) As-Welded with 100% CO2DC+25 (1)6.4 (250)26-311803.5 (7.8)3.0 (6.5)85-88
0.052 in (1.3 mm) As-Welded with 100% CO2DC+25 (1)7.6 (300)26-312054.3 (9.4)3.6 (7.9)85-88
0.052 in (1.3 mm) As-Welded with 100% CO2DC+25 (1)8.9 (350)27-322255.0 (11.0)4.2 (9.2)85-88
0.052 in (1.3 mm) As-Welded with 100% CO2DC+25 (1)9.5 (375)27-322355.3 (11.7)4.5 (9.9)85-88
0.052 in (1.3 mm) As-Welded with 100% CO2DC+25 (1)10.8 (425)27-322556.0 (13.3)5.1 (11.2)85-88
0.052 in (1.3 mm) As-Welded with 100% CO2DC+25 (1)12.1 (475)28-332756.8 (14.9)5.7 (12.6)85-88
0.052 in (1.3 mm) As-Welded with 100% CO2DC+25 (1)12.7 (500)28-332907.1 (15.6)6.0 (13.3)85-88
1/16 in (1.6 mm) As-Welded with 100% CO2DC+25 (1)3.8 (150)23-282002.9 (6.4)2.4 (5.3)85-88
1/16 in (1.6 mm) As-Welded with 100% CO2DC+25 (1)4.4 (175)24-292153.4 (7.5)2.9 (6.3)85-88
1/16 in (1.6 mm) As-Welded with 100% CO2DC+25 (1)5.1 (200)24-292303.9 (8.5)3.3 (7.2)85-88
1/16 in (1.6 mm) As-Welded with 100% CO2DC+25 (1)5.7 (225)24-292454.4 (9.6)3.7 (8.1)85-88
1/16 in (1.6 mm) As-Welded with 100% CO2DC+25 (1)6.4 (250)25-302554.8 (10.6)4.1 (9.1)85-88
1/16 in (1.6 mm) As-Welded with 100% CO2DC+25 (1)7.6 (300)25-302855.8 (12.7)4.9 (10.9)85-88
1/16 in (1.6 mm) As-Welded with 100% CO2DC+25 (1)8.3 (325)26-313006.3 (13.8)5.4 (11.9)85-88
1/16 in (1.6 mm) As-Welded with 100% CO2DC+25 (1)8.9 (350)26-313106.7 (14.8)5.8 (12.8)85-88
1/16 in (1.6 mm) As-Welded with 100% CO2DC+25 (1)10.2 (400)27-323407.7 (16.9)6.7 (14.7)85-88
Note
⁽¹⁾ To estimate ESO subtract 1/4 in. (6.0 mm) from CTWD
LECO Diameter 1/16 in (1.6 mm)
LECO Package 33 lb Spool
Diameter (in) 1/16
Downloads
Includes
  • (1) 33 lb Spool
