Lincoln Electric ER90S TIG Rod .035" – 10 lb

Product Overview

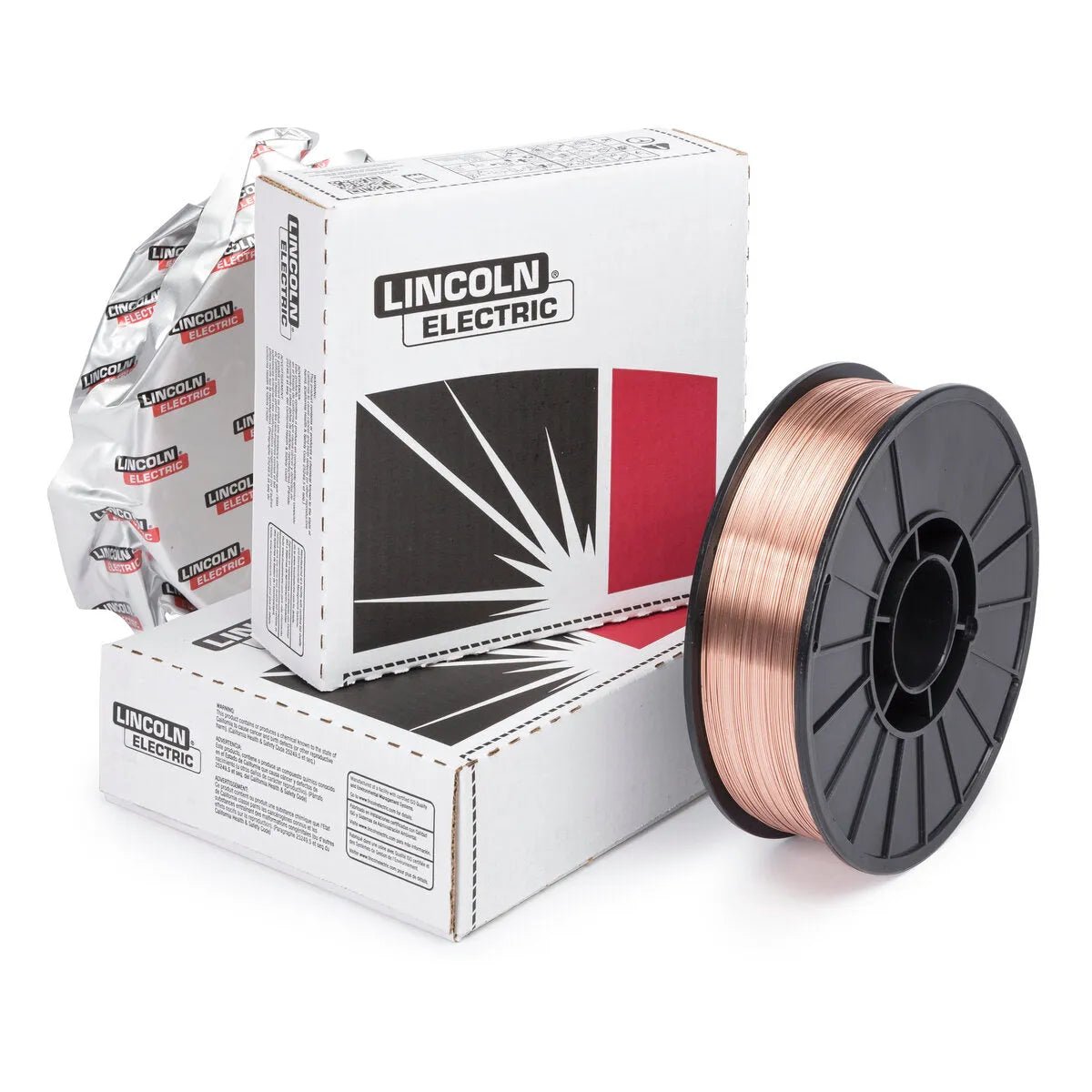

Lincoln Electric — Lincoln ED034471 SuperArc Orbital TIG ER90S-B3 TIG GTAW Welding Wire, 0.035 in, 10 lb Spool

SuperArc® Orbital TIG L-56 N from Lincoln Electric is a PLW product which has been treated to minimize weld defects that can be seen in the use of MIG wires for the automaticTIG process.

Specifications

• Classification: %C, %Cr, %Mn, %Mo, %Ni, %P, %S, %Si, %Total Cu
• Typical Result: 0.09-0.10, 2.40-2.45, 0.56-0.58, 0.99-1.04, 0.03-0.04, 0.005, 0.004, 0.53-0.54, 0.21-0.22
• Classification: Shielding Gas, Polarity, Yield Strength @ 0.2% Offset, MPa (ksi), Tensile Strength, MPa (ksi), Elongation, %
• Typical Result, 1 hour @ 690°C (1275°F): 100% Ar, DC-, 570 (82), 680-730 (99-106), 23
• LECO Diameter: 0.035 in (0.9 mm)
• LECO Package: 10 lb Spool
• Diameter (in): 0.035
• Part number: ED034471
• UPC/EAN: 0015082567341

Applications

TIG (GTAW) filler rods are used in the gas tungsten arc welding process, where the welder manually feeds the rod into the weld pool while maintaining the arc with the torch. TIG welding produces the highest quality, lowest spatter welds and is the process of choice for precision work on stainless, aluminum, titanium, and exotic alloys.

Compatibility & sizing

• Compatible families: SuperArc
• Electrode type: TIG Rod

Why pros choose this

TIG (GTAW) filler rods give welders precise control over the weld pool because the filler is fed manually rather than carried in the arc. Choosing the correct alloy and diameter keeps weld chemistry, penetration, and bead appearance consistent across procedures.

From the manufacturer

A PLW product which has been treated to minimize weld defects that can be seen in the use of MIG wires for the automaticTIG process.

Features

• Q2 Lot® - certificate showing actual deposit composition and actual mechanical properties available online
• A PLW product which has been treated to minimize weld defects that can be seen in the use of MIG wires for the automatic TIG process
