Lincoln Electric ED034725 Aluminum MIG Wire 3/64" – 300 lb

SKU: ED034725
$3,517.90

Financing Options

•
Loading Affirm Estimate…
•
Lease-To-Own From $160/mo — 24-Mo Term, No Hard Credit Check
Lincoln Elite Dealer
Free Shipping
Lowest Price
SuperGlaze® 5554 is used for elevated temperature 150F / 65C service and as 5454 base material match
AWS / Classification: AWS A5.10: ER5554
Overview

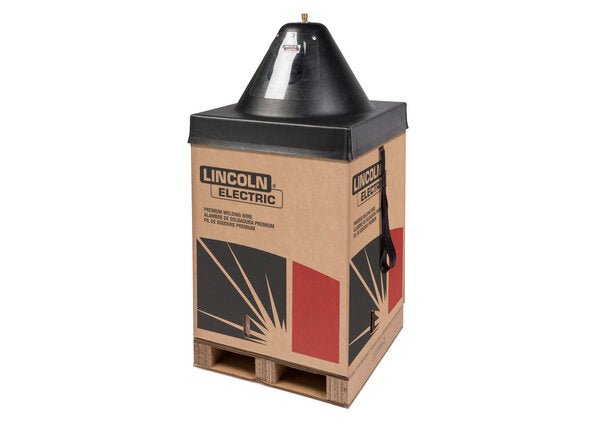

The SuperGlaze Gem-Pak is 300 lbs. of premium aluminum weld wire under a layer of glass payoff gems. The patented design provides tangle-free feeding. Guaranteed.

Features
  • High temperature service of 150F degrees and higher such as some storage tanks applications
  • Matching filler alloy for welding 5454 base alloys
  • Low magnesium content to closely match base material chemistry
  • Moderate strength applications
  • Gem-Pak®: layer of included glass gems guarantee tangle-free feeding
  • Gem-Pak®: simple patented design reduces rework and improves productivity
  • Gem-Pak®: fork-lift ready mini-pallet attached to the box - 100% recyclable
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.10 ER5554
Classification %Be%Mg%Zn%Cr%Cu%Fe%Mn%Si%Ti
ER5554 Requirement 0.0003 max.2.4 - 3.00.25 max.0.05 - 0.200.10 max.0.40 max.0.50 - 1.00.25 max.0.05 - 0.20
Typical Result 0.0002 max.2.60.000.080.010.130.70.060.09
Diameter Shielding GasGas Flow, L/min (CFH)PolarityCTWD, mm (in.)Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, amps
0.9 mm (.035") 100% Ar14-24 (30-50)DC+12.7 (¹/₂) - 15.9 (⁵/₈)19.6 (770)21.6185
1.2 mm (3/64") 100% Ar14-24 (30-50)DC+12.7 (¹/₂) - 15.9 (⁵/₈)12.7 (500)23.0210
1.6 mm (1/16") 100% Ar14-24 (30-50)DC+12.7 (¹/₂) - 15.9 (⁵/₈)9.1 (360)24.8280
2.4 mm (3/32") 100% Ar85 (180)DC+19.0 (³/₄)8.0 (315)28.0500
3.2 mm (1/8") 100% Ar85 (180)DC+19.0 (³/₄)5.1 (200)30.3535
LECO Diameter 3/64 in (1.2 mm)
LECO Package 300 lb Gem-Pak™ Box
Diameter (in) 3/64
Downloads
Includes
  • (1) 300 lb Gem-Pak™ Box
