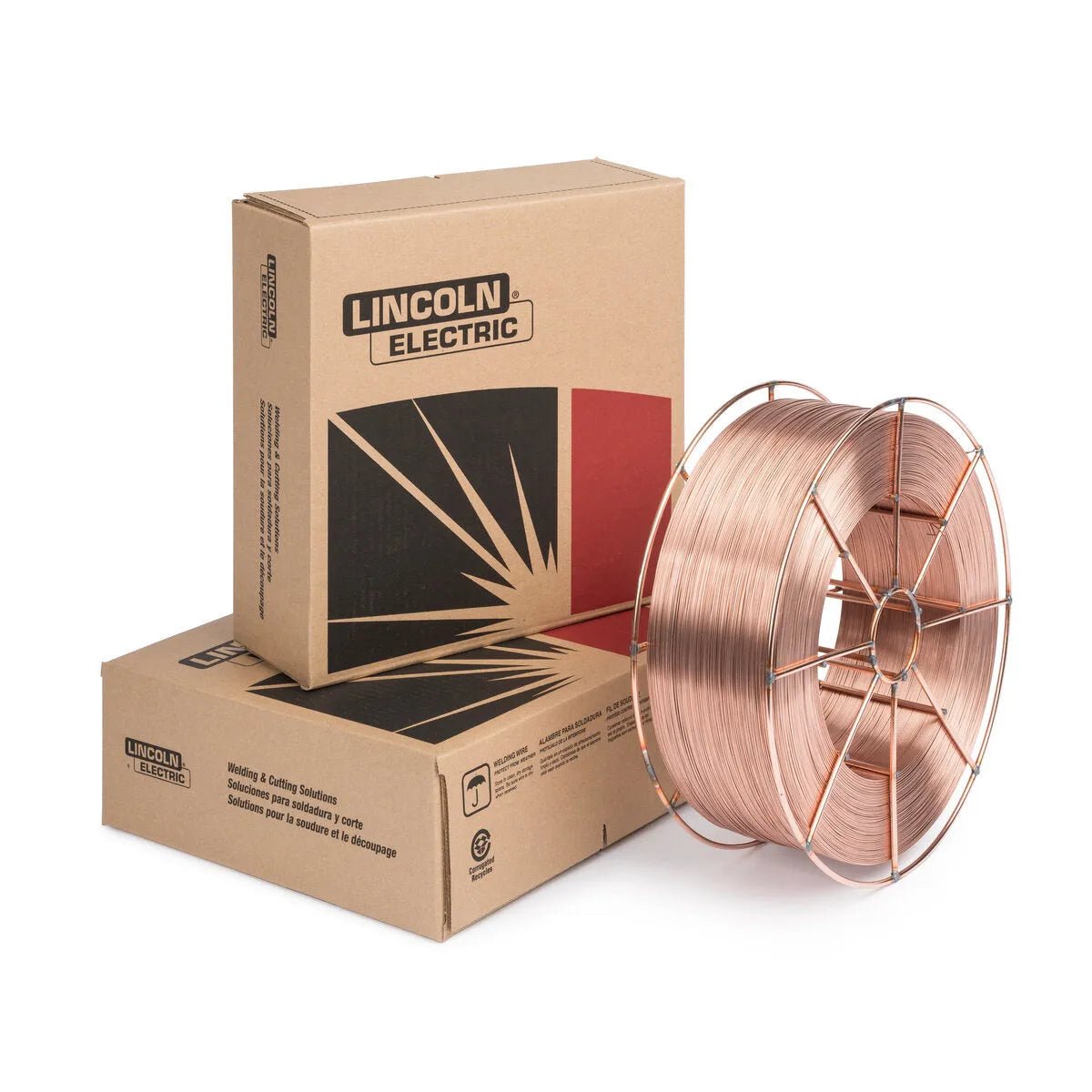

Lincoln Electric SuperArc ED034894 MIG Wire 0.035" – 33 lb

SKU: ED034894
$610.21 $689.37

Financing Options

•
Loading Affirm Estimate…
•
Lease-To-Own From $28/mo — 24-Mo Term, No Hard Credit Check
Lincoln Elite Dealer
Free Shipping
Lowest Price
SuperArc® AK-10™ from Lincoln Electric has superior feeding and arc stability.
AWS / Classification: ER100S-G
Overview

For superior feeding and arc stability

Features
  • Capable of producing welds with 690 MPa (100 ksi) tensile strength
  • Suitable for use where consumables with less than 1% Ni are required
  • Batch Managed Inventory
  • Superior feeding and arc stability

Typical Applications

  • NACE applications
  • Oil tools
  • Riser systems
  • High-strength pipe

Welding Positions

  • All

Shielding Gas

  • Mixed Shielding Gas|100% CO2
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.28ER100S-G
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -50°C (-60°F)Hardness Rockwell B
ER100S-G Requirement Not SpecifiedDC+690 (100) min.Info. Only
Typical Result, As-welded 90% Ar, 10% CO2DC+660-690 (96-100)760-790 (110-115)20-2245-70 (34-52)99
Classification Shielding GasPolarity%Al%C%Cr%Cu%Mn%Mo%Ni%P%S%Si%Ti%V%Zr
Typical Result 90% Ar, 10% CO2DC+0.00 max.0.11-0.120.26-0.370.18-0.231.12-1.230.42-0.470.89-1.060.006-0.0080.001-0.0060.41-0.450.001 max.0.005 max.0.001 max.
Classification %Al%C%Cr%Mn%Mo%Ni%P%S%Si%Ti%V%Zr%Total Cu
ER100S-G Requirement 0.30 min. *0.20 min. *0.50 min. *
Typical Result 0.00 max.0.10-0.120.27-0.341.52-1.550.42-0.470.87-0.960.007-0.0100.001-0.0060.57-0.620.00 max.0.005 max.0.001 max.0.20-0.25
Note
* To meet the requirements of a "G" classification, the chemical composition of the electrode must meet the minimum requirement for one or more of these elements.
LECO Diameter 0.035 in (0.9 mm)
LECO Package 33 lb Spool
Diameter (in) 0.035
Downloads
Includes
  • (1) 33 lb Spool
