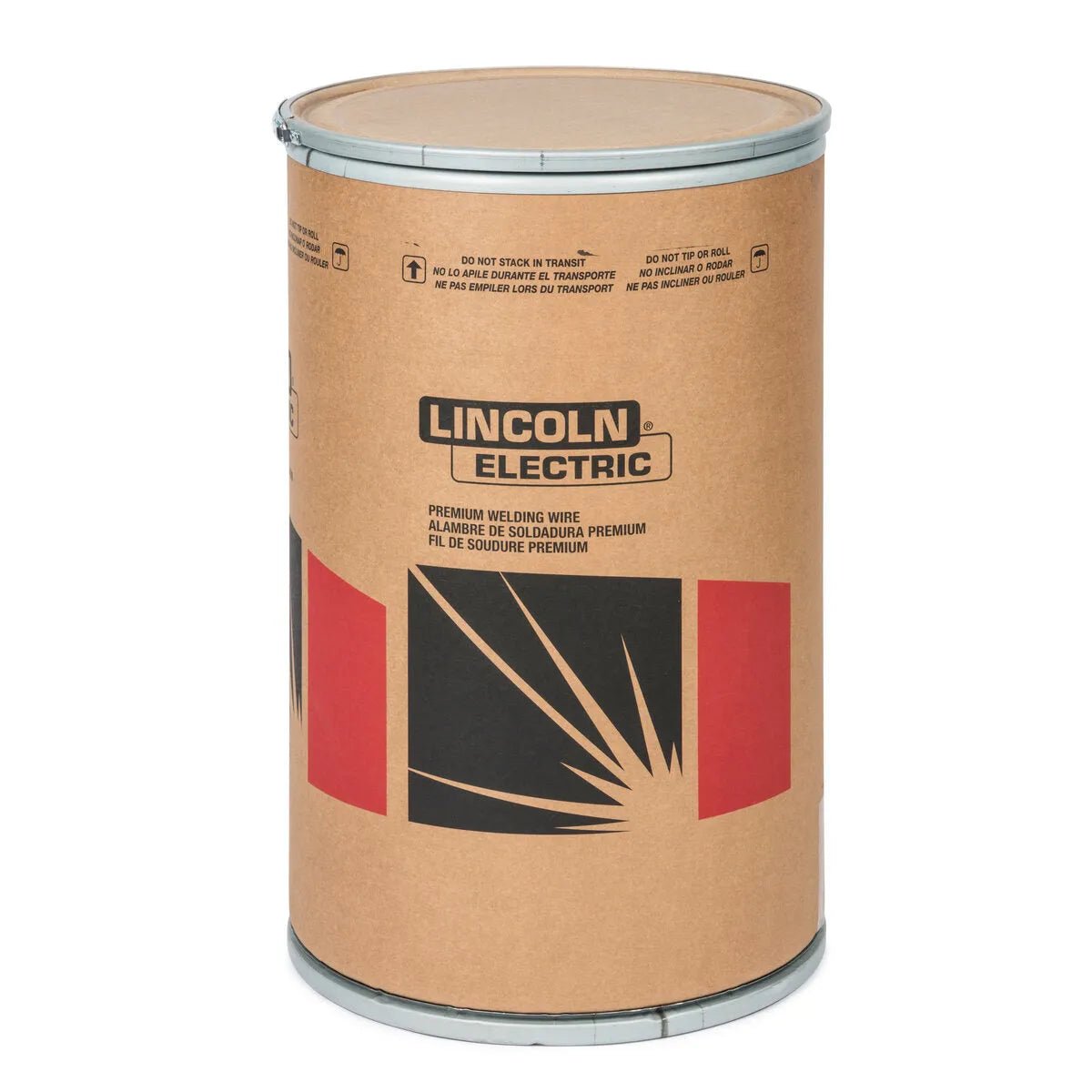

Lincoln ED034897 SuperArc AK-10 MIG GMAW Mild Steel Welding Wire, 0.045 in, 500 lb Accu-Trak Drum

SKU: ED034897
$9,103.91 $10,300.00

Financing Options

•
Loading Affirm Estimate…
•
Lease-To-Own From $414/mo — 24-Mo Term, No Hard Credit Check
Lincoln Elite Dealer
Free Shipping
Lowest Price
SuperArc® AK-10™ from Lincoln Electric has superior feeding and arc stability.
AWS / Classification: ER100S-G
Overview

For superior feeding and arc stability

Features
  • Capable of producing welds with 690 MPa (100 ksi) tensile strength
  • Suitable for use where consumables with less than 1% Ni are required
  • Batch Managed Inventory
  • Superior feeding and arc stability

Typical Applications

  • NACE applications
  • Oil tools
  • Riser systems
  • High-strength pipe

Welding Positions

  • All

Shielding Gas

  • Mixed Shielding Gas|100% CO2
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.28ER100S-G
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -50°C (-60°F)Hardness Rockwell B
ER100S-G Requirement Not SpecifiedDC+690 (100) min.Info. Only
Typical Result, As-welded 90% Ar, 10% CO2DC+660-690 (96-100)760-790 (110-115)20-2245-70 (34-52)99
Classification Shielding GasPolarity%Al%C%Cr%Cu%Mn%Mo%Ni%P%S%Si%Ti%V%Zr
Typical Result 90% Ar, 10% CO2DC+0.00 max.0.11-0.120.26-0.370.18-0.231.12-1.230.42-0.470.89-1.060.006-0.0080.001-0.0060.41-0.450.001 max.0.005 max.0.001 max.
Classification %Al%C%Cr%Mn%Mo%Ni%P%S%Si%Ti%V%Zr%Total Cu
ER100S-G Requirement 0.30 min. *0.20 min. *0.50 min. *
Typical Result 0.00 max.0.10-0.120.27-0.341.52-1.550.42-0.470.87-0.960.007-0.0100.001-0.0060.57-0.620.00 max.0.005 max.0.001 max.0.20-0.25
Note
* To meet the requirements of a "G" classification, the chemical composition of the electrode must meet the minimum requirement for one or more of these elements.
LECO Diameter 0.045 in (1.1 mm)
LECO Package 500 lb Accu-Trak® Drum
Diameter (in) 0.045
Downloads
Includes
  • (1) 500 lb Accu-Trak® Drum
