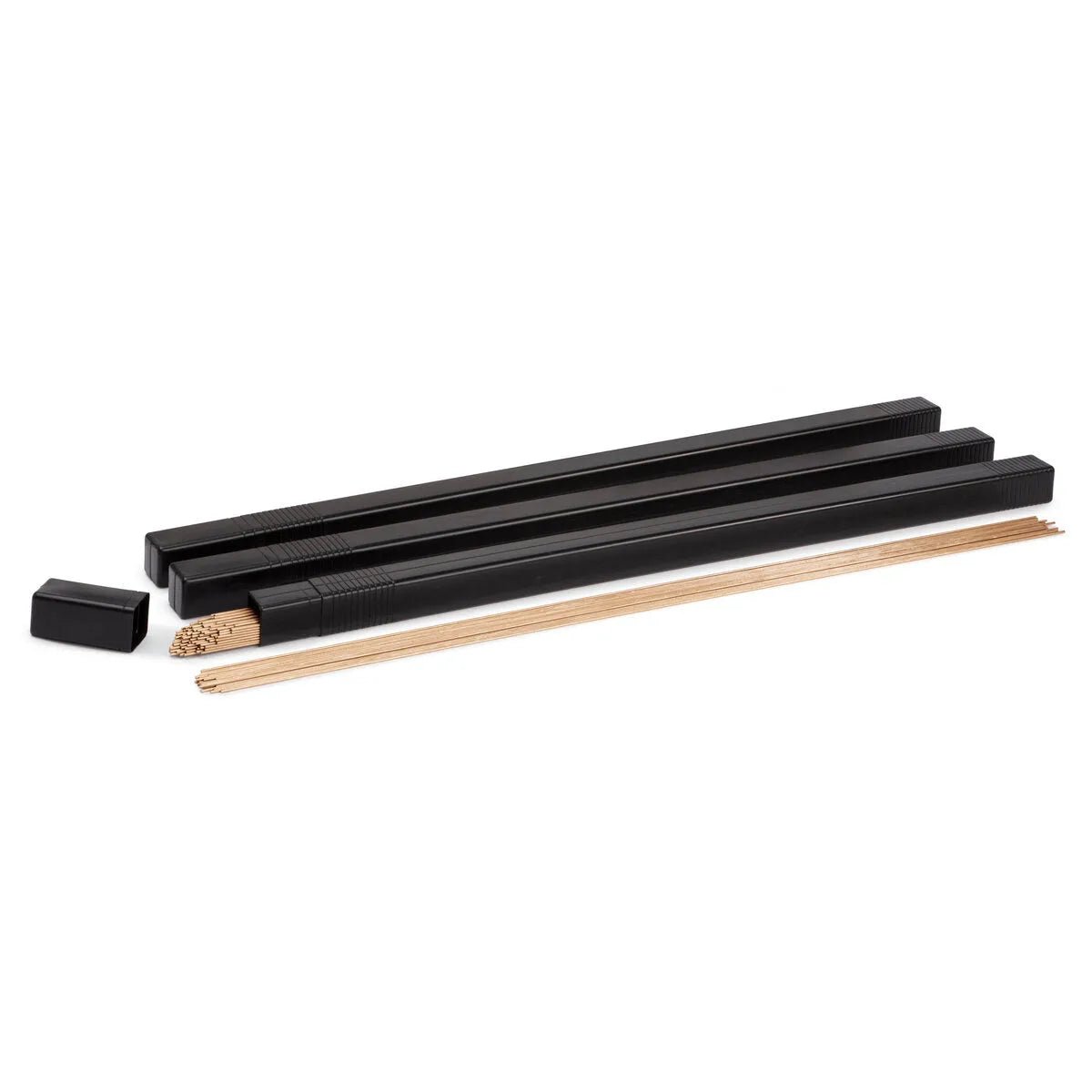

Lincoln ED034898 Lincoln AK-10 TIG GTAW Welding Rod, 1/16 in, 3 10 lb Tubes

SKU: ED034898
$536.55 $606.90

Financing Options

•
Loading Affirm Estimate…
•
Lease-To-Own From $24/mo — 24-Mo Term, No Hard Credit Check
Lincoln Elite Dealer
Free Shipping
Lowest Price
Lincoln® AK-10™ from Lincoln Electric is suitable for use where consumables with less than 1% Ni are required.
AWS / Classification: ER100S-G
Overview
Lincoln ED034898 Lincoln AK-10 TIG GTAW Welding Rod, 1/16 in, 3 10 lb Tubes

Suitable for use where consumables with less than 1% Ni are required.

Features
  • Capable of producing welds with 690 MPa (100 ksi) tensile strength
  • Suitable for use where consumables with less than 1% Ni are required
  • Batch Managed Inventory
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.28ER100S-G
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -50°C (-60°F)
ER100S-G Requirement 100% ArDC-690 (100) min.
Typical Result, As-welded 100% ArDC-630 (91)750-870 (109-126)29177-261 (130-192)
Classification %Al%C%Cr%Mn%Mo%Ni%P%S%Si%Ti%V%Zr%Total Cu
Typical Result 0.00 max.0.09-0.120.271.50-1.540.450.920.007-0.0090.001-0.0040.58-0.620.00 max.0.005 max.0.001 max.0.16-0.20
LECO Diameter 1/16 in (1.6 mm)
LECO Package (3) 10 lb Tube
Diameter (in) 1/16
Length (in) 36
Includes
  • (3) 10 lb Tube
