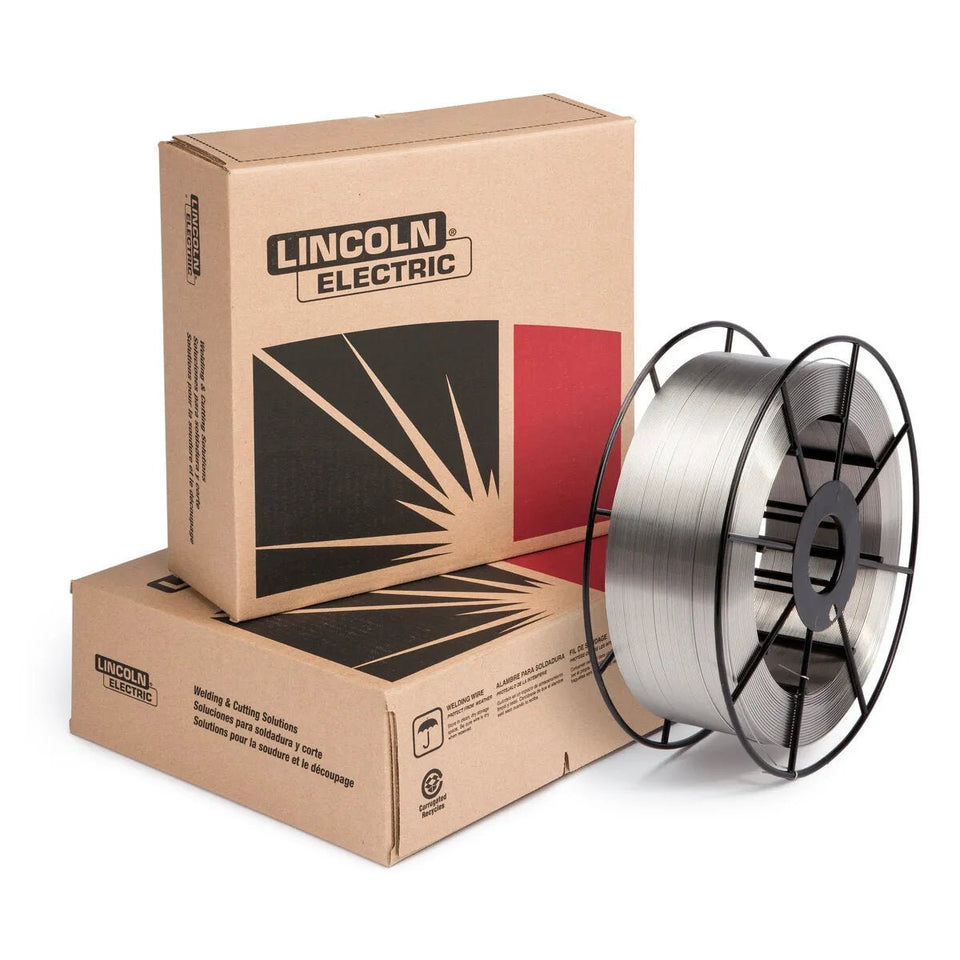

Lincoln Electric ED034909 MIG Wire 0.035" – 33 lb

SKU: ED034909
$605.91 $615.12
Lincoln Elite Dealer
Free Shipping
Lowest Price
BLUE MAX® MIG 308 LCF is designed for welding 304L base materials used in cryogenic applications at -196°C (-320°F)
AWS / Classification: AWS ER308L
Overview

BLUE MAX MIG 308LCF 0.035 inch Welding Wire ideal for applications in cryogenic temperatures requiring specific lateral expansion and charpy values at low temperatures of -196°C (-320°F)

Features
  • Q2 Lot® - Certified Material Test Report showing actual wire composition, actual impact properties, Country of Origin and calculated ferrite number (FN) of each lot is available online in the Certificate Center
  • Proprietary surface lubricant for steady feeding and arc stability leading to exceptional performance at high wire feed speeds
  • Controlled Low Ferrite (Range 3-6 FN)
  • Charpy V-Notch test results capable of exceeding 27 J (20 ft•lbf) @ -196°C (-320°F)

Typical Applications

  • LNG Storage
  • Cryogenic vessels and piping

Welding Positions

  • All

Shielding Gas

  • 98% Ar / 2% O₂

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.9ER308, ER308L
Classification Shielding GasYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -196°C (-320°F)Lateral Expansion, mil @ -196 °C (-320 °F)
Typical Result, As-welded 98% Ar, 2% O2390 (57)570 (82)3943-59 (32-43)19-32
Classification %C%Cr%Cu%Mn%Mo%N%Nb%Ni%P%S%SiFerrite Number (Delong ©)Ferrite Number (WRC-1992 ©)
ER308 Requirement 0.08 max.19.5 - 22.00.75 max.1.0 - 2.50.75 max.Info. OnlyInfo. Only9.0 - 11.00.03 max.0.03 max.0.30 - 0.65Info. OnlyInfo. Only
ER308L Requirement 0.03 max.19.5 - 22.00.75 max.1.0 - 2.50.75 max.Info. OnlyInfo. Only9.0 - 11.00.03 max.0.03 max.0.30 - 0.65Info. OnlyInfo. Only
Typical Result 0.02-0.0319.5-20.10.02-0.201.7-1.80.18 max.0.06-0.100.03 max.10.6-11.00.01-0.020.01-0.020.34-0.483-54-6
Diameter Shielding GasVoltage, voltsApprox. Current, amps
.035" (0.9 mm) 98% Ar, 2% O226-29160-210
.045" (1.1 mm) 98% Ar, 2% O228-32180-250
LECO Diameter 0.035 in (0.9 mm)
LECO Package 33 lb Spool
Diameter (in) 0.035
Downloads
Includes
  • (1) 33 lb Spool
