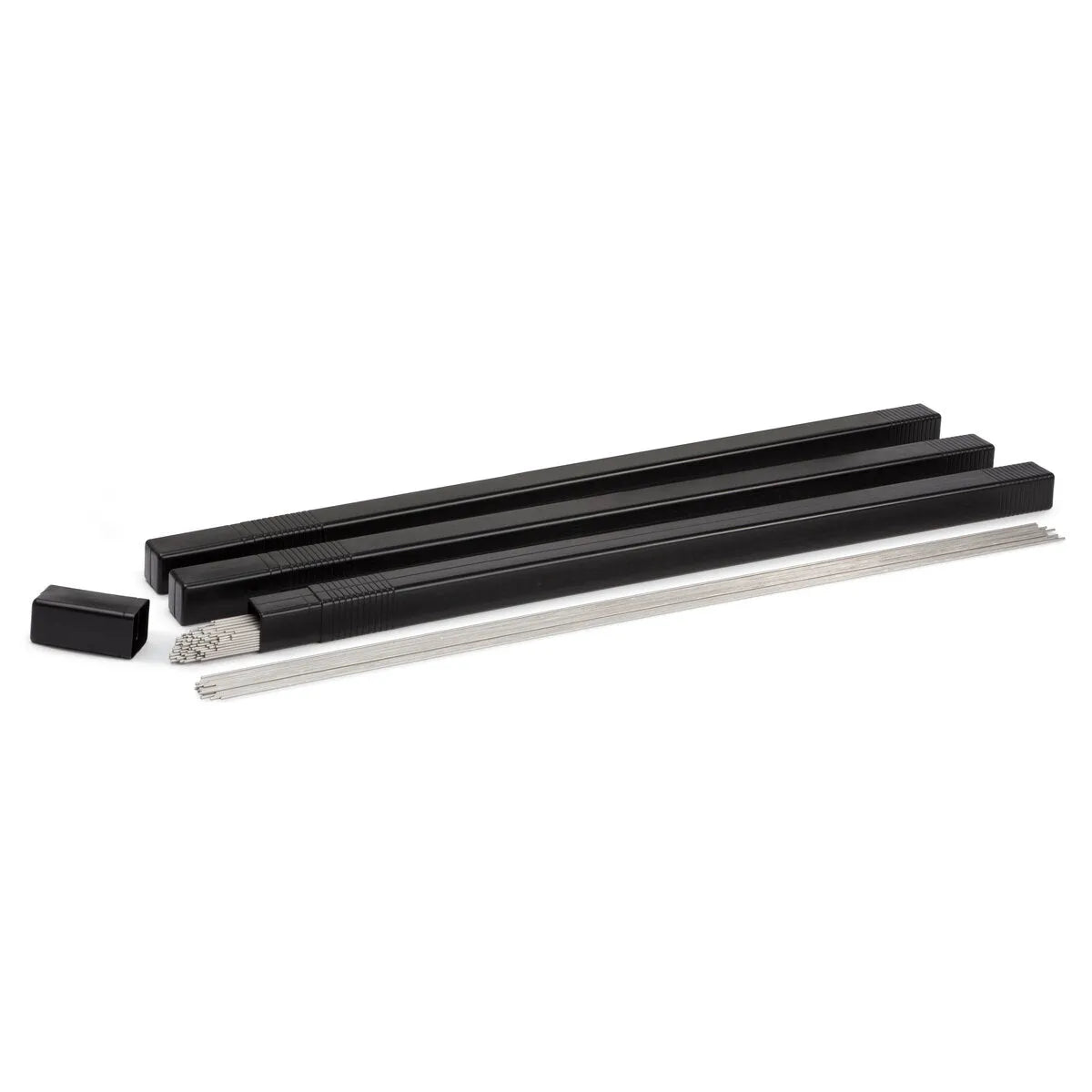

Lincoln ED034913 Lincoln ER308/308LCF TIG GTAW Welding Rod, 1/8 in, 10 lb Tube

SKU: ED034913
$158.30 $164.40
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
LINCOLN® ER308/308LCF provides controlled low ferrite (range 3-6), exceeds 15 mils (0.38mm) of lateral expansion and Charpy V-notch test results are capable of exceeding 27 J (20 ft·lbf) @ -196°C (-320°F).
AWS / Classification: AWS A5.9: ER308, AWS A5.9: ER308L
Overview
Lincoln ED034913 Lincoln ER308/308LCF TIG GTAW Welding Rod, 1/8 in,  10 lb Tube

Stainless steel welding rods designed to provide optimal bead appearance when TIG welding on a variety of materials

Features
  • Charpy V-Notch test results capable of exceeding 27 J (20 ft•lbf) @ -196°C (-320°F)
  • Exceeds 15 mils (0.38 mm) of lateral expansion at -196°C (-320°F)
  • Batch Managed Inventory
  • Ink jet printing identification on entire length of electrode
  • Q2 Lot® - Certificates showing actual wire composition, ferrite number, and impact properties tested at -196°C (-320°F) available online

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.9ER308, ER308L
Classification Shielding GasElongation, %Tensile Strength, MPa (ksi)Yield Strength @ 0.2% Offset, MPa (ksi)Charpy V-Notch, J (ft-lbs) @ -196°C (-320°F)Lateral Expansion, mil @ -196 °C (-320 °F)
Typical Result, As-welded 100% Ar42610 (89)440 (64)61-131 (45-97)39-59
Classification %C%Cr%Cu%Mn%Mo%N%Nb%Ni%P%S%SiFerrite Number (Delong ©)Ferrite Number (WRC-1992 ©)
ER308 Requirement 0.08 max.19.5 - 22.00.75 max.1.0 - 2.50.75 max.Info. OnlyInfo. Only9.0 - 11.00.03 max.0.03 max.0.30 - 0.65Info. OnlyInfo. Only
ER308L Requirement 0.03 max.19.5 - 22.00.75 max.1.0 - 2.50.75 max.Info. OnlyInfo. Only9.0 - 11.00.03 max.0.03 max.0.30 - 0.65Info. OnlyInfo. Only
Typical Result 0.0219.5-20.00.02-0.201.6-1.80.02-0.180.01-0.090.02 max.10.5-10.90.01-0.020.01-0.020.40-0.533-74-9
LECO Diameter 1/8 in (3.2 mm)
LECO Package (3) 10 lb Tube
Diameter (in) 1/8
Length (in) 36
Includes
  • (3) 10 lb Tube
