Lincoln Electric Lincolnweld 308/308LCF ED034916 1/8" – 55 lb

SKU: ED034916
$930.27 $949.85

Financing Options

•
Loading Affirm Estimate…
•
Lease-To-Own From $42/mo — 24-Mo Term, No Hard Credit Check
Lincoln Elite Dealer
Free Shipping
Lowest Price
Controlled Low Ferrite (Range 3-8)
AWS / Classification: AWS A5.9: ER308, AWS A5.9: ER308L
Overview

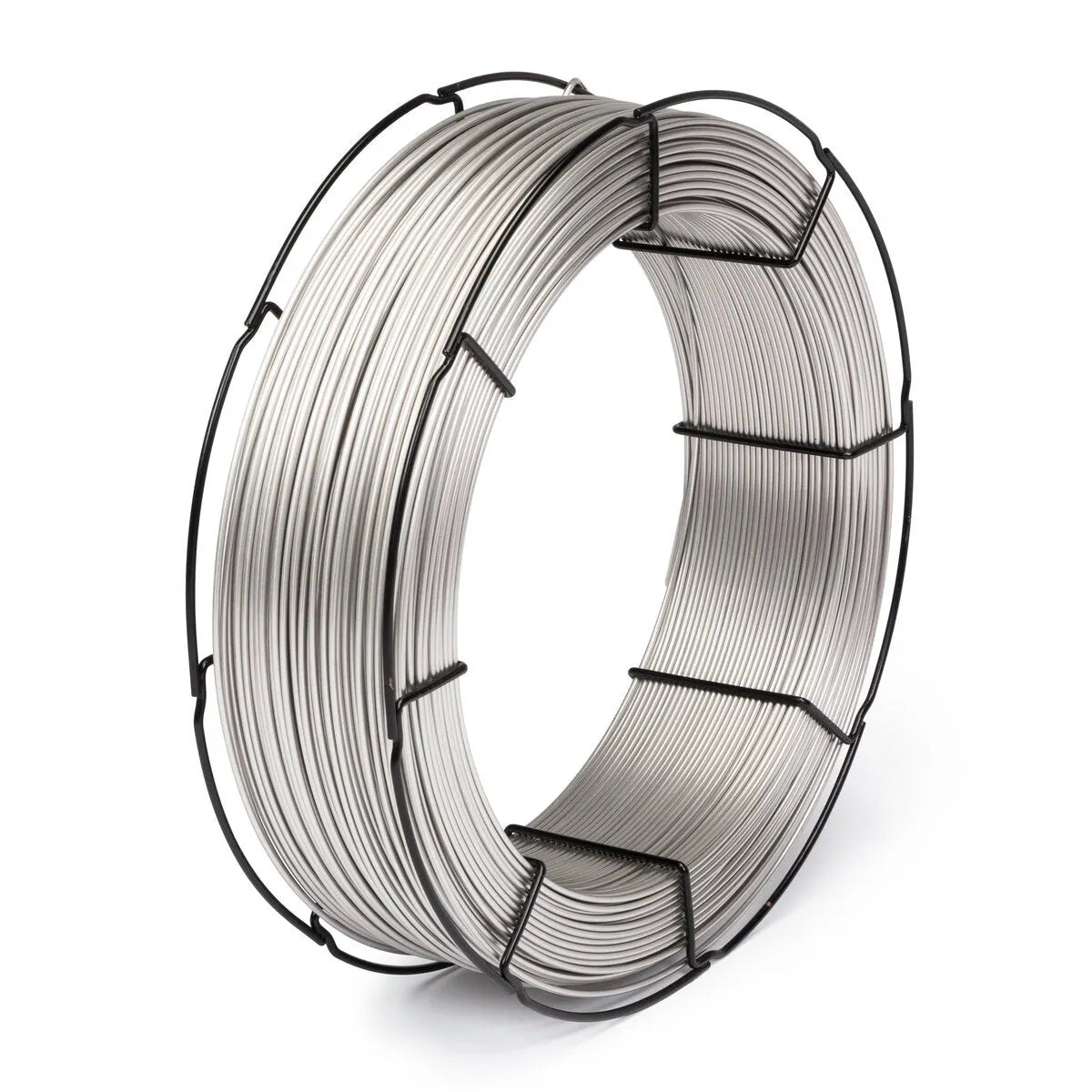

Lincoln ED034916 Lincolnweld 308/308LCF Submerged Arc SAW Welding Wire, 1/8 in, 55 lb Coil

LINCOLNWELD 308/308LCF consumables have a controlled low ferrite (range 3-8), and are capable of producing Charpy V-Notch test results exceeding 27 J (20 ft•lbf) and lateral expansion values exceeding 15 mils (0.38mm) at service temperatures down to -196°C (-320°F)

Features
  • Controlled Low Ferrite (Range 3-8)
  • Charpy V-Notch test results capable of exceeding 27 J (20 ft•lbf) @ -196°C (-320°F)
  • Exceeds 15 mils (0.38 mm) of lateral expansion @ -196°C (-320°F)
  • Batch Managed Inventory
  • Q2 Lot - Certificate showing deposit composition, ferrite number, and charpy impact properties tested at -196°C (-320°F)

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.9ER308, ER308L
Classification Yield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -196°C (-320°F)Lateral Expansion, mil @ -196 °C (-320 °F)Flux
Typical Result 400 (59)560 (81)3846 (34)20Lincolnweld® P2007™
Classification %C%Cr%Cu%Mn%Mo%N%Nb%Ni%P%S%SiFerrite Number (Delong ©)Ferrite Number (WRC-1992 ©)
ER308 Requirement 0.08 max.19.5 - 22.00.75 max.1.0 - 2.50.75 max.Info. OnlyInfo. Only9.0 - 11.00.03 max.0.03 max.0.30 - 0.65Info. OnlyInfo. Only
ER308L Requirement 0.03 max.19.5 - 22.00.75 max.1.0 - 2.50.75 max.Info. OnlyInfo. Only9.0 - 11.00.03 max.0.03 max.0.30 - 0.65Info. OnlyInfo. Only
Typical Result 0.02-0.0319.6-20.00.02-0.141.6-1.80.18 max.0.05-0.090.02 max.10.6-10.80.01-0.020.010.35-0.423-64-6
Diameter Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, amps
5/64" (2.0 mm) 2.0-6.1 (80-240)24.0-30.0190-500
3/32" (2.4 mm) 1.5-5.3 (60-210)26.0-32.0195-575
1/8" (3.2 mm) 0.9-2.8 (35-110)28.0-34.0200-700
5/32" (4.0 mm) 0.8-1.9 (30-75)30.0-36.0320-775
Lincolnweld® P2007™
Lincolnweld® P2007™
Lincolnweld® P2007™
Lincolnweld® P2007™
LECO Diameter 1/8 in (3.2 mm)
LECO Package 55 lb Coil
Diameter (in) 1/8
Includes
  • (1) 55 lb Coil
