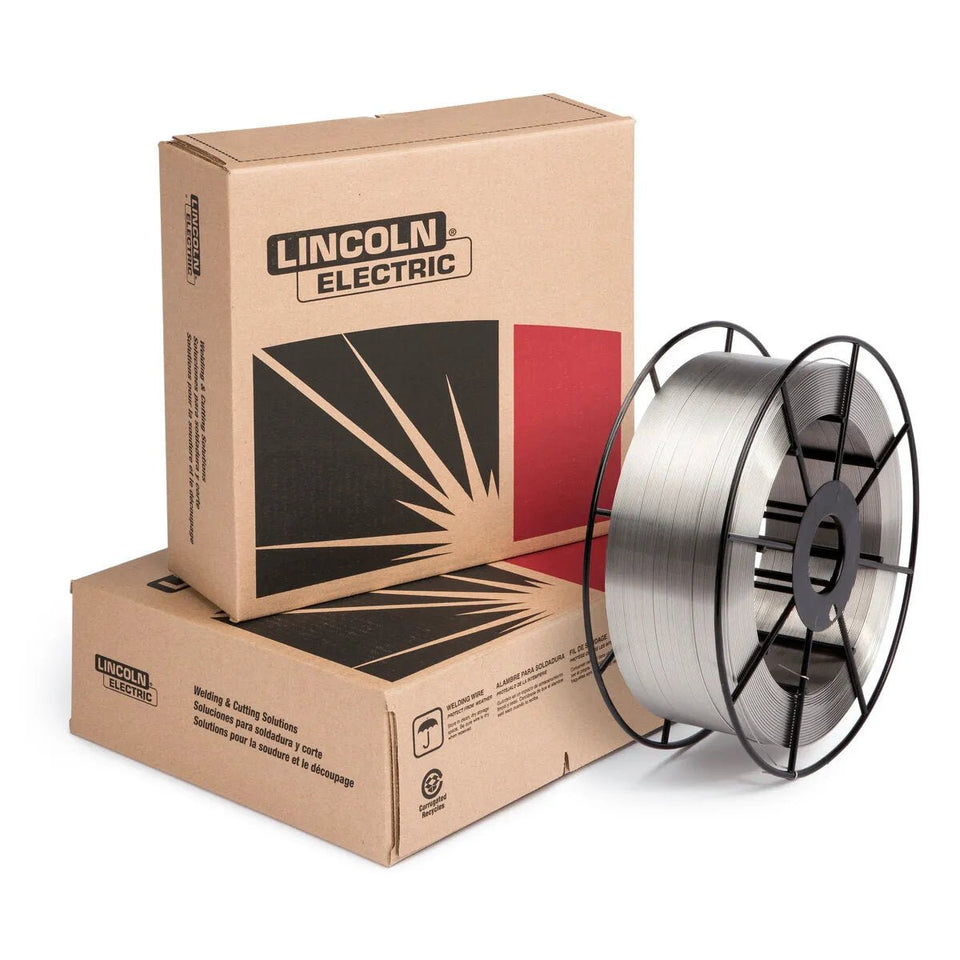

Lincoln ED034925 Blue Max 316LCF MIG GMAW Stainless Steel Welding Wire, 0.035 in, 33 lb Spool

SKU: ED034925
$713.60 $726.00

Financing Options

•
Loading Affirm Estimate…
•
Lease-To-Own From $32/mo — 24-Mo Term, No Hard Credit Check
Lincoln Elite Dealer
Free Shipping
Lowest Price
BLUE MAX® MIG 316LCF is designed for 316L stainless steel applications in service at low temperature such as on LNG storage, cryogenic vessels and piping.
AWS / Classification: AWS ER316L
Overview

BLUE MAX® MIG 316LCF 0.035 inch welding wire is ideal for cryogenic applications requiring low ferrite (Range 3-5). Exceeds 15 mils (0.38 mm) of lateral expansion at -196°C (-320°F) Charpy V-Notch test results capable of exceeding 27J (20 ft·lbf) at -196°C (-320°F)

Features
  • Q2 Lot® - Certified Material Test Report showing actual wire composition, actual impact properties, Country of Origin and calculated ferrite number (FN) of each lot is available online in the Certificate Center
  • Proprietary surface lubricant for steady feeding and arc stability leading to exceptional performance at high wire feed speeds
  • Controlled Low Ferrite (Range 3-5 FN)
  • Charpy V-Notch test results capable of exceeding 27 J (20 ft·lbf) @ -196°C (-320°F)

Typical Applications

  • LNG Storage
  • Cryogenic Vessels and Piping

Welding Positions

  • All

Shielding Gas

  • 98% Ar / 2% O₂

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.9ER316, ER316L
Classification Shielding GasYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -196°C (-320°F)Lateral Expansion, mil @ -196 °C (-320 °F)
Typical Result 98% Ar, 2% O2410 (60)590 (85)3638-76 (28-56)19-35
Classification %C%Cr%Cu%Mn%Mo%N%Nb%Ni%P%S%SiFerrite Number (Delong ©)Ferrite Number (WRC-1992 ©)
ER316 Requirement 0.08 max.18.0 - 20.00.75 max.1.0 - 2.52.0 - 3.0Info. OnlyInfo. Only11.0 - 14.00.03 max.0.03 max.0.30 - 0.65Info. OnlyInfo. Only
ER316L Requirement 0.03 max.18.0 - 20.00.75 max.1.0 - 2.52.0 - 3.0Info. OnlyInfo. Only11.0 - 14.00.03 max.0.03 max.0.30 - 0.65Info. OnlyInfo. Only
Typical Result 0.01-0.0318.3-18.50.12-0.181.7-1.82.5-2.60.060.01 max.12.3-12.80.02-0.030.01-0.020.34-0.404-74-5
Diameter Shielding GasPolarityVoltage, voltsApprox. Current, amps
.035" (0.9 mm) 98% Ar, 2% O2DC+26-29160-210
.045" (1.1 mm) 98% Ar, 2% O2DC+28-32180-250
LECO Diameter 0.035 in (0.9 mm)
LECO Package 33 lb Spool
Diameter (in) 0.035
Downloads
Includes
  • (1) 33 lb Spool
