Lincoln Electric ED034928 TIG Rod 3/32" – 10 lb

SKU: ED034928
$205.39
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
LINCOLN® ER316/316LCF Tungsten Inert Gas Rod designed for 316L stainless steel base metals where controlled ferrite levels are required.
AWS / Classification: AWS A5.9: ER316, AWS A5.9: ER316L
Overview

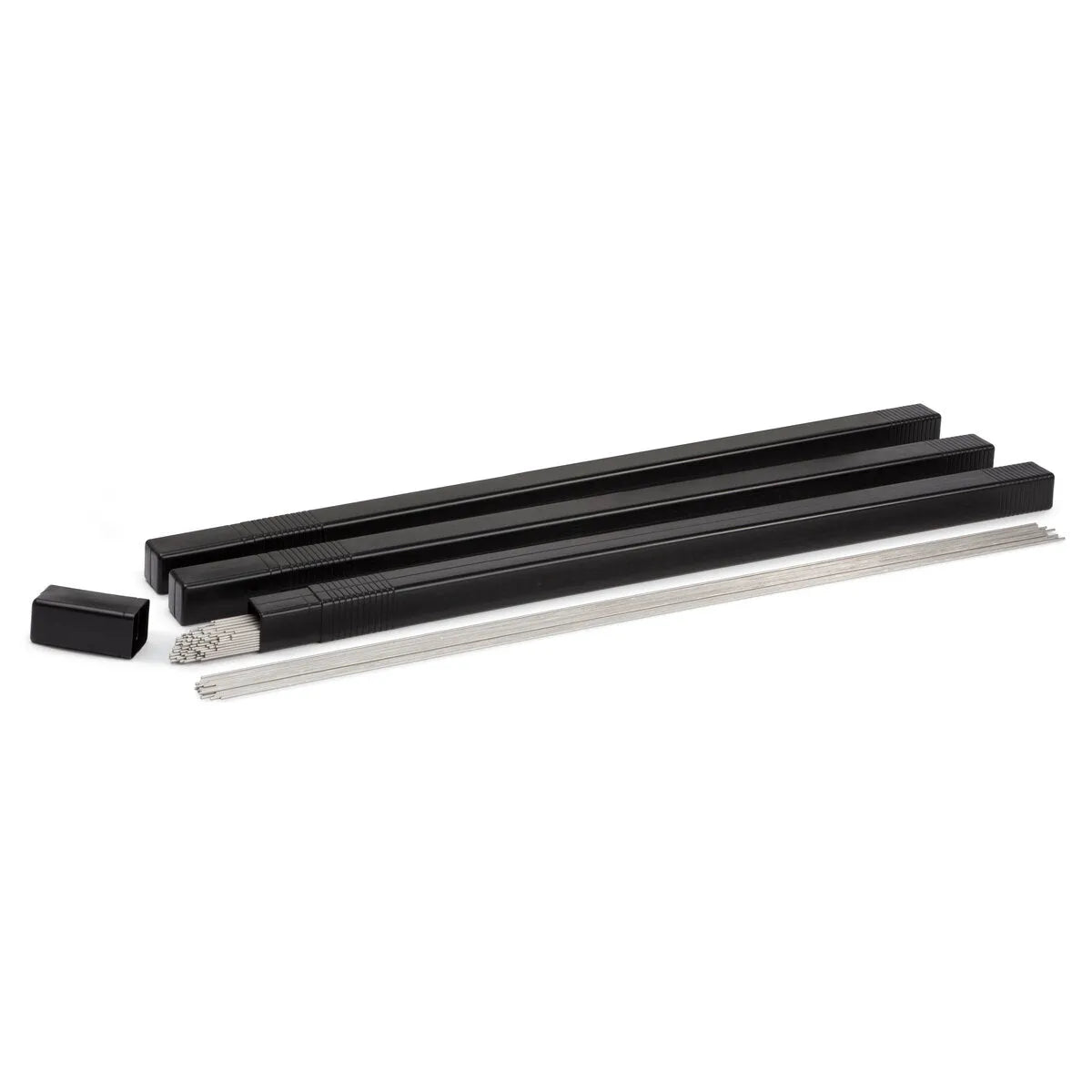

Lincoln ED034928 Lincoln ER316/316LCF TIG GTAW Welding Rod, 3/32 in,  10 lb Tube

LINCOLN ER316/316LCF provides controlled low ferrite (FN 3-6), Charpy V-Notch test results capable of exceeding 27 J (20 ft•lbf) -196°C (-320°F) and Exceeds 15 mils (0.38 mm) of lateral expansion -196°C (-320°F).

Features
  • Controlled Low Ferrite (Range 3-6)
  • Charpy V-Notch test results capable of exceeding 27 J (20 ft•lbf) -196°C (-320°F)
  • Exceeds 15 mils (0.38 mm) of lateral expansion at -196°C (-320°F)
  • Batch Managed Inventory
  • Ink jet printing identification on entire length of electrode
  • Q2 Lot - Certificates showing actual wire composition, ferrite number, and impact properties tested at -196°C (-320°F) available online

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.9ER316, ER316L
Classification Shielding GasElongation, %Tensile Strength, MPa (ksi)Yield Strength @ 0.2% Offset, MPa (ksi)Charpy V-Notch, J (ft-lbs) @ -196°C (-320°F)Lateral Expansion, mil @ -196 °C (-320 °F)
Typical Result 100% Ar37600 (87)450 (65)50-115 (37-85)30-54
Classification %C%Cr%Cu%Mn%Mo%N%Nb%Ni%P%S%SiFerrite Number (Delong ©)Ferrite Number (WRC-1992 ©)
ER316 Requirement 0.08 max.18.0 - 20.00.75 max.1.0 - 2.52.0 - 3.0Info. OnlyInfo. Only11.0 - 14.00.03 max.0.03 max.0.30 - 0.65Info. OnlyInfo. Only
ER316L Requirement 0.03 max.18.0 - 20.00.75 max.1.0 - 2.52.0 - 3.0Info. OnlyInfo. Only11.0 - 14.00.03 max.0.03 max.0.30 - 0.65Info. OnlyInfo. Only
Typical Result 0.01-0.0218.3-18.50.08-0.181.7-1.82.5-2.60.060.01 max.12.3-13.20.020.01-0.020.34-0.474-74-5
LECO Diameter 3/32 in (2.4 mm)
LECO Package (3) 10 lb Tube
Diameter (in) 3/32
Length (in) 36
Includes
  • (3) 10 lb Tube
