Lincoln Electric Lincolnweld 316/316LCF ED034932 1/8" – 55 lb

SKU: ED034932
$1,140.88 $1,163.80

Financing Options

•
Loading Affirm Estimate…
•
Lease-To-Own From $52/mo — 24-Mo Term, No Hard Credit Check
Lincoln Elite Dealer
Free Shipping
Lowest Price
Controlled Low Ferrite (Range 3-5)
AWS / Classification: AWS A5.9: ER316, AWS A5.9: ER316L
Overview

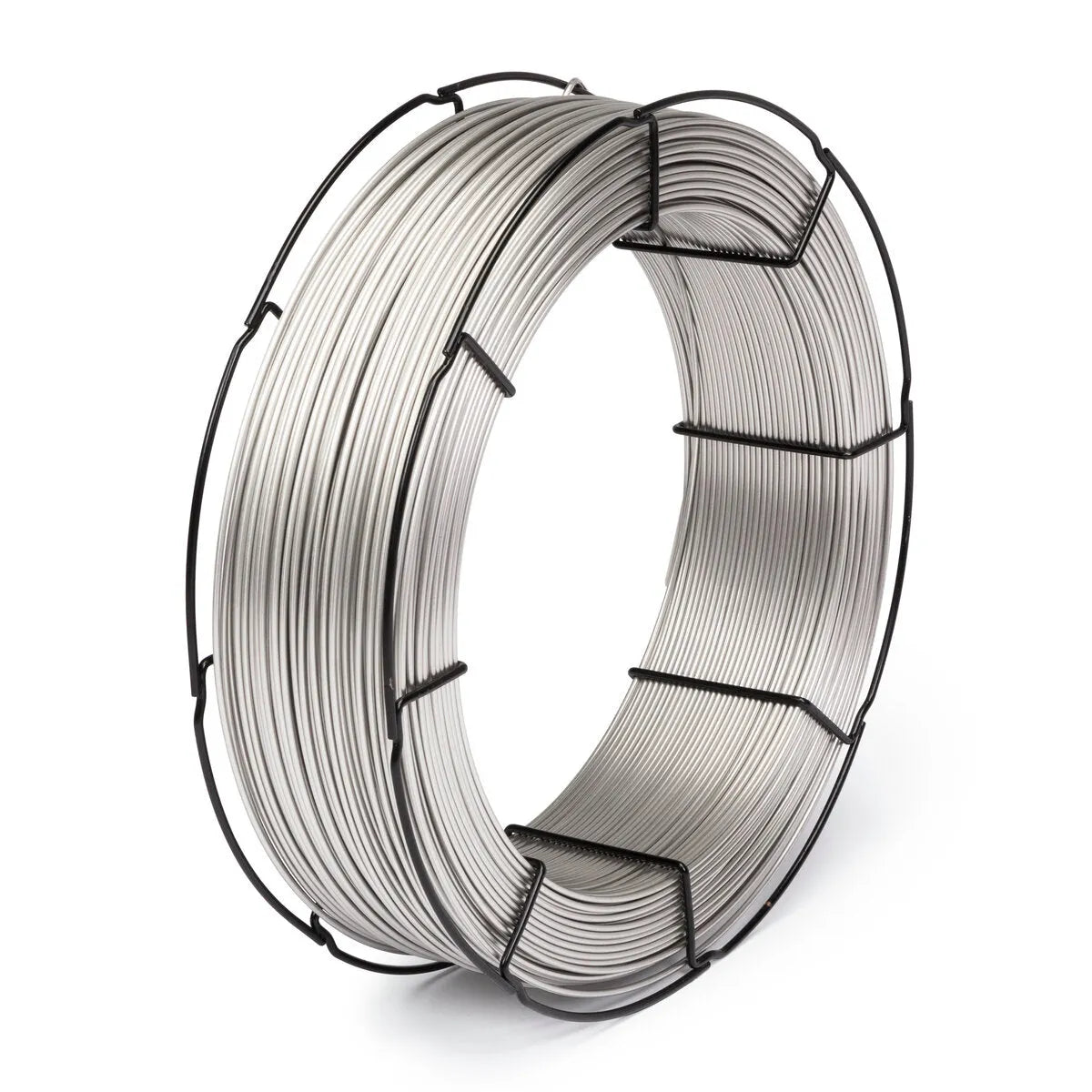

Lincoln ED034932 Lincolnweld 316/316LCF Submerged Arc SAW Welding Wire, 1/8 in, 55 lb Coil

LINCOLNWELD® 316/316LCF consumables have a controlled low ferrite (range 3-5), and are capable of producing Charpy V-Notch test results exceeding 27 J (20 ft•lbf) and lateral expansion values exceeding 15 mils (0.38mm) at service temperatures down to -196°C (-320°F).

Features
  • Controlled Low Ferrite (Range 3-5)
  • Charpy V-Notch test results capable of exceeding 27 J (20 ft•lbf) @ -196°C (-320°F)
  • Exceeds 15 mils (0.38 mm) of lateral expansion at -196°C (-320°F)
  • Batch Managed Inventory
  • Q2 Lot® - Certificate showing deposit composition, ferrite number, and charpy impact properties tested at -196C(-320F)

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.9ER316, ER316L
Classification Yield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -196°C (-320°F)Lateral Expansion, mil @ -196 °C (-320 °F)Flux
Typical Result 430 (62)590 (85)3447 (35)21Lincolnweld® P2007™
Classification %C%Cr%Cu%Mn%Mo%N%Nb%Ni%P%S%SiFerrite Number (Delong ©)Ferrite Number (WRC-1992 ©)
ER316 Requirement 0.08 max.18.0 - 20.00.75 max.1.0 - 2.52.0 - 3.0Info. OnlyInfo. Only11.0 - 14.00.03 max.0.03 max.0.30 - 0.65Info. OnlyInfo. Only
ER316L Requirement 0.03 max.18.0 - 20.00.75 max.1.0 - 2.52.0 - 3.0Info. OnlyInfo. Only11.0 - 14.00.03 max.0.03 max.0.30 - 0.65Info. OnlyInfo. Only
Typical Result 0.0218.4-18.70.11-0.181.82.5-2.70.05-0.060.0112.3-13.30.020.010.35-0.404-64-5
Diameter Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, amps
5/64" (2.0 mm) 2.0-6.1 (80-240)24-30190-500
3/32" (2.4 mm) 1.5-5.3 (60-210)26-32195-575
1/8" (3.2 mm) 0.9-2.8 (35-110)28-34200-700
Lincolnweld® P2007™
Lincolnweld® P2007™
Lincolnweld® P2007™
LECO Diameter 1/8 in (3.2 mm)
LECO Package 55 lb Coil
Diameter (in) 1/8
Includes
  • (1) 55 lb Coil
