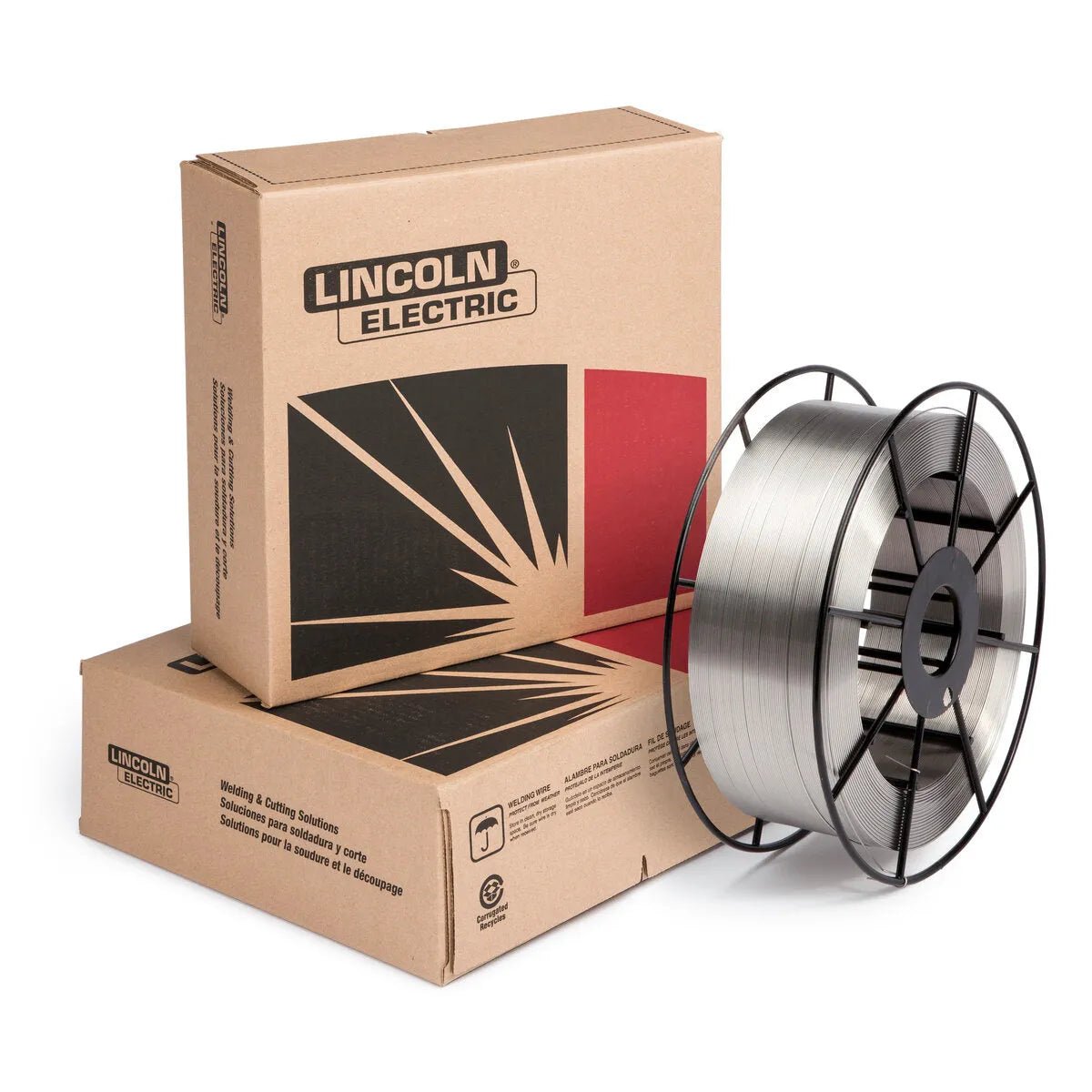

Lincoln ED035028 Blue Max 2209 MIG GMAW Stainless Steel Welding Wire, 1/16 in, 33 lb Spool

SKU: ED035028
$700.92 $776.16
Lincoln Elite Dealer
Free Shipping
Lowest Price
BLUE MAX® MIG 2209 is designed for welding 2205 duplex stainless steels
AWS / Classification: AWS A5.9: ER2209
Overview

BLUE MAX MIG 2209 1/16 inch welding wire offers excellent resistance to stress corrosion, cracking and pitting. The microstructure of the weld metal consists of austenite and ferrite.

Features
  • Q2 Lot® - Certified Material Test Report showing actual wire composition, Country of Origin and calculated ferrite number (FN) of each lot is available online in the Certificate Center
  • Proprietary surface lubricant for steady feeding and arc stability leading to exceptional performance at high wire feed speeds
  • The welds offer excellent resistance to stress corrosion, cracking and pitting
  • The microstructure of the weld metal consists of austenite and ferrite

Typical Applications

  • Offshore
  • Oil and Gas
  • Chemical
  • Petrochemical
  • Welding 2205 duplex stainless steel

Welding Positions

  • All

Shielding Gas

  • 98% Ar / 2% O₂
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.9ER2209
ABS AWS A5.9ER2209
CWB CSA W48ER2209
Classification %C%Cr%Cu%Mn%Mo%N%Ni%P%S%SiFerrite Number (Delong ©)Ferrite Number (WRC-1992 ©)
ER2209 Requirement 0.03 max.21.5 - 23.50.75 max.0.50 - 2.002.5 - 3.50.08 - 0.207.5 - 9.50.03 max.0.03 max.0.90 max.
Typical Result 0.0122.7-22.90.04-0.091.53-1.603.10.15-0.168.3-8.60.020.003 max.0.47-0.583254-60
Diameter Shielding GasVoltage, voltsApprox. Current, amps
.030" (0.8 mm) 98% Ar, 2% CO226-29160-210
0.035 in (0.9 mm) 98% Ar / 2% CO226-29160-210
0.045 in (1.1 mm) 98% Ar / 2% CO228-32180-250
1/16 in (1.6 mm) 98% Ar / 2% CO229-33200-280
LECO Diameter 1/16 in (1.6 mm)
LECO Package 33 lb Spool
Diameter (in) 1/16
Downloads
Includes
  • (1) 33 lb Spool
