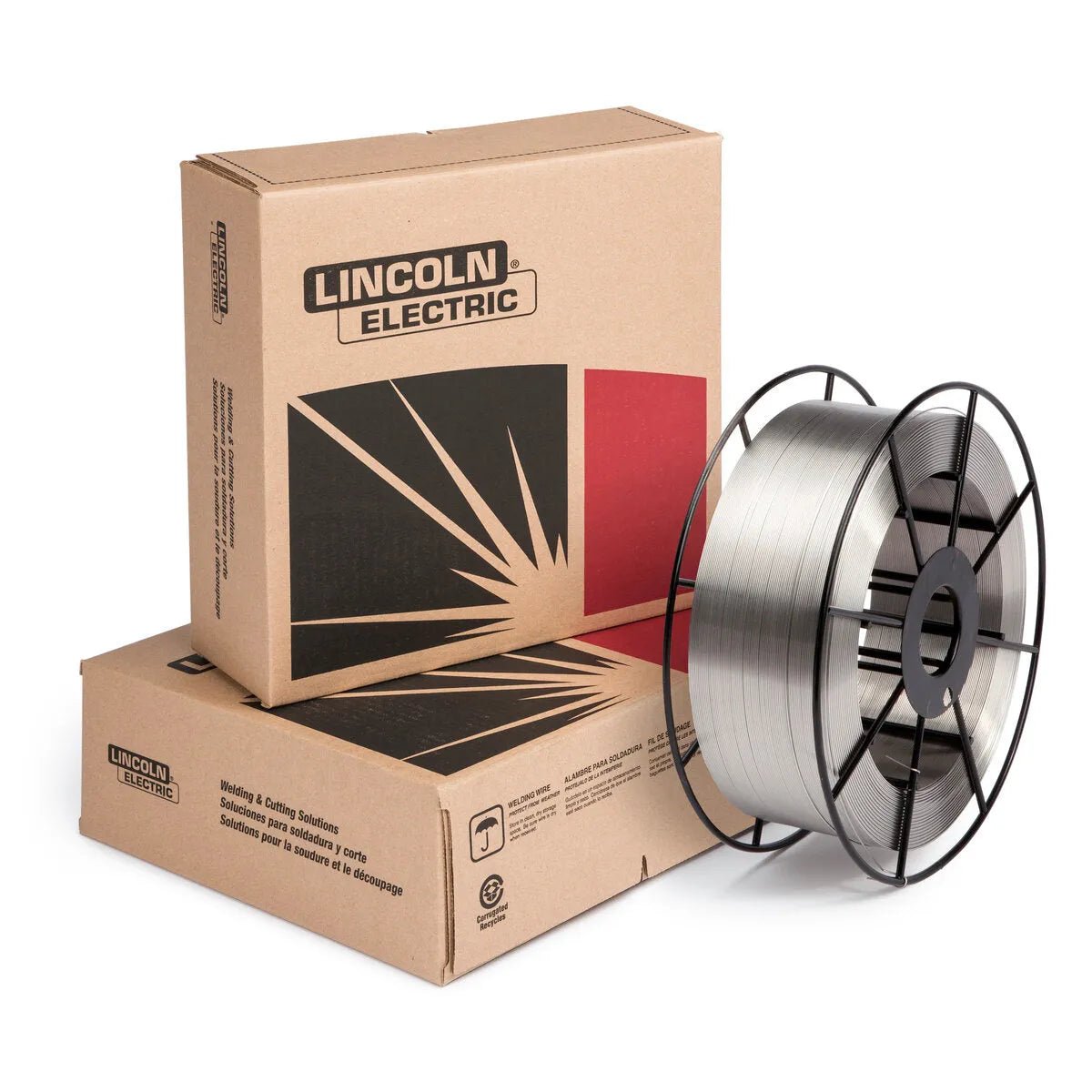

Lincoln Electric ED035056 Blue Max 308L MIG GMAW Stainless Steel Welding Wire (1/16 in, 33 lb Spool) is a solid-wire MIG filler metal classified under AWS A5.9 as ER308L. The Blue Max® trade name is Lincoln Electric's premium stainless steel MIG wire line, engineered to tighter-than-standard chemical and dimensional tolerances to deliver consistent arc performance, smooth bead appearance, and predictable corrosion resistance across high-volume production stainless fabrication. The "L" (low-carbon) designation limits carbon to 0.03% maximum, preventing carbide precipitation (sensitization) in the heat-affected zone for applications involving elevated temperatures or aggressive corrosive service.
The 1/16 in (1.6 mm) diameter is a heavy-gauge MIG wire intended for high-deposition-rate flat and horizontal welding on stainless steel plate and structural components — ASTM A240 304/304L plate, fabricated pressure vessel shells, and thick-section stainless structural members. The 33 lb spool matches standard bulk production spool sizes, reducing changeover frequency in automated and semi-automated welding cells. Lincoln Electric's Blue Max 308L uses controlled silicon content (0.65–1.00%) to promote excellent wettability and a smooth, spatter-free bead profile with Ar/CO₂ mixed shielding gas.
- AWS Classification: ER308L per AWS A5.9/A5.9M
- Carbon: 0.03% max
- Chromium: 19.5–22.0%
- Nickel: 9.0–11.0%
- Manganese: 1.0–2.5%
- Silicon: 0.65–1.00%
- Phosphorus: 0.03% max
- Sulfur: 0.03% max
- Diameter: 1/16 in (1.6 mm)
- Package: 33 lb spool
- Tensile Strength (as-welded): ≥85,000 psi (586 MPa)
- Yield Strength: ≥55,000 psi (379 MPa)
- Elongation: ≥35%
- Ferrite Number: 4–12 FN (controlled for hot-crack resistance)
The 1/16 in (1.6 mm) wire diameter delivers high deposition rates with spray transfer, making it ideal for flat and horizontal heavy-gauge stainless work:
- Food and Beverage Processing Tanks: Large-diameter storage and process tanks in 304/304L stainless sheet and plate. The 1/16 in wire with spray transfer provides the high deposition rates needed to complete large-diameter welds economically while maintaining the smooth, passivatable bead surface required by 3-A sanitary standards.
- Pressure Vessel Fabrication: Shell seams, nozzle welds, and support saddle connections on ASME Section VIII pressure vessels in 304/304L stainless. High deposition rate reduces fabrication time on shell-to-head welds where multiple fill passes are needed on plate 1/2 in and thicker.
- Structural Stainless Steel Fabrication: Beams, columns, braces, and hangers in 304 stainless plate for chemical plants, water treatment facilities, and marine environments. Flat position welding on structural members takes full advantage of the 1/16 in wire's deposition efficiency.
- Chemical and Petrochemical Equipment: Agitators, reactor vessel shells, separator internals, and heat exchanger headers in 304/304L stainless where continuous high-duty-cycle welding in a flat or horizontal position is the production mode.
- Pulp and Paper Equipment: Bleach plant vessels, digester headers, and process piping flanges in 304L stainless where corrosion resistance in mildly chlorinated environments is required without the molybdenum addition of 316L.
At 1/16 in diameter, Blue Max 308L is designed for spray transfer with argon-rich shielding gas mixtures. Spray transfer produces a consistent, low-spatter deposit with excellent fusion and a smooth, radiographically sound bead profile — critical for pressure vessel and food-grade stainless applications.
- Primary recommendation: 98% Argon / 2% Oxygen (Ar+2%O₂). This is the standard Lincoln Electric recommendation for stainless steel MIG — oxygen stabilizes the arc in spray transfer mode while minimizing oxidation tint on the bead surface. 2% O₂ is the maximum oxygen addition recommended; higher percentages increase oxidation of chromium in the HAZ.
- Alternate: 90% Ar / 10% CO₂ (C10). CO₂ content above 2–3% increases oxidation tint and may slightly reduce corrosion performance of the weld surface, but remains within ER308L deposit specification for most applications.
- Flow rate: 40–55 CFH for 1/16 in wire. Higher flow rates are needed for the larger spray transfer weld puddle — insufficient coverage causes porosity and gray, oxidized bead appearance.
- Do not use 100% CO₂ — this promotes carbide formation and increases oxidation beyond acceptable limits for stainless weld quality.
- Spray transfer threshold: ~26 V minimum with Ar-rich gas at 1/16 in diameter. Below this voltage, the wire shorts (short-circuit or globular transfer) producing high spatter and poor fusion profile on stainless.
- Recommended flat/horizontal range: 27–32 V / WFS 200–300 ipm
- Higher deposition (thick plate): Up to 32–35 V / WFS 250–350 ipm at current levels of 300–450 A
- CTWD: 3/4–1-1/4 in (19–32 mm). Longer CTWD increases stub resistance, effectively raising heat input at the same wire feed speed.
Maximum interpass temperature: 300 °F (149 °C). Check interpass temperature with a contact pyrometer or Tempilstik crayons between passes on multi-pass welds. Exceeding 300 °F interpass temperature on austenitic stainless increases sensitization risk and may affect the FN of subsequent passes.
- Store in original moisture-barrier spool packaging in a dry environment at 50–100 °F (10–38 °C). Blue Max 308L is shipped in heat-sealed foil bags with desiccant.
- Once the bag is opened, transfer the spool to the wire feeder immediately and seal the bag around the unused portion of the spool if the feeder compartment is not humidity-controlled.
- Inspect the first 12–24 in of wire that has been sitting in the conduit before production welding — run it off and discard. Conduit lubricant residue concentrated at the wire tip during idle periods can cause porosity and bead discoloration on the first weld of the shift.
- Wire spool storage: do not stack multiple spools — the weight of stacked spools can deform the spool flange and cause wire tangles that interrupt production. Store vertically or in individual spool racks.
Blue Max 308L 1/16 in MIG wire requires a CV power source with sufficient output for spray transfer at 1/16 in diameter (300–450 A range). Recommended Lincoln Electric platforms:
- Lincoln Power Wave S500 and R500 (advanced waveform control, pulse spray for stainless)
- Lincoln Power Wave AC/DC 1000 SD (submerged arc / heavy production MIG)
- Lincoln Invertec V350-Pro and V450-Pro
- Lincoln Idealarc CV-400 (legacy platform for stainless spray transfer)
- Lincoln Power MIG 350MP and 256 (mid-range production platforms)
Primary base metals:
- ASTM A240 Types 304 and 304L stainless plate and sheet (all gauges, flat/horizontal preferred for 1/16 in wire)
- ASTM A312 Type TP304/304L stainless pipe (flat/1G rotation position)
- ASTM A276 Type 304 bar and structural shapes
- ASME SA-240 304/304L (pressure vessel service)
Secondary base metals:
- 301, 302, 303, and 308 stainless (ER308L is acceptable per AWS A5.9 selection table for these grades)
- CF-8 and CF-8A castings (304/302 equivalent cast grades)
Q1: What is the difference between Blue Max 308L and standard ER308L MIG wire?
A: Lincoln Electric Blue Max® products are manufactured to tighter tolerance specifications than the basic AWS A5.9 ER308L classification. Blue Max 308L features tightly controlled silicon content (0.65–1.00%) for consistent arc performance, controlled ferrite number (4–12 FN), and dimensional accuracy (wire diameter ±0.001 in) that reduces wire-feeder variability in automated cells. For high-production stainless welding where arc consistency, low spatter, and predictable corrosion performance are required, Blue Max delivers tighter process control than generic commodity ER308L wire.
Q2: Why is 1/16 in MIG wire used instead of .045 in for stainless plate work?
A: The 1/16 in wire diameter requires higher minimum current for spray transfer (~280 A vs. ~175 A for .045 in), which means more heat input per pass and higher deposition rate. For flat position welding on plate 3/8 in and thicker, 1/16 in provides significantly faster fill times — reducing cost per foot of weld. For thinner materials (16 ga–3/16 in), .045 in or smaller is preferred because the lower minimum spray transition current allows better heat control and reduces distortion risk.
Q3: Can Blue Max 308L be pulsed on a Lincoln Power Wave?
A: Yes — Lincoln Power Wave platforms have pre-stored waveform data sets for Blue Max 308L at 1/16 in diameter. Pulse transfer with ER308L at 1/16 in allows out-of-position welding (3G, 4G) that would otherwise require globular or short-circuit transfer and its associated spatter. Consult Lincoln's WaveDesigner software or the WeldingMart.com application support team for the recommended Blue Max 308L 1/16 in pulse waveform parameters for your specific Power Wave model.
Q4: What causes porosity in ER308L MIG welds and how do I prevent it?
A: Common causes include: (1) moisture-contaminated wire or base metal surface — clean with acetone and allow material to reach room temperature; (2) shielding gas flow too low — increase to 40–55 CFH for 1/16 in wire; (3) drafts in the welding area — increase flow or use physical wind shields; (4) CO₂-heavy or nitrogen-containing shielding gas — use Ar+2%O₂ or Ar+10%CO₂; (5) excessive CTWD — stay within 3/4–1-1/4 in; (6) contaminated gas hose — replace hose if rust or debris is visible at the connections.
Q5: What shielding gas produces the least oxidation tint on Blue Max 308L welds?
A: 98% Ar + 2% O₂ produces the least oxidation tint and the brightest bead appearance on 304/304L stainless. The minimal oxygen addition stabilizes the spray arc while minimizing chromium oxide formation on the bead surface and adjacent HAZ. Ar + CO₂ mixtures with higher CO₂ content (C10–C25) produce noticeably more oxidation tint and require more post-weld cleaning and passivation.
Q6: Does ER308L MIG wire pass ASME Section IX WPS qualification?
A: ER308L is an F6, A8 filler metal under ASME Section IX. A WPS qualified with ER308L at 1/16 in diameter qualifies for welding with ER308L in any diameter within the essential variable range per QW-404.33 (change of F-number not an essential variable). A qualification with .045 in diameter Blue Max 308L does not automatically qualify 1/16 in for all procedures — verify whether diameter change is an essential variable in the applicable WPS format (QW-404.33 exempts diameter changes that are not essential variables in most standard WPS formats).
Q7: What is the shelf life of Lincoln Blue Max 308L wire in a sealed spool package?
A: Lincoln Electric blue Max 308L spools have an indefinite shelf life when stored in the original sealed foil bag with desiccant in a dry environment below 100 °F (38 °C). Once opened, the wire should be used within 3–6 months if the spool is properly resealed or stored in a humidity-controlled environment. Wire showing surface rust, oxidation tint, or discoloration should be discarded — contaminated stainless MIG wire causes substandard bead appearance and may deposit weld metal outside the ER308L corrosion-resistance specification.
