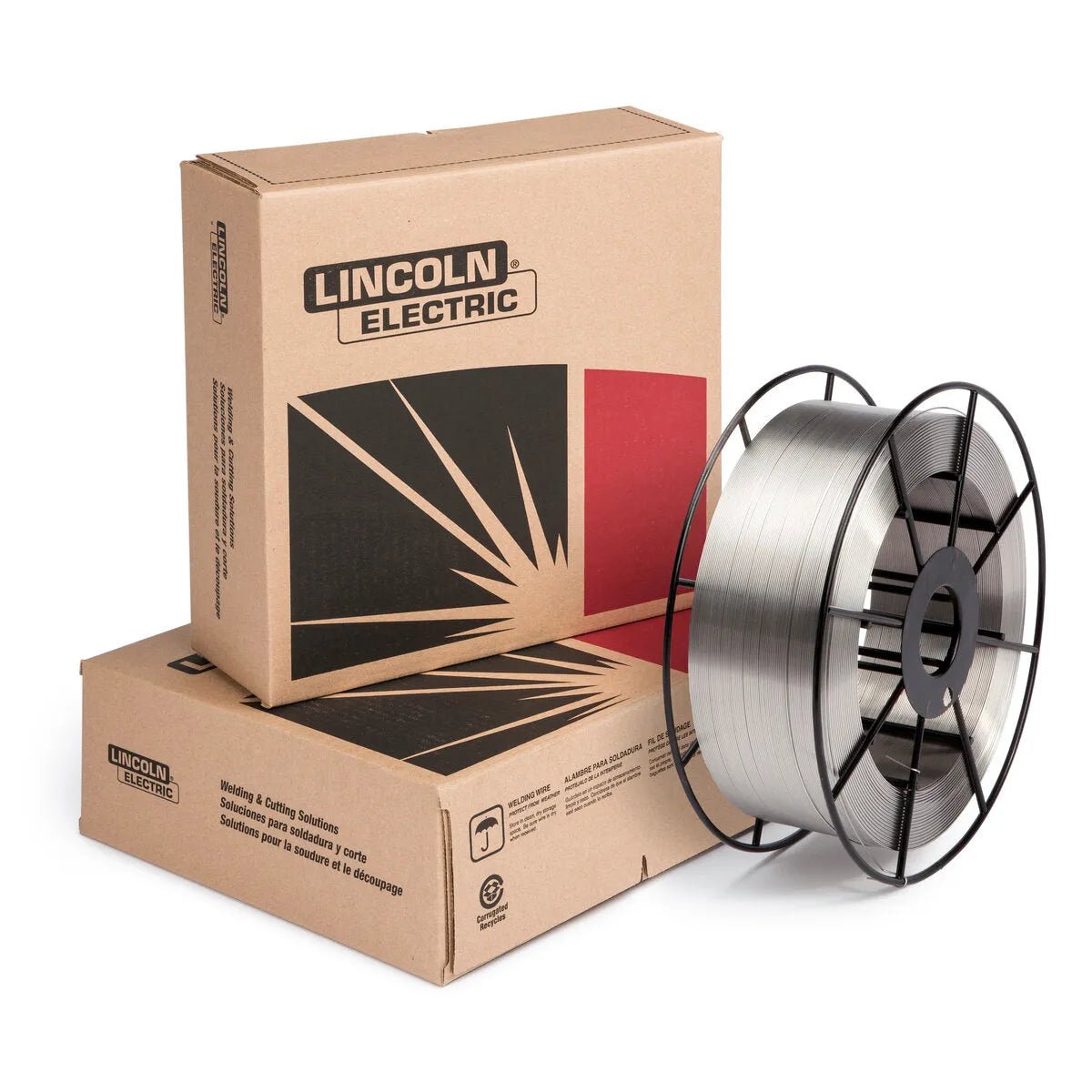

Lincoln ED035150 Blue Max 630 MIG GMAW Stainless Steel Welding Wire, 0.035 in, 33 lb Spool

SKU: ED035150
$767.06 $775.50
Lincoln Elite Dealer
Free Shipping
Lowest Price
BLUE MAX® MIG 630 is a precipitation hardening, martensitic stainless steel alloy designed for welding 17-4 PH and 15-5 stainless steels
AWS / Classification: AWS A5.9: ER630
Overview

BLUE MAX® MIG 630 0.035 inch welding wire is ideal for welding precipitation hardened stainless steels, heat treatment of material will obtain higher strength and greatly influence mechanical properties

Features
  • Q2 Lot® - Certified Material Test Report showing actual wire composition and Country of Origin of each lot is available online in the Certificate Center
  • Proprietary surface lubricant for steady feeding and arc stability leading to exceptional performance at high wire feed speeds
  • Heat treatment of material will obtain higher strength, and greatly influence mechanical properties
  • Precipitation hardening, martensitic stainless steel

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.9ER630
CWB CSA W48ER630
Classification %C%Cr%Cu%Mn%Mo%N%Nb%Ni%P%S%SiFerrite Number (Delong ©)Ferrite Number (WRC-1992 ©)
ER630 Requirement 0.05 max.16.00 - 16.753.25 - 4.000.25 - 0.750.75 max.0.15 - 0.304.5 - 5.00.03 max.0.03 max.0.75 max.
Typical Result 0.02-0.0316.48-16.603.43-3.600.57-0.580.09-0.140.02-0.040.22-0.254.6-4.70.020.003 max.0.44-0.462019
Diameter Shielding GasVoltage, voltsApprox. Current, amps
0.035 in (0.9 mm) 98% Ar / 2% CO226-29160-210
0.045 in (1.1 mm) 98% Ar / 2% CO228-32180-250
1/16" (1.6 mm) 98% Ar, 2% CO229-33200-280
LECO Diameter 0.035 in (0.9 mm)
LECO Package 33 lb Spool
Diameter (in) 0.035
Downloads
Includes
  • (1) 33 lb Spool
