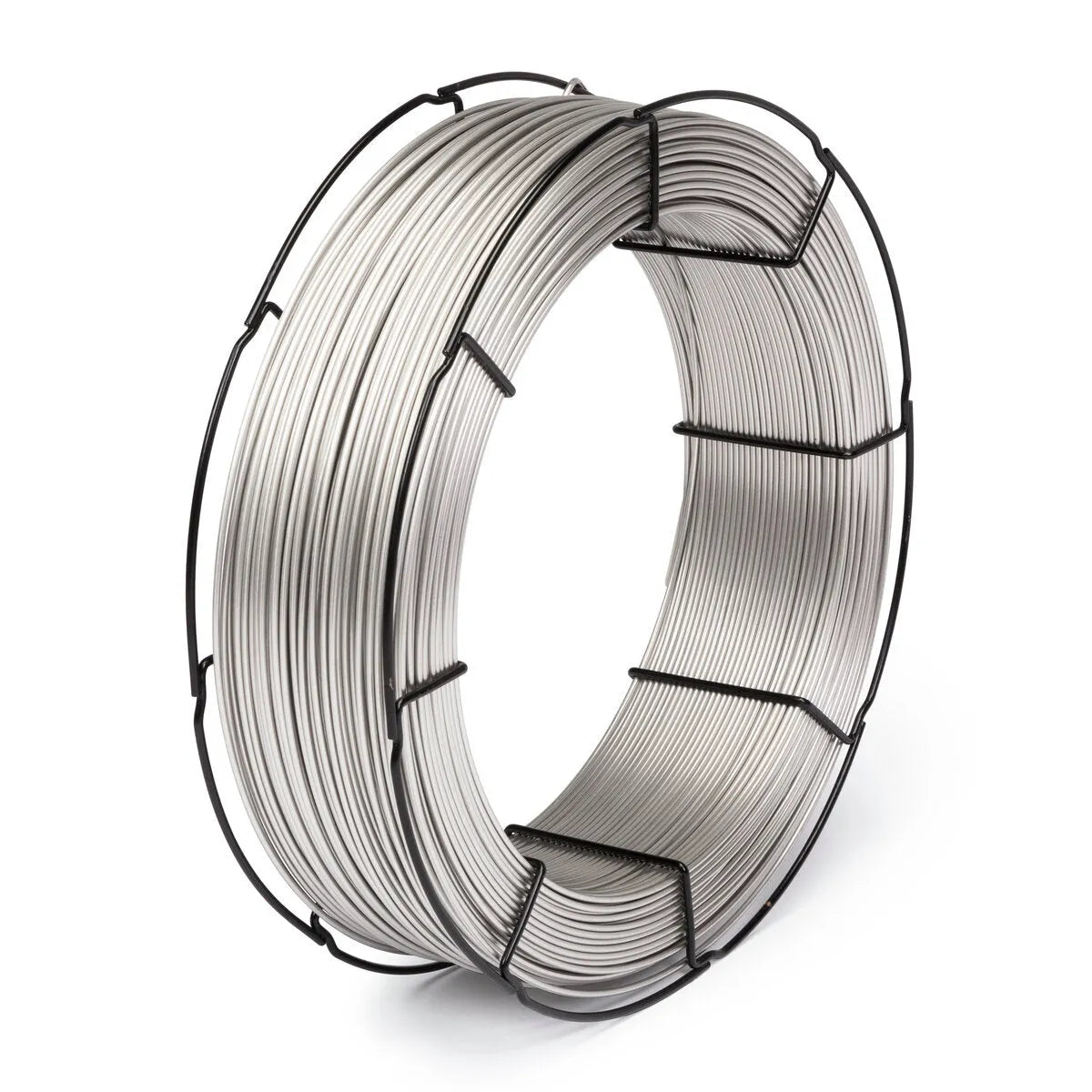

Lincoln ED035157 Lincolnweld 2594 Submerged Arc SAW Welding Wire, 1/8 in, 55 lb Spool

SKU: ED035157
$21,894.72 $22,786.50

Financing Options

•
Loading Affirm Estimate…
•
Lease-To-Own From $995/mo — 24-Mo Term, No Hard Credit Check
Lincoln Elite Dealer
Free Shipping
Lowest Price
Designed to weld duplex and super duplex stainless steel
AWS / Classification: AWS A5.9: ER2594
Overview
Lincoln ED035157 Lincolnweld 2594 Submerged Arc SAW Welding Wire, 1/8 in, 55 lb Spool

LINCOLNWELD® 2594 is a super-duplex grade electrode that provides matching chemistry and mechanical property characteristics to wrought super-duplex alloys such as 2507 and Zeron 100, as well as to super-duplex casting alloys (ATSM A890).

Features
  • A super-duplex grade electrode that provides matching chemistry and mechanical property characteristics to wrought super duplex alloys such as 2507 and Zeron 100, as well as to super-duplex casting alloys (ATSM A890)
  • The electrode is over-alloyed with nitrogen to provide the optimum ferrite/austenite ratio in the finished weld resulting in high tensile and yield strength and superior resistance to stress corrosion, cracking (SCC) and pitting corrosion
  • Q2 Lot® - Certificates showing actual wire chemistry available online
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.9 ER2594
ABS AWS A5.9 ER2594
CWB CSA W48 ER2594
Classification %C%Cr%Cu%Mn%Mo%N%Ni%P%S%Si%WFerrite Number (Delong ©)Ferrite Number (WRC-1992 ©)
ER2594 Requirement 0.03 max.24.0 - 27.01.5 max.2.5 max.2.5 - 4.50.20 - 0.308.0 - 10.50.03 max.0.02 max.1.0 max.1.0 max.Info. Only
Typical Result 0.01-0.0224.7-25.20.10.63.8-4.00.24-0.268.6-9.20.020.003 max.0.40.0 max.2845-50
Flux DiameterVoltage, voltsApprox. Current, amps
Lincolnweld® P2000™ 3/32" (2.4 mm)28-33275-350
Lincolnweld® P2000™ 1/8" (3.2 mm)29-32350-450
LECO Diameter 1/8 in (3.2 mm)
LECO Package 55 lb Spool
Diameter (in) 1/8
Includes
  • (1) 55 lb Spool
