What is the AWS classification of the Lincoln ED035173 Lincolnweld 310 Submerged Arc SAW Welding Wire, 3/32 in, 55 lb Spool?

The Lincoln ED035173 Lincolnweld 310 Submerged Arc SAW Welding Wire, 3/32 in, 55 lb Spool carries AWS ER310 classification. In SAW, the wire/flux combination determines the weld deposit chemistry and mechanical properties — the wire class and flux class are always specified together. Always verify the flux is approved for use with this wire in your Welding Procedure Specification (WPS).

Lincoln ED035173 Lincolnweld 310 Submerged Arc SAW Welding Wire, 3/32 in, 55 lb Spool

Q: How should I store the Lincoln ED035173 Lincolnweld 310 Submerged Arc SAW Welding Wire, 3/32 in, 55 lb Spool to maintain weld quality?

Store SAW wire in a clean, dry environment. Surface rust on SAW wire can introduce hydrogen into the weld deposit, increasing the risk of porosity and cold cracking in susceptible base materials. Lightly rusted wire can sometimes be cleaned with a dry cloth, but wire with heavy surface oxidation should be discarded. Keep wire coils sealed in their original packaging until ready for use and store at controlled room temperature with low humidity.

SKU: ED035173

$1,261.35 ~~$1,294.15~~

Financing Options

•

Loading Affirm Estimate…

•

Lease-To-Own From $57/mo — 24-Mo Term, No Hard Credit Check

Lincoln Elite Dealer

Free Shipping

Lowest Price

Austentic stainless for high temperatures and heat resistant applications

AWS / Classification: AWS A5.9: ER310

Overview

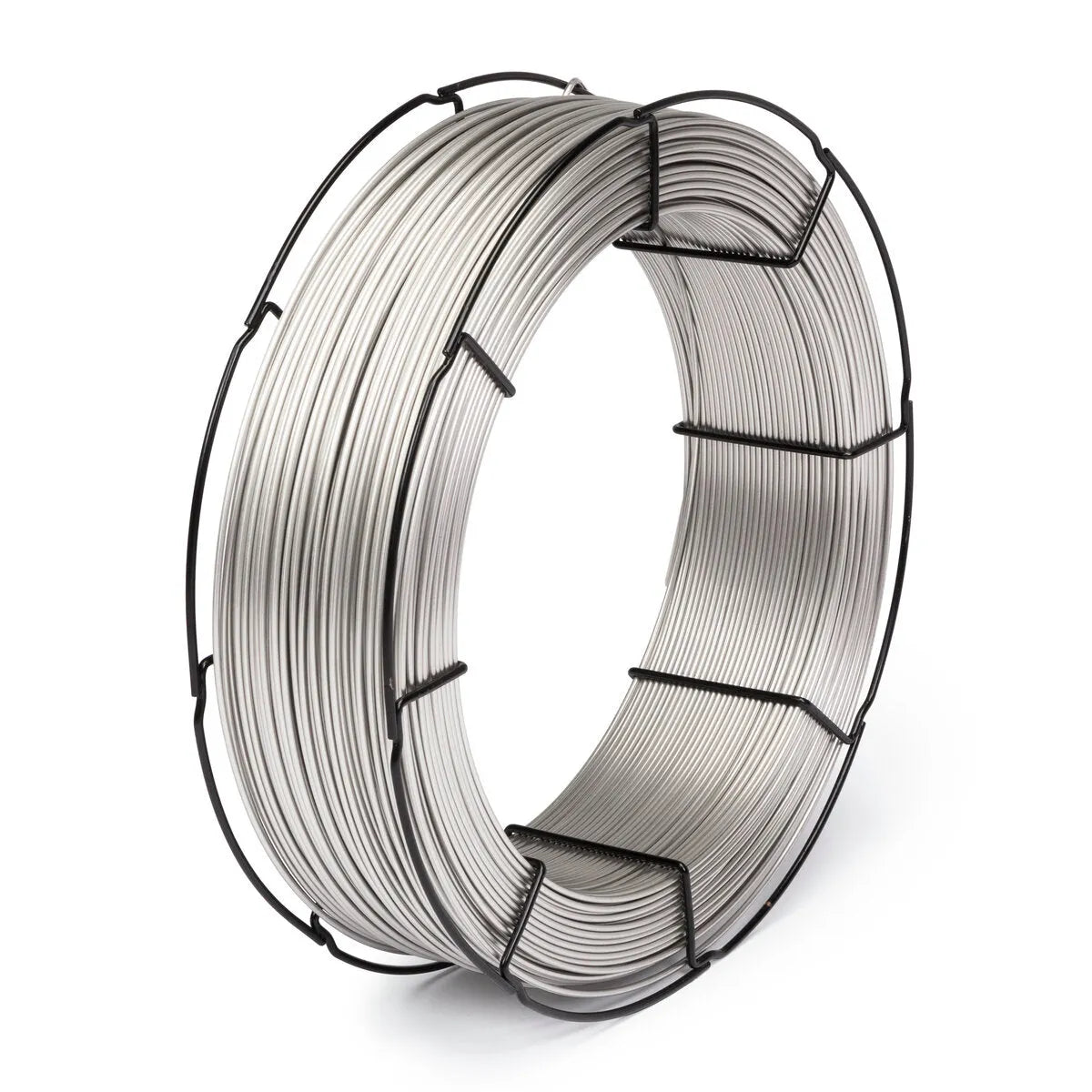

Lincoln ED035173 Lincolnweld 310 Submerged Arc SAW Welding Wire, 3/32 in, 55 lb Spool

LINCOLNWELD® 310 produces a fully austenitic weld deposit, low heat inputs are required to prevent cracking, often used for welding stainless steels of similar composition in cast and wrought forms.

Features

Austenitic stainless for high temperatures and heat resistant applications
Used for welding stainless steels of similar composition in cast and wrought forms
The weld deposit is fully austenitic, low heat inputs required to prevent cracking
Q2 Lot® - Certificates showing actual wire chemistry available online

Specifications

Feature	Value
CONFORMANCES	SPECIFICATIONCLASSIFICATION
AWS	AWS A5.9 ER310
ABS	AWS A5.9 ER310
CWB	CSA W48 ER310
MIL	MIL-E-19933E AMD1 MIL-310
Classification	%C%Cr%Cu%Mn%Mo%N%Nb%Ni%P%S%Si
ER310 Requirement	0.08 - 0.1525.0 - 28.00.75 max.1.0 - 2.50.75 max.Info. OnlyInfo. Only20.0 - 22.50.03 max.0.03 max.0.30 - 0.65
Typical Result	0.11-0.1225.7-26.00.02-0.071.5-1.80.07-0.130.01-0.030.01 max.20.8-21.20.010.003 max.0.38-0.40
Flux	DiameterVoltage, voltsApprox. Current, amps
Lincolnweld® P2007™	3/32" (2.4 mm)28-33275-350
LECO Diameter	3/32 in (2.4 mm)
LECO Package	55 lb Spool
Diameter (in)	3/32

Includes

(1) 55 lb Spool
