Lincoln Electric Lincolnweld 316/316L ED035174 5/64" – 55 lb

SKU: ED035174
$1,072.38 $1,102.20

Financing Options

•
Loading Affirm Estimate…
•
Lease-To-Own From $49/mo — 24-Mo Term, No Hard Credit Check
Lincoln Elite Dealer
Free Shipping
Lowest Price
Designed to be used primarily with basic fluxes that recover nearly all of the wire chromium in the deposit
AWS / Classification: AWS A5.9: ER316, AWS A5.9: ER316L
Overview

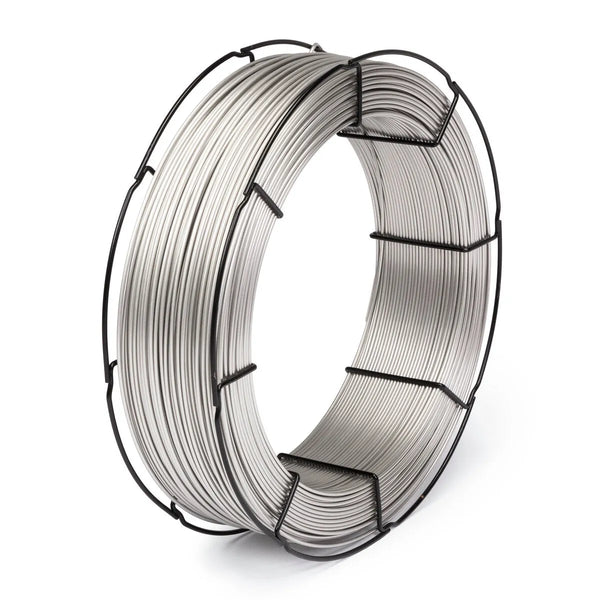

Lincoln ED035174 Lincolnweld 316/316L Submerged Arc SAW Welding Wire, 5/64 in, 55 lb Spool

LINCOLNWELD® 316/316L has a 2-3% molybdenum content which improves pitting corrosion resistance of the weld deposit, while the low carbon content reduces the possibility of carbide precipitation and intergranular corrosion.

Features
  • Designed to be used primarily with basic fluxes that recover nearly all of the wire chromium in the deposit
  • Low carbon content recommended where there is a risk of intergranular corrosion
  • The 2-3% molybdenum improves pitting corrosion resistance of the weld deposit
  • Low carbon content reduces the possibility of carbide precipitation and intergranular corrosion
  • Q2 Lot® - Certificate showing actual wire composition and calculated ferrite number (FN) available online

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.9ER316, ER316L
ISO ISO 14343-BSS316L
ABS AWS A5.9ER316, ER316L
CWB CSA W48ER316, ER316L
MIL MIL-E-19933E AMD1MIL-316L
Flux ClassificationYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %
Lincolnweld® P2007™ Typical Result390 (57)559 (81)39
Classification %C%Cr%Cu%Mn%Mo%N%Nb%Ni%P%S%SiFerrite Number (Delong ©)Ferrite Number (WRC-1992 ©)
ER316L Requirement 0.03 max.18.0 - 20.00.75 max.1.0 - 2.52.0 - 3.0Info. OnlyInfo. Only11.0 - 14.00.03 max.0.03 max.0.30 - 0.65Info. OnlyInfo. Only
Typical Result 0.01-0.0218.5-19.10.03-0.131.4-1.82.2-2.60.03-0.040.01 max.11.8-12.30.020.01 max.0.32-0.408-127-11
Diameter Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, amps
5/64 in (2.0 mm) 2.0-6.1 (80-240)24-30190-500
3/32 in (2.4 mm) 1.5-5.3 (60-210)26-32195-575
1/8 in (3.2 mm) 0.9-2.8 (35-110)28-34200-700
5/32 in (4.0 mm) 0.8-1.9 (30-75)30-36320-775
LECO Diameter 5/64 in (2.0 mm)
LECO Package 55 lb Spool
Diameter (in) 5/64
Includes
  • (1) 55 lb Spool
