What is the AWS classification of the Lincoln ED035187 Lincolnweld 385 Submerged Arc SAW Welding Wire, 3/32 in, 55 lb Spool?

The Lincoln ED035187 Lincolnweld 385 Submerged Arc SAW Welding Wire, 3/32 in, 55 lb Spool carries AWS ER385 classification. In SAW, the wire/flux combination determines the weld deposit chemistry and mechanical properties — the wire class and flux class are always specified together. Always verify the flux is approved for use with this wire in your Welding Procedure Specification (WPS).

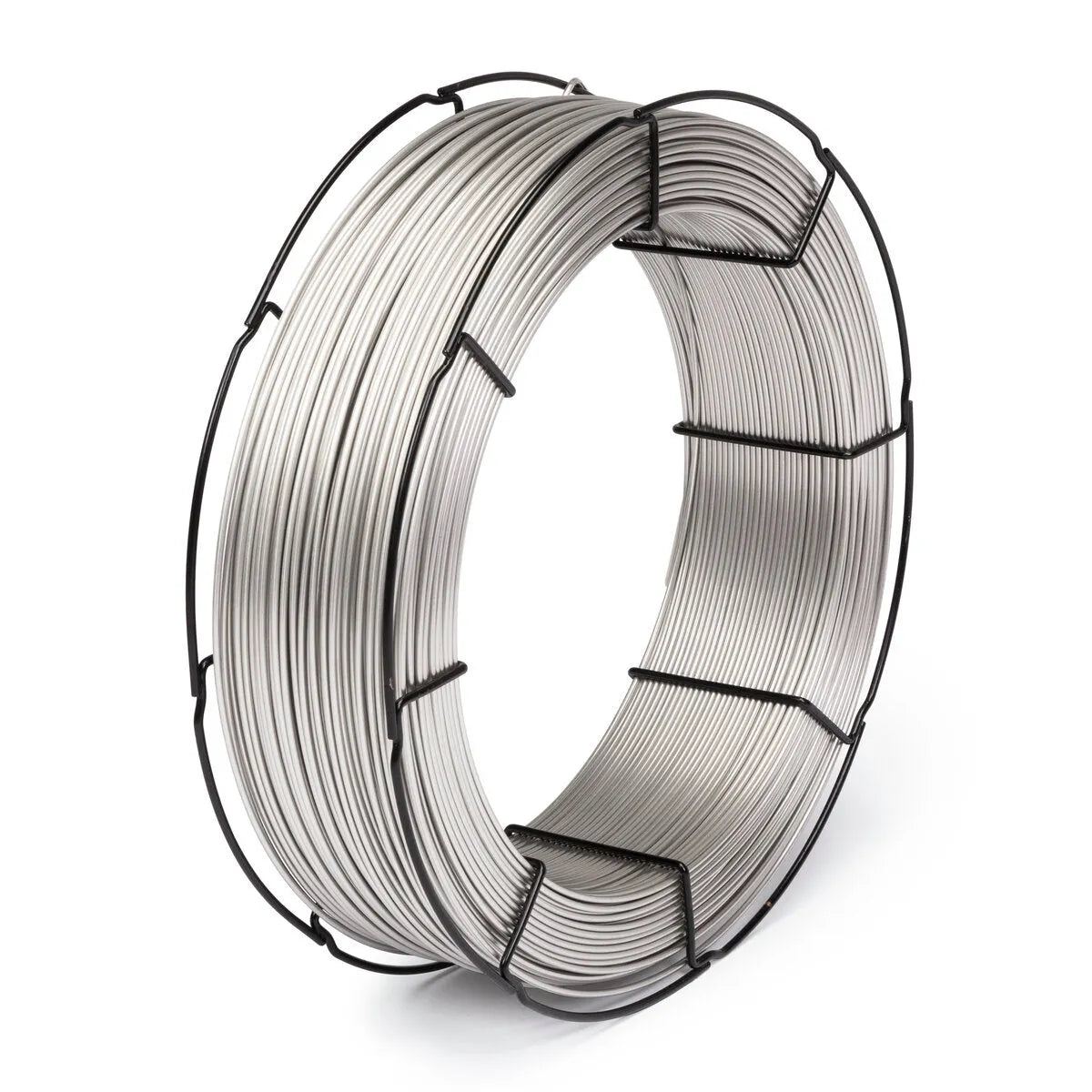

Lincoln ED035187 Lincolnweld 385 Submerged Arc SAW Welding Wire, 3/32 in, 55 lb Spool

Q: How should I store the Lincoln ED035187 Lincolnweld 385 Submerged Arc SAW Welding Wire, 3/32 in, 55 lb Spool to maintain weld quality?

Store SAW wire in a clean, dry environment. Surface rust on SAW wire can introduce hydrogen into the weld deposit, increasing the risk of porosity and cold cracking in susceptible base materials. Lightly rusted wire can sometimes be cleaned with a dry cloth, but wire with heavy surface oxidation should be discarded. Keep wire coils sealed in their original packaging until ready for use and store at controlled room temperature with low humidity.

SKU: ED035187

$1,329.57 ~~$1,477.30~~

Financing Options

•

Loading Affirm Estimate…

•

Lease-To-Own From $60/mo — 24-Mo Term, No Hard Credit Check

Lincoln Elite Dealer

Free Shipping

Lowest Price

Used for welding materials of similar chemical composition (Type 904L)

AWS / Classification: AWS A5.9: ER385

Overview

Lincoln ED035187 Lincolnweld 385 Submerged Arc SAW Welding Wire, 3/32 in, 55 lb Spool

LINCOLNWELD® 385 produces a fully austenitic weld deposit and must be done with low heat input using a stringer bead technique.

Features

Weld metal is fully austenitic and must be done with low heat input using a stringer bead technique
Q2 Lot® - Certificates showing actual wire chemistry available online

Specifications

Feature	Value
CONFORMANCES	SPECIFICATIONCLASSIFICATION
AWS	AWS A5.9 ER385
Classification	%C%Cr%Mn%Mo%N%Nb%Ni%P%S%Si%Total Cu
ER385 Requirement	0.025 max.19.5 - 21.51.0 - 2.54.2 - 5.2Info. OnlyInfo. Only24.0 - 26.00.02 max.0.03 max.0.50 max.1.2 - 2.0
Typical Result	0.011-0.01319.9-20.31.6-1.84.2-4.50.050.01 max.25.1-25.20.01-0.020.003 max.0.32-0.341.3-1.5
Flux	DiameterVoltage, voltsApprox. Current, amps
Lincolnweld® P2000™	3/32" (2.4 mm)28-33275-350
LECO Diameter	3/32 in (2.4 mm)
LECO Package	55 lb Spool
Diameter (in)	3/32

Includes

(1) 55 lb Spool
