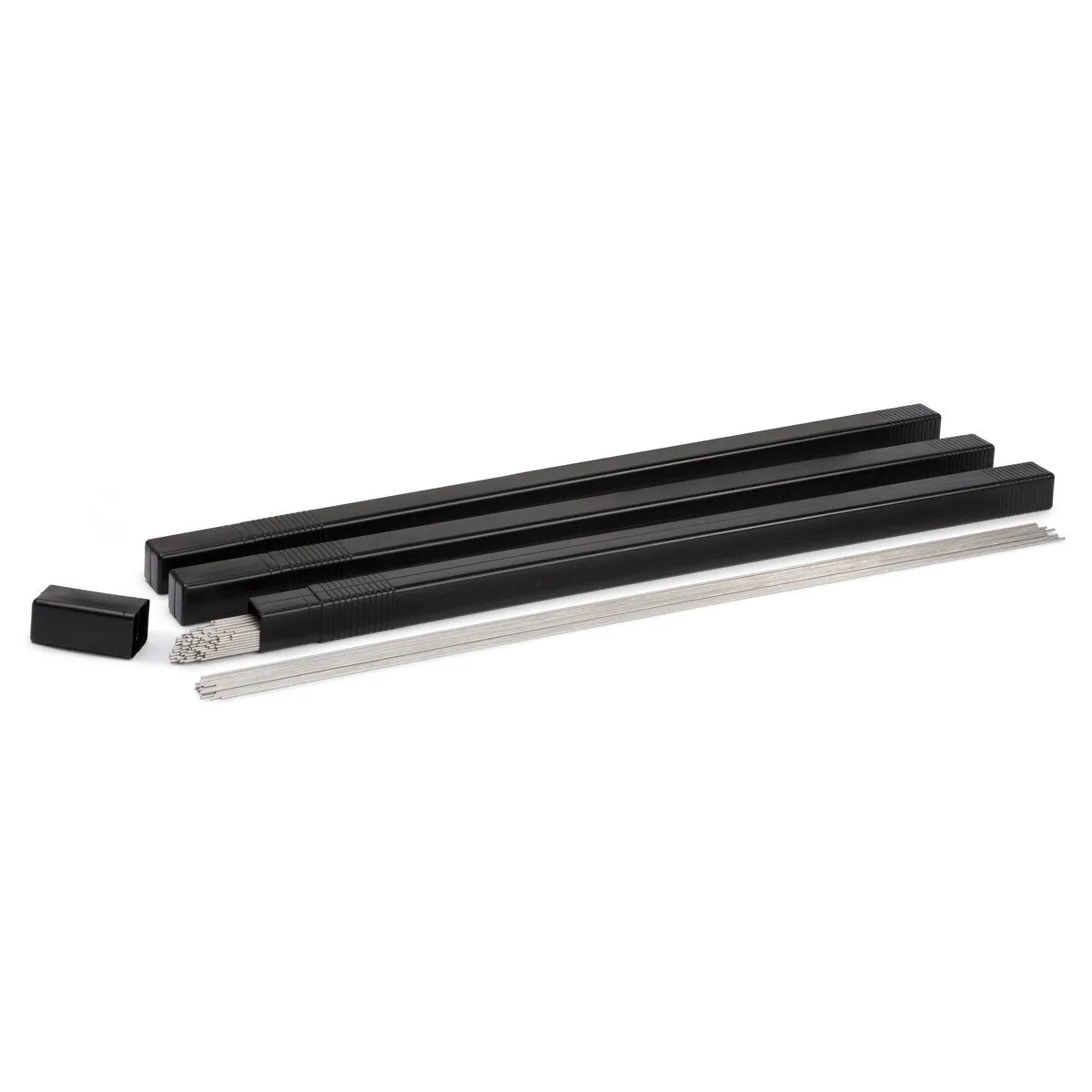

Lincoln ED035191 Lincoln ER2209 TIG GTAW Welding Rod, 1/16 in, 10 lb Tube

SKU: ED035191
$243.53 $251.70
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
LINCOLN® ER2209 Tungsten Inert Gas Rod is designed so the microstructure of the weld metal consists of austenite and ferrite.
AWS / Classification: AWS A5.9: ER2209
Overview
Lincoln ED035191 Lincoln ER2209 TIG GTAW Welding Rod, 1/16 in, 10 lb Tube

LINCOLN® ER2209 provides excellent resistance to stress corrosion, cracking and pitting. Welding of duplex stainless calls for controlled welding parameters to achieve specified mechanical and corrosion resistant properties.

Features
  • The welds offer excellent resistance to stress corrosion, cracking and pitting
  • The microstructure of the weld metal consists of austenite and ferrite
  • The ferrite content of the weld metal will be lower than the ferrite content of type 2205 base metal
  • Welding of duplex stainless steels calls for controlled welding parameters to achieve specified mechanical and corrosion resistant properties
  • Ink jet printing identification on entire length of electrode
  • Q2 Lot® - Certificate showing actual wire composition and calculated ferrite number (FN) available online

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.9ER2209
ABS AWS A5.9ER2209
Classification %C%Cr%Cu%Mn%Mo%N%Ni%P%S%SiFerrite Number (Delong ©)Ferrite Number (WRC-1992 ©)
ER2209 Requirement 0.03 max.21.5 - 23.50.75 max.0.50 - 2.002.5 - 3.50.08 - 0.207.5 - 9.50.03 max.0.03 max.0.90 max.
Typical Result 0.0122.7-22.90.04-0.091.53-1.603.10.15-0.168.3-8.50.020.003 max.0.52-0.583254-60
LECO Diameter 1/16 in (1.6 mm)
LECO Package (3) 10 lb Tube
Diameter (in) 1/16
Length (in) 36
Includes
  • (3) 10 lb Tube
