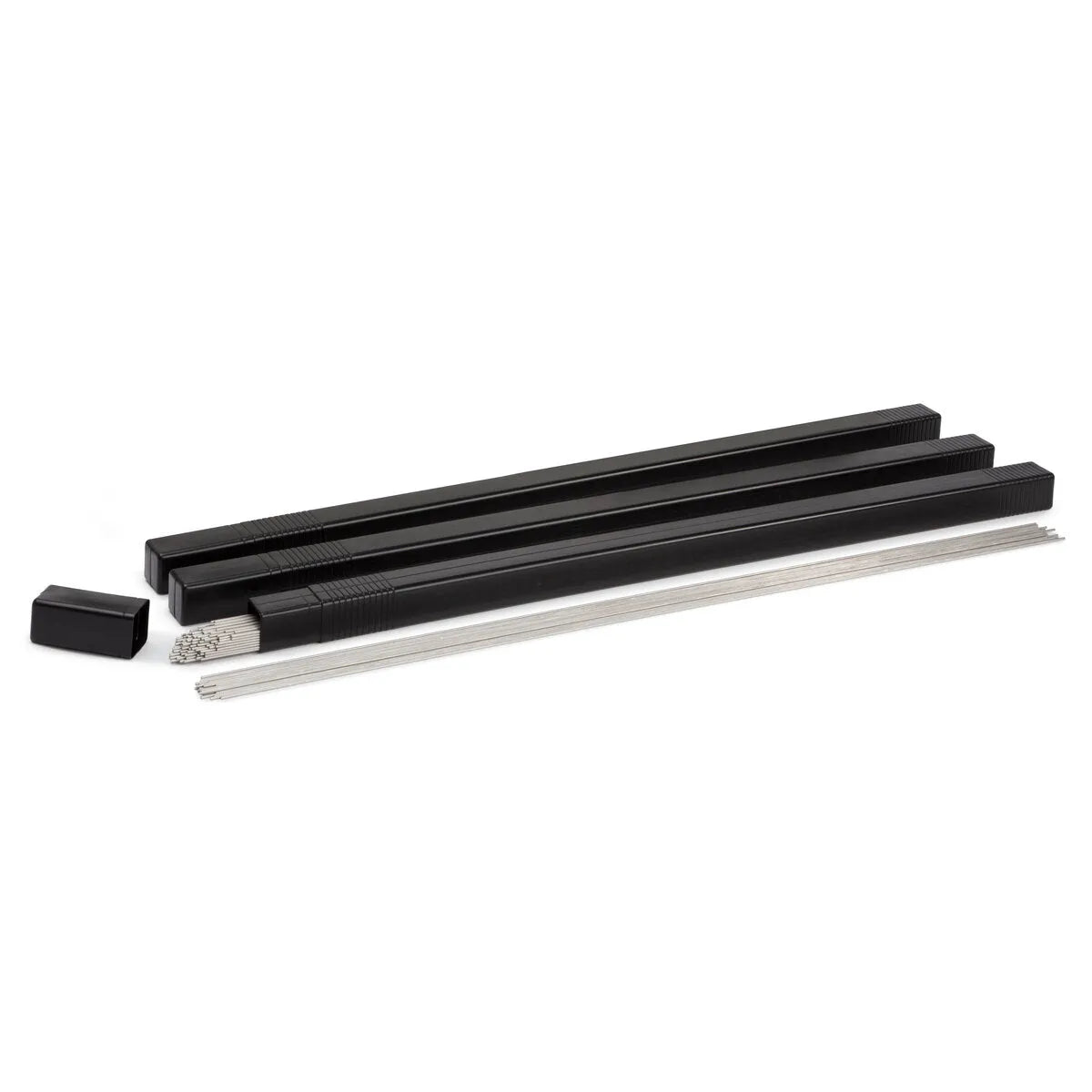

Lincoln ED035196 Lincoln ER2594 TIG GTAW Welding Rod, 1/8 in, 10 lb Tube

SKU: ED035196
$407.88 $425.50
Lincoln Elite Dealer
Free Shipping
Lowest Price
LINCOLN® ER2594 Tungsten Inert Gas Rod is a super-duplex grade electrode that provides matching chemistry and mechanical property characteristics to wrought super-duplex alloys such as 2507 and Zeron 100, as well as to super-duplex casting alloys (ATSM A890).
AWS / Classification: AWS A5.9: ER2594
Overview
Lincoln ED035196 Lincoln ER2594 TIG GTAW Welding Rod, 1/8 in, 10 lb Tube

LINCOLN® ER2594 electrode is over-alloyed with nitrogen to provide the optimum ferrite/austenite ratio in the finished weld resulting in high tensile and yield strength and superior resistance to stress corrosion, cracking (SCC) and pitting corrosion.

Features
  • A super-duplex grade electrode that provides matching chemistry and mechanical property characteristics to wrought super duplex alloys such as 2507 and Zeron 100, as well as to super-duplex casting alloys (ATSM A890)
  • The electrode is over-alloyed with nitrogen to provide the optimum ferrite/austenite ratio in the finished weld resulting in high tensile and yield strength and superior resistance to stress corrosion, cracking (SCC) and pitting corrosion
  • Ink jet printing identification on entire length of electrode
  • Q2 Lot® - Certificate showing actual wire composition and calculated ferrite number (FN) available online

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.9ER2594
ABS AWS A5.9ER2594
Classification %C%Cr%Cu%Mn%Mo%N%Ni%P%S%Si%WFerrite Number (Delong ©)Ferrite Number (WRC-1992 ©)
ER2594 Requirement 0.03 max.24.0 - 27.01.5 max.2.5 max.2.5 - 4.50.20 - 0.308.0 - 10.50.03 max.0.02 max.1.0 max.1.0 max.
Typical Result 0.01-0.0224.8-25.20.10.63.9-4.00.24-0.268.6-9.10.020.003 max.0.40.0 max.2845-50
LECO Diameter 1/8 in (3.2 mm)
LECO Package (3) 10 lb Tube
Diameter (in) 1/8
Length (in) 36
Includes
  • (3) 10 lb Tube
