What is the AWS classification of the Lincoln Wearshield Super Rail SMAW 3/16x14 10 lb?

The Lincoln Wearshield Super Rail SMAW 3/16x14 10 lb carries AWS E-Fe5 classification. The AWS electrode classification system encodes the electrode's minimum tensile strength (first two digits, in ksi), recommended positions (third digit), and coating/current type (fourth digit). For example, E7018 = 70 ksi tensile minimum, all-position, iron powder low-hydrogen coating, AC or DC+.

What diameter is the Lincoln Wearshield Super Rail SMAW 3/16x14 10 lb available in, and what amperage does each require?

The Lincoln Wearshield Super Rail SMAW 3/16x14 10 lb is available in 3/16 diameter. Electrode diameter selection depends on base metal thickness and joint design: 3/32 in suits 1/16–3/16 in material (40–80A), 1/8 in covers 3/16–3/8 in (80–130A), 5/32 in suits 5/16–1/2 in (110–165A), and 3/16 in+ suits heavy plate over 1/2 in. Always check the electrode manufacturer's current range recommendations for the specific AWS class.

What polarity and current type does the Lincoln Wearshield Super Rail SMAW 3/16x14 10 lb require?

E6010 and E6011 electrodes run on DC+ (direct current, electrode positive) and are designed for cellulosic coatings that generate deep penetrating, fast-freeze arcs — preferred for root passes on pipe and out-of-position work. E6013 runs on AC or DC and is a general-purpose electrode for light fabrication. E7018 is a low-hydrogen iron powder electrode that runs on AC or DC+ — it produces high-quality, low-hydrogen deposits for critical structural and code welding. Never substitute electrode types without understanding the current/polarity requirements.

How should I store low-hydrogen stick electrodes like the Lincoln Wearshield Super Rail SMAW 3/16x14 10 lb?

Low-hydrogen electrodes (E7018, E7016, E8018, etc.) must be stored in a rod oven at 250–300°F after opening to maintain low hydrogen content. Electrodes that have been exposed to moisture for more than 2–4 hours should be re-dried per AWS D1.1 recondition procedures (typically 700–800°F for 1 hour for low-hydrogen electrodes). General-purpose (non-low-hydrogen) electrodes like E6013 are less moisture-sensitive but should still be kept dry. Never use visibly damp or rusted electrodes.

What package sizes is the Lincoln Wearshield Super Rail SMAW 3/16x14 10 lb available in?

The Lincoln Wearshield Super Rail SMAW 3/16x14 10 lb is available in 10 lb packages. Individual 1 lb packs suit occasional use; 5 lb and 10 lb cans are standard shop stock quantities; 50 lb master cartons are used for production and fleet purchasing. Low-hydrogen electrodes are packaged in hermetically sealed metal cans — once opened, transfer to a rod oven immediately to prevent moisture pickup.

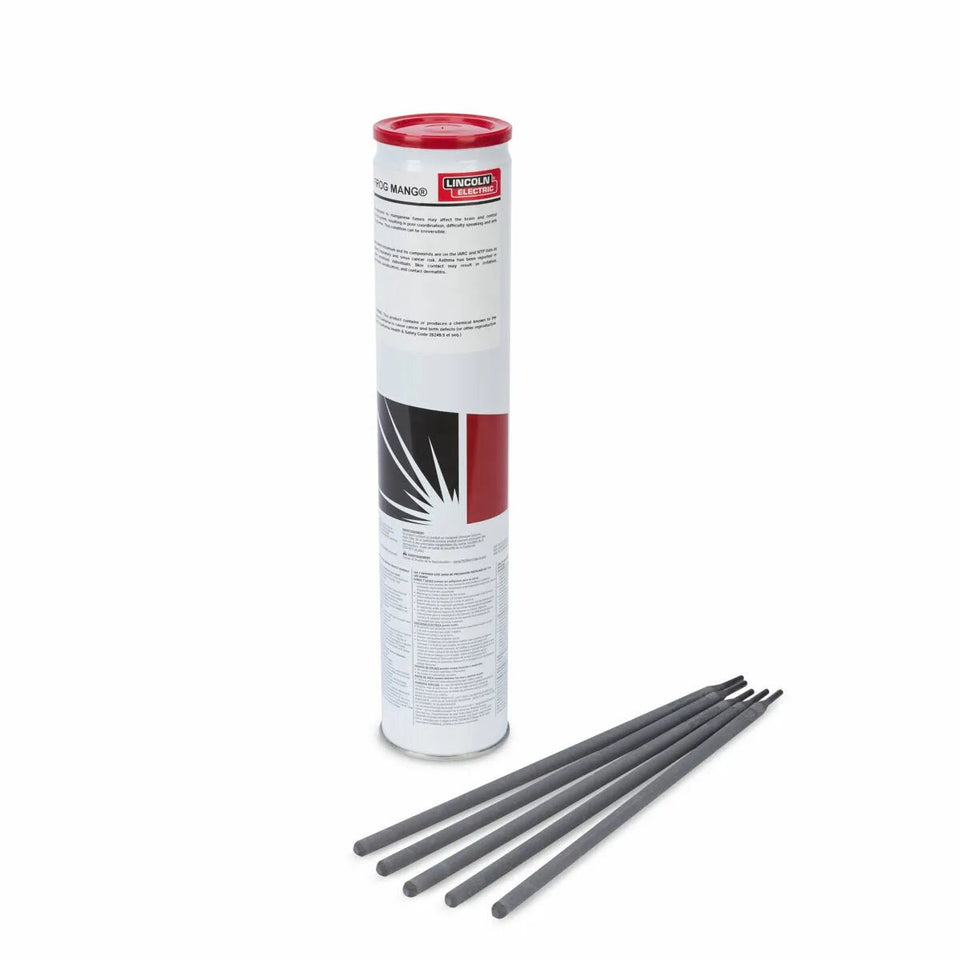

Lincoln Electric Stick Electrode – 10 lb

SKU: ED035352

$116.25 ~~$121.70~~

Size

Lincoln Elite Dealer

Free Shipping over $250

Lowest Price

WEARSHIELD® SUPER RAIL™ stick electrode is ideal for hardfacing of austenitic manganese alloys such as rail ends/points and rail crossing points. (Metal-to-Metal Wear)

Overview

The Lincoln Wearshield Super Rail Stick Electrode is a premium hardfacing SMAW electrode engineered for high-stress abrasion and impact applications in rail and heavy equipment industries. Wearshield electrodes build up worn rail, crossings, frogs, and other high-wear surfaces to restore original dimensions and extend service life.

Key Features:

AWS Classification: Hardfacing
Designed for rail and heavy abrasion hardfacing
High hardness deposit for extended wear resistance
Suitable for rail crossings, frogs, and switch components
Available in 3/16 x 14 in, 10 lb easy-open can (ED035352)

Lincoln Wearshield Super Rail is the industry standard for railroad maintenance welding. Its controlled hardness deposit and resistance to impact abrasion make it ideal for track maintenance crews and rail equipment rebuilders.

Shop Lincoln Wearshield hardfacing electrodes at WeldingMart.com — genuine Lincoln Electric products with fast shipping.

Specifications

Feature	Value
Classification	Hardness Rockwell C
Typical Result	40-60
Classification	Base MetalNumber of layer%C%Cr%Mn%Mo%Ni%Si
Typical Result	Mild Steel4 Layers1.0 max.5.0 max.5.0 max.1.0 max.3.0 max.2.0 max.
Diameter	PolarityCurrent, Amps
3/16" (4.8 mm)	AC185-210
3/16" (4.8 mm)	DC+175-210
LECO Diameter	3/16 x 14 in (4.8 x 350 mm)
LECO Package	(1) 10 lb Easy Open Can
Diameter (in)	3/16
Length (in)	14

Reviews

Q&A

Product Overview

Key Features:

AWS Classification: Hardfacing
Designed for rail and heavy abrasion hardfacing
High hardness deposit for extended wear resistance
Suitable for rail crossings, frogs, and switch components
Available in 3/16 x 14 in, 10 lb easy-open can (ED035352)

Shop Lincoln Wearshield hardfacing electrodes at WeldingMart.com — genuine Lincoln Electric products with fast shipping.

Specifications

Feature	Value
Classification	Hardness Rockwell C
Typical Result	40-60
Classification	Base MetalNumber of layer%C%Cr%Mn%Mo%Ni%Si
Typical Result	Mild Steel4 Layers1.0 max.5.0 max.5.0 max.1.0 max.3.0 max.2.0 max.
Diameter	PolarityCurrent, Amps
3/16" (4.8 mm)	AC185-210
3/16" (4.8 mm)	DC+175-210
LECO Diameter	3/16 x 14 in (4.8 x 350 mm)
LECO Package	(1) 10 lb Easy Open Can
Diameter (in)	3/16
Length (in)	14
