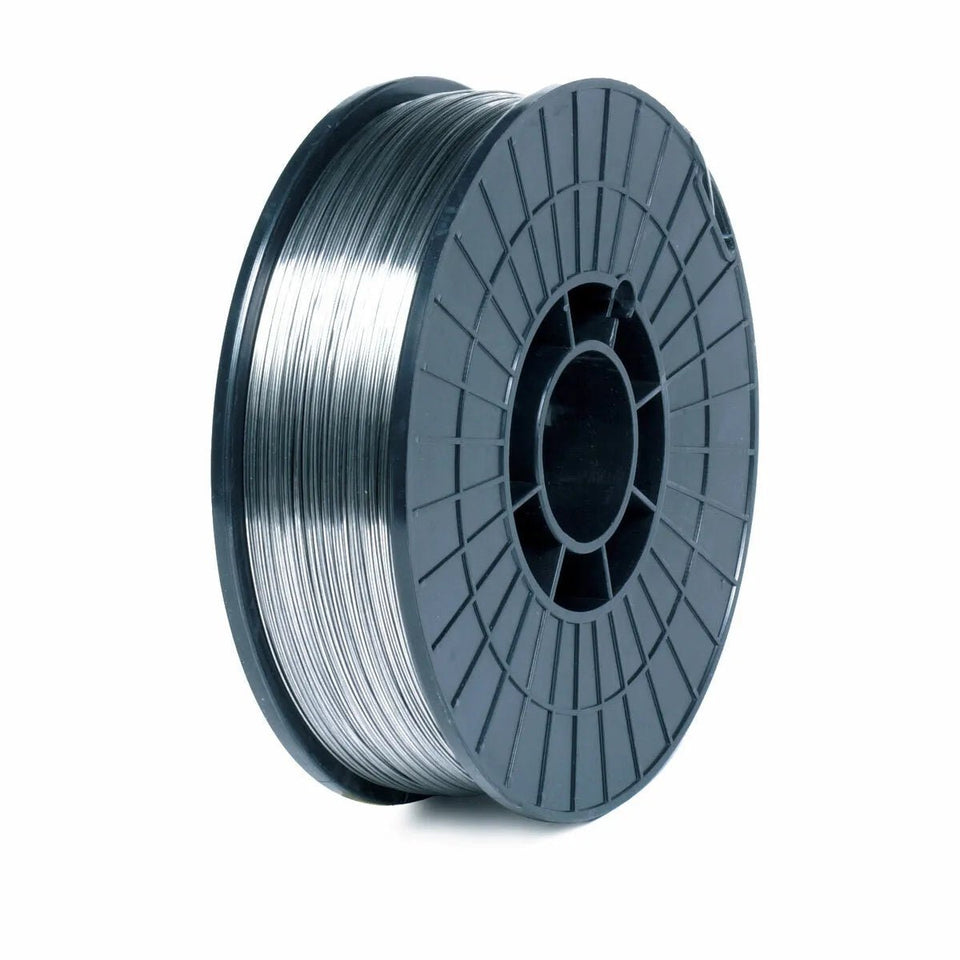

Lincoln ED035353 Lincore Super Rail Flux-Cored FCAW-S Welding Wire, 1/16 in, (4) 9 lb Plastic Spool

SKU: ED035353
$327.46 $400.68
Lincoln Elite Dealer
Free Shipping
Lowest Price
Lincore® Super Rail™ Flux-Cored (FCAW-S) Wire ideal for low material distortion on impact, Remove slag easily with hand tools and Work hardens faster without cracking (Severe Impact)
Overview

LINCORE® SUPER RAIL 1/16 inch welding wire provides low material distortion on severe impact, removes slag easily with hand tools and work hardens faster without cracking for consistent wire feeding with next generation lubrication technology.

Features
  • Reduce carbon steel repairs by 50%
  • Consistent wire feeding with next generation lubrication
  • Low material distortion on impact
  • Work hardens faster without cracking
  • Remove slag easily with hand tools

Specifications
FeatureValue
Classification %Al%C%Cr%Mn%Mo%Ni%Si
Typical Result 3.0 max.1.0 max.5.0 max.5.0 max.1.0 max.3.0 max.2.0 max.
Diameter PolarityESO, mm (in.)Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsDeposition Rate, kg/hr (lb/hr)
5/64 in (2.0 mm) DC+37 (1 1/2)3.2 (125)242187.0 (3.2)
5/64 in (2.0 mm) DC+37 (1 1/2)5.1 (200)2728211.1 (5.0)
5/64 in (2.0 mm) DC+37 (1 1/2)6.4 (250)3032713.9 (6.3)
1/16 in (1.6 mm) DC+25 (1)5.1 (200)252203.0 (6.7)
1/16 in (1.6 mm) DC+25 (1)6.4 (250)272504.0 (8.7)
1/16 in (1.6 mm) DC+25 (1)8.3 (325)293005.3 (11.6)
LECO Diameter 1/16 in (1.6 mm)
LECO Package (4) 9 lb Plastic Spool
Diameter (in) 1/16
Downloads
Includes
  • (4) 9 lb Plastic Spool
