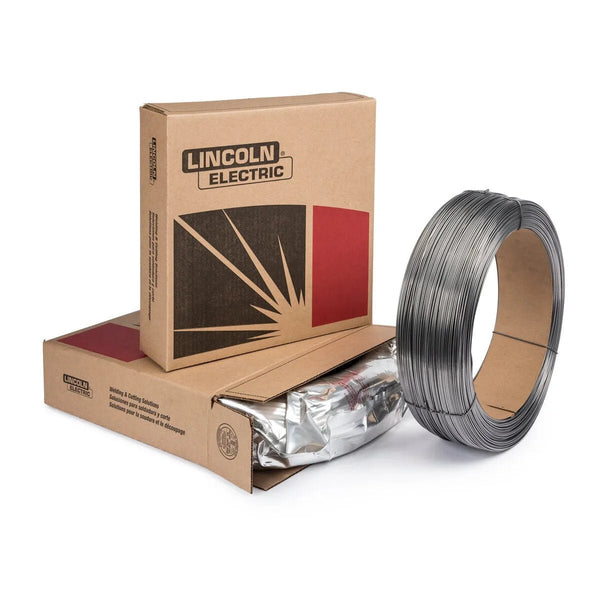

Lincoln Electric UltraCore 80Ni ED035766 Flux-Core Wire 5/64" – 50 lb

SKU: ED035766
$258.00 $316.50
Lincoln Elite Dealer
Free Shipping
Lowest Price
UltraCore® 80Ni1C from Lincoln Electric has excellent operator appeal and slag detachability.
AWS / Classification: E80T1-Ni1C-JH8, E80T1-C1A4-Ni1-H8
Overview

Excellent operator appeal and slag detachability.

Features
  • High deposition in the flat and horizontal positions
  • Excellent operator appeal and slag detachability
  • Designed for welding with 100% CO2 shielding gas
  • ProTech® foil bag packaging

Typical Applications

  • Structural fabrication
  • Heavy equipment
  • Shipbuilding

Welding Positions

  • Flat/Horizontal

Shielding Gas

  • 100% CO2

Specifications
FeatureValue
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -40°C (-40°F)
E80T1-Ni1C-JH8 Requirement 100% CO2DC+470 (68) min.550-690 (80-100)19 min.27 (20) min.
E80T1-C1A4-Ni1-H8 Requirement 100% CO2DC+470 (68) min.550-690 (80-100)19 min.27 (20) min.
Typical Result, As-welded 100% CO2DC+540-600 (78-87)610-670 (88-96)24-2828-84 (21-62)
Classification Shielding GasPolarity%B%C%Cr%Mn%Mo%Ni%P%S%Si%VDiffusible Hydrogen, mL/100g Weld Metal
E80T1-Ni1C-JH8 Requirement 100% CO2DC+0.12 max.0.15 max.1.50 max.0.35 max.0.80 - 1.100.030 max.0.030 max.0.80 max.0.05 max.8.0 max.
E80T1-C1A4-Ni1-H8 Requirement 100% CO2DC+0.12 max.0.15 max.1.75 max.0.35 max.0.80 - 1.100.030 max.0.030 max.0.80 max.0.05 max.8 max.
Typical Result 100% CO2DC+0.002-0.0040.04-0.080.09 max.1.29-1.450.01 max.0.80-1.030.016 max.0.010 max.0.52-0.580.03 max.1-8
Diameter Shielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)Deposition Rate, kg/hr (lb/hr)Efficiency, %
1/16 in (1.6 mm) 100% CO2DC+25 (1)3.2 (125)23-271552.2 (4.8)2.0 (4.4)84 - 89
1/16 in (1.6 mm) 100% CO2DC+25 (1)6.4 (250)25-292504.5 (9.9)4.0 (8.8)84 - 89
1/16 in (1.6 mm) 100% CO2DC+25 (1)9.5 (375)28-323256.8 (14.9)6.0 (13.2)84 - 89
5/64 in (2.0 mm) 100% CO2DC+25 (1)3.2 (125)23-272403.5 (7.8)3.1 (6.8)84 - 88
5/64 in (2.0 mm) 100% CO2DC+25 (1)5.7 (225)25-293506.4 (14.0)5.5 (12.2)84 - 88
5/64 in (2.0 mm) 100% CO2DC+31 (1 1/4)8.3 (325)27-323958.5 (18.6)7.5 (16.4)84 - 88
3/32 in (2.4 mm) 100% CO2DC+25 (1)3.2 (125)27-323205.4 (11.9)4.7 (10.3)87 - 89
3/32 in (2.4 mm) 100% CO2DC+31 (1 1/4)5.1 (200)28-334508.6 (19.0)7.6 (16.7)87 - 89
3/32 in (2.4 mm) 100% CO2DC+31 (1 1/4)6.4 (250)31-3758013.1 (28.8)11.4 (25.1)87 - 89
Note
⁽¹⁾ To estimate ESO, subtract 1/4 in. (6.0 mm) from CTWD.
LECO Diameter 5/64 in (2.0 mm)
LECO Package 50 lb Coil
Diameter (in) 5/64
Downloads
Includes
  • (1) 50 lb Coil
