Lincoln Electric Lincolnweld ED035892 Submerged Arc Wire – 50 lb

SKU: ED035892
$276.60 $339.50
Lincoln Elite Dealer
Free Shipping
Lowest Price
800 Series Neutral Flux
Overview

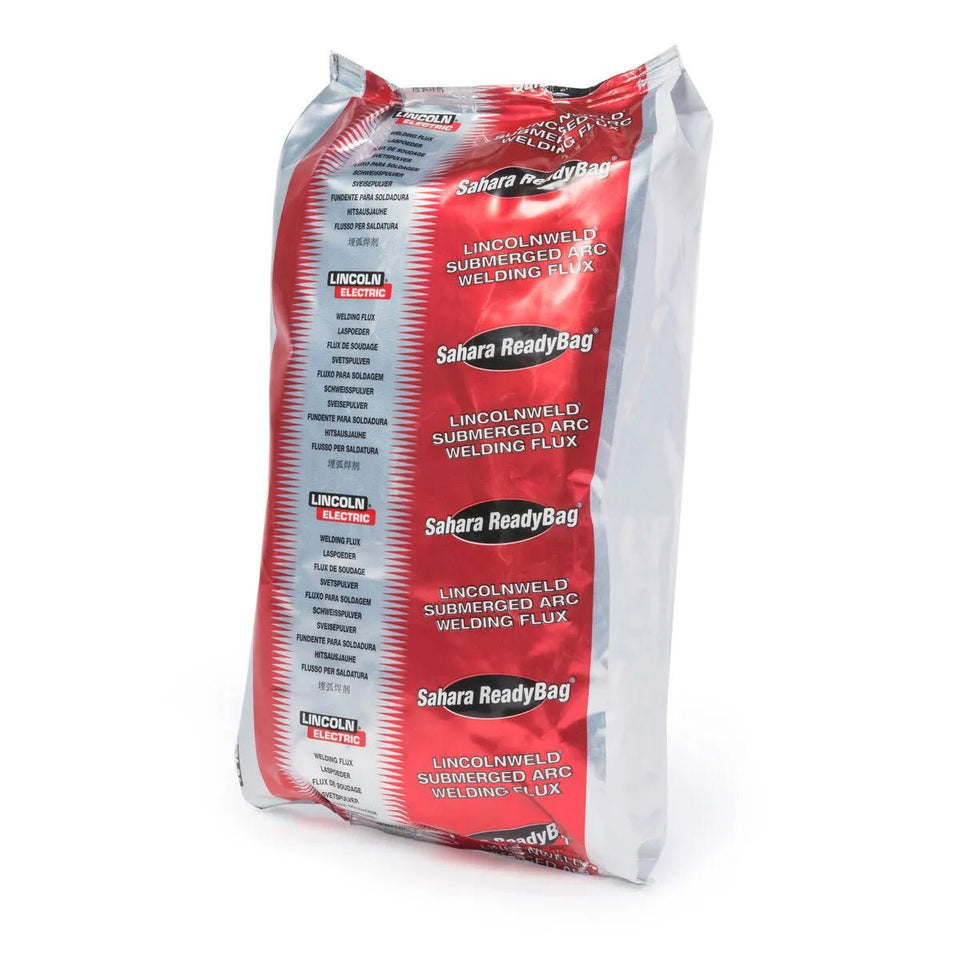

Lincoln ED035892 Lincolnweld MIL800-H Submerged Arc SAW Flux, 50 lb Bag

Features

Features
  • Capable of providing industry leading H2 diffusible hydrogen levels
  • Designed for low temperature applications
  • Recommended for both single and multiple arc welding of both butt and fillet welds
  • Actual (Type 3.1) certificates for each lot of flux showing chemical composition, particle size and moisture level are available in the certificate center of lincolnelectric.com
  • Mild Steel Lincolnweld® L-S3, LA-71 Low Alloy Steel Lincolnweld® LA-75, LA-85, LA-90, LA-93, LA-100
Typical Applications
  • HY-80 and HSLA-80 steels with Lincolnweld® LA-100 wire
  • Horizontal and flat fillet weld
  • Single and multiple arc welding
  • High strength or highly restrained weldments where delayed cracking is a concern
Special Features
  • Basicity Index: 3.2 Density: 1.3 g/cm3

Specifications
FeatureValue
Wire ClassificationPostweld Heat TreatmentYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)Charpy V-Notch, J (ft-lbs) @ -40°C (-40°F)Charpy V-Notch, J (ft-lbs) @ -50°C (-60°F)Charpy V-Notch, J (ft-lbs) @ -62°C (-80°F)
Lincolnweld® LA-100 F10A6-EM2-M2-H2As-welded660 (96)740 (107)25125 (92)
Lincolnweld® LA-100 F9P4-EM2-M2-H21 hour @ 605°C (1125°F)640 (93)720 (105)25110-122 (81-90)
Lincolnweld® LA-71 F7A6-EM14K-H2As-welded500 (72)610 (88)28127 (94)
Lincolnweld® LA-71 F7P6-EM14K-H21 hour @ 620°C (1150°F)440 (64)570 (82)30163 (120)
Lincolnweld® LA-75 F7A8-ENi1K-Ni1-H2As-welded470 (68)580 (84)30107 (79)
Lincolnweld® LA-81 (LNS 140TB) F9TA4G-EGAs-welded610 (89)740 (108)2431 (23)
Lincolnweld® LA-84 (LNS 164) F10A6-EF3-F3-H2As-welded640 (93)750 (109)23129 (95)
Lincolnweld® LA-84 (LNS 164) F9P6-EF3-F3-H21 hour @ 620°C (1150°F)610 (88)700 (102)26133 (98)
Lincolnweld® LA-85 (LNS 165) F8A8-ENi5-Ni5-H2As-welded530 (77)630 (91)28165 (122)
Lincolnweld® LA-85 (LNS 165) F8P8-ENi5-Ni5-H21 hour @ 620°C (1150°F)510 (74)610 (89)28127 (94)
Lincolnweld® LA-90 F9A6-EA3K-A3-H2As-welded630 (92)740 (108)2564 (47)
Lincolnweld® LA-90 F9P6-EA3K-A3-H21 hour @ 620°C (1150°F)600 (87)700 (102)25103 (76)
Lincolnweld® LA-93 (LNS 151) F9P2-EB3R-B3R-H21 hour @ 690°C (1275°F)600 (87)710 (102)2346 (34)
Lincolnweld® LAC-690 F11A6-ECG-G-H4As-welded760 (110)840 (122)16103 (76)
Lincolnweld® LAC-Ni2 F8A10-ECNi2-Ni2-H8As-welded570 (82)650 (95)2441 (30)
Lincolnweld® L-S3 (LNS133U,L50M) F7A8-EH12K-H2As-welded450 (65)550 (80)31232 (171)
Lincolnweld® L-S3 (LNS133U,L50M) F7P8-EH12K-H21 hour @ 620°C (1150°F)400 (58)520 (75)35308 (227)
Wire Classification%As%C%Cr%Cu%Mn%Mo%Ni%P%S%Sb%Si%Sn%Ti%Ti+V+ZrDiffusible Hydrogen, mL/100g Weld Metal
Lincolnweld® LA-100 F10A6-EM2-M2-H20.070.090.091.620.411.800.0090.0040.390.022
Lincolnweld® LA-100 F9P4-EM2-M2-H20.070.080.101.650.401.710.0110.0030.362
Lincolnweld® LA-71 F7A6-EM14K-H20.100.081.310.0140.0020.460.032
Lincolnweld® LA-71 F7P6-EM14K-H20.100.091.210.0130.0050.450.022
Lincolnweld® LA-75 F7A8-ENi1K-Ni1-H20.090.061.130.010.830.0140.0060.471
Lincolnweld® LA-81 (LNS 140TB) F9TA4G-EG0.070.080.171.440.360.080.0100.0050.27
Lincolnweld® LA-84 (LNS 164) F10A6-EF3-F3-H20.100.091.630.490.780.0080.0060.271
Lincolnweld® LA-84 (LNS 164) F9P6-EF3-F3-H20.100.091.630.490.800.0110.0050.281
Lincolnweld® LA-85 (LNS 165) F8A8-ENi5-Ni5-H20.090.111.360.210.850.0120.0030.241
Lincolnweld® LA-85 (LNS 165) F8P8-ENi5-Ni5-H20.100.121.350.190.800.0120.0030.241
Lincolnweld® LA-90 F9A6-EA3K-A3-H20.110.131.700.450.0100.0050.541
Lincolnweld® LA-90 F9P6-EA3K-A3-H20.110.131.690.450.0100.0050.531
Lincolnweld® LA-93 (LNS 151) F9P2-EB3R-B3R-H20.0010.082.320.110.711.050.0090.0040.0010.140.0031
Lincolnweld® LAC-690 F11A6-ECG-G-H40.110.380.041.330.402.340.0110.0070.151
Lincolnweld® LAC-Ni2 F8A10-ECNi2-Ni2-H80.100.040.872.620.0060.0050.204
Lincolnweld® L-S3 (LNS133U,L50M) F7A8-EH12K-H20.110.051.520.0090.0050.292
Lincolnweld® L-S3 (LNS133U,L50M) F7P8-EH12K-H20.120.061.500.0090.0050.292
Classification %Al2O3%CaF2%CaO%MgO%K2O%MnO%Na2O%SiO2%Metal Alloys
Typical Result 1525433121151
LECO Diameter Flux
LECO Package 50 lb Bag
Includes
  • (1) 50 lb Bag
