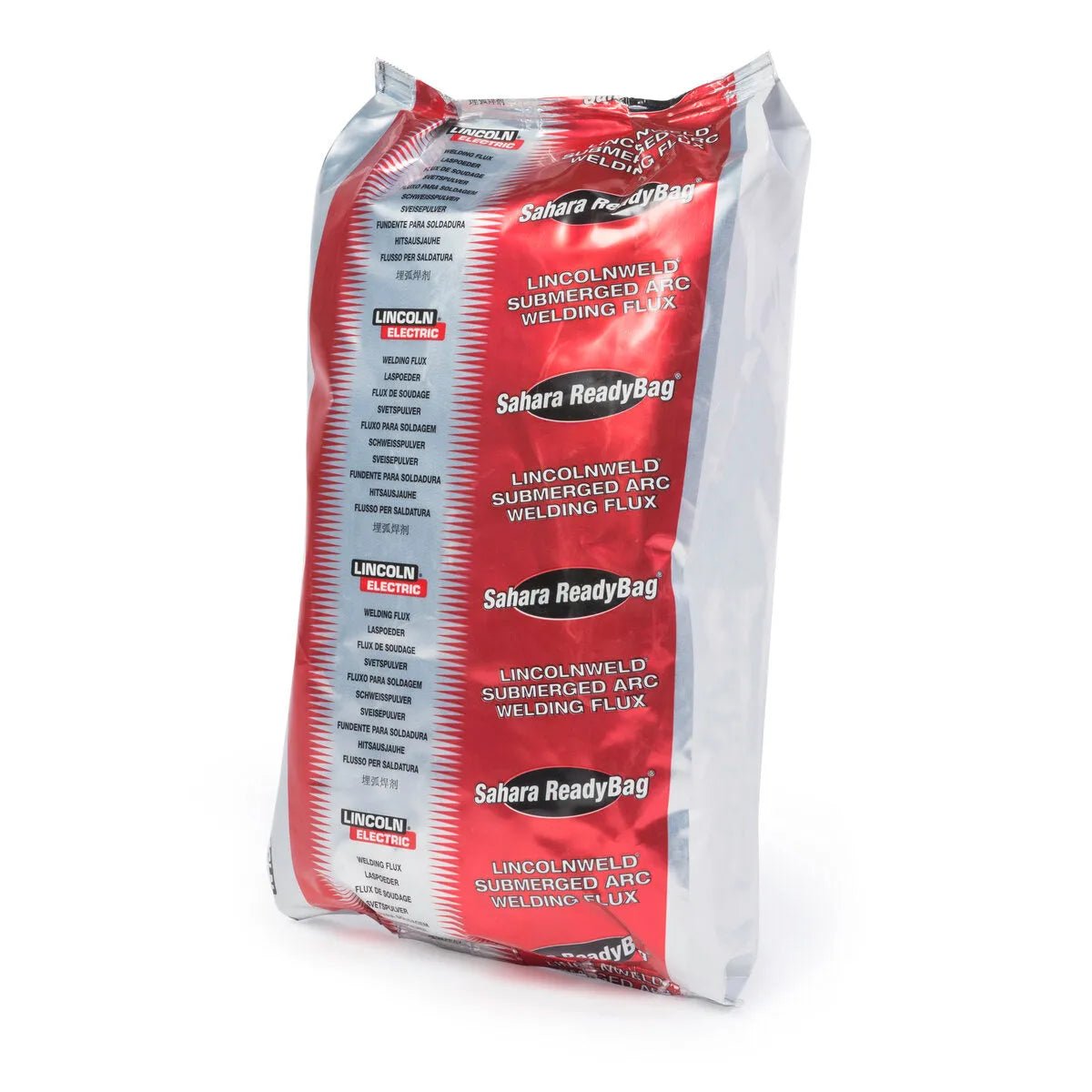

Lincoln ED035893 Lincolnweld MIL800-HPNi Submerged Arc SAW Flux, 50 lb Bag

SKU: ED035893
$340.48 $358.00
Lincoln Elite Dealer
Free Shipping
Lowest Price
High Performance / Alloy Flux
Overview
Features
  • When used with Lincolnweld® LA-85 the nickel content will increase from a nominal 1% to a minimum 1%
  • Use on high performance steel applications, including HPS70W or HPS100W
  • Capable of producing ultra low H2 diffusible hydrogen levels on HPS steels
  • Actual (Type 3.1) certificates for each lot of flux showing chemical composition, particle size and moisture level are available in the certificate center of lincolnelectric.com

Specifications
FeatureValue
Wire ClassificationPostweld Heat TreatmentYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -40°C (-40°F)Charpy V-Notch, J (ft-lbs) @ -50°C (-60°F)
Lincolnweld® LA-100 F11A4-EM2-G-H2As-welded740 (108)880 (128)23104 (77)
Lincolnweld® LA-75 F8A6-ENi1K-G-H2As-welded560 (81)650 (94)26155 (114)
Lincolnweld® LA-85 (LNS 165) F9A4-ENi5-G-H2As-welded590 (85)700 (102)24133 (98)
Wire Classification%C%Cr%Cu%Mn%Mo%Ni%P%S%SiDiffusible Hydrogen, mL/100g Weld Metal
Lincolnweld® LA-100 F11A4-EM2-G-H20.080.080.141.970.392.270.0120.0040.441
Lincolnweld® LA-75 F8A6-ENi1K-G-H20.090.030.101.370.001.340.0080.0050.561
Lincolnweld® LA-85 (LNS 165) F9A4-ENi5-G-H20.090.040.121.650.201.300.0130.0060.231
Classification %Al2O3%CaF2%CaO%FeO%K2O%MgO%Na2O%SiO2%TiO2%Metal Alloys
Typical Result 15284113111513 max.
LECO Diameter Flux
LECO Package 50 lb Bag
Includes
  • (1) 50 lb Bag
