Lincoln Electric Lincolnweld ED035980 1/8" – 1000 lb

SKU: ED035980
$6,347.41

Financing Options

Loading Affirm Estimate…
Lease-To-Own From $289/mo — 24-Mo Term, No Hard Credit Check
Lincoln Elite Dealer
Free Shipping
Lowest Price
Mild Steel Solid Electrode
AWS / Classification: EM12K

Overview

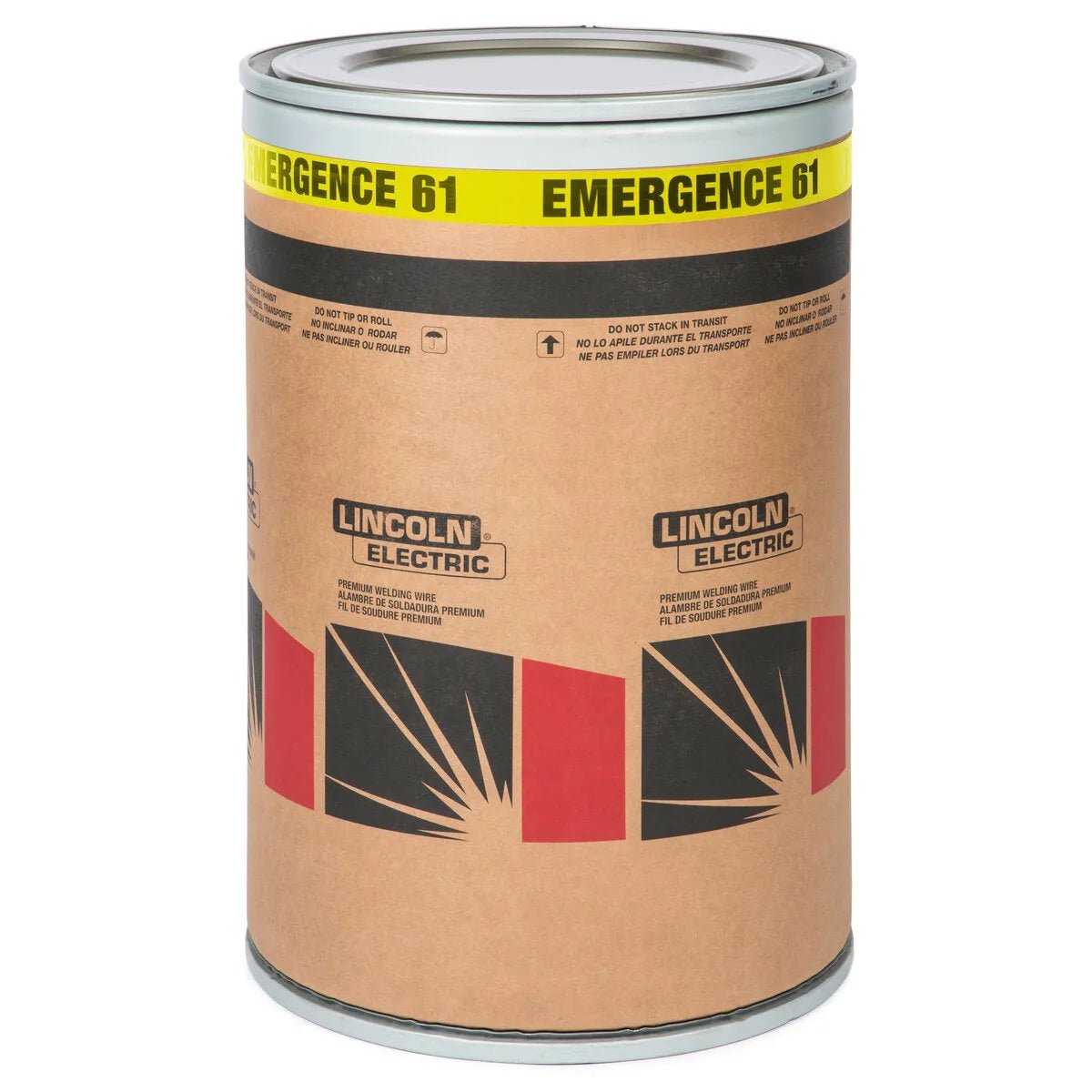

Lincoln ED035980 Lincolnweld Emergence 61 Submerged Arc SAW Welding Wire, 1/8 in, 1000 lb Speed Feed Drum
  • Low carbon, medium manganese, low silicon electrode
  • Coated with proprietary surface lubricant which is designed to eliminate one source of wire contamination in pipe mill welding applications
  • Improved contact tip life when compared to non-copper coated wire alternatives
  • Exact wire composition to Lincolnweld® L-61® copper coated wires makes requalification for welding procedures controlled by classification seamless



Features
  • Industry standard for submerged arc welding applications
  • A low carbon, medium manganese, low silicon general purpose submerged arc electrode
  • A good choice for a wide range of applications with single or multiple pass subarc welding
  • Actual (Type 3.1) certificates for each lot of wire showing chemical composition are available in the certificate center of lincolnelectric.com

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.17 EM12K
AWS AWS A5.23 EM12K
ISO ISO 14171-A S2Si
Classification %C%Mn%P%S%Si%Total Cu
EM12K Requirement 0.05 - 0.150.80 - 1.250.030 max.0.030 max.0.10 - 0.350.35 max.
S2Si Requirement 0.07 - 0.150.80 - 1.300.025 max.0.025 max.0.15 - 0.40
Typical Result 0.140.970.0050.0100.190.01
LECO Diameter 1/8 in (3.2 mm)
LECO Package 1000 lb Speed Feed® Drum
Diameter (in) 1/8
Includes
  • (1) 1000 lb Speed Feed® Drum
