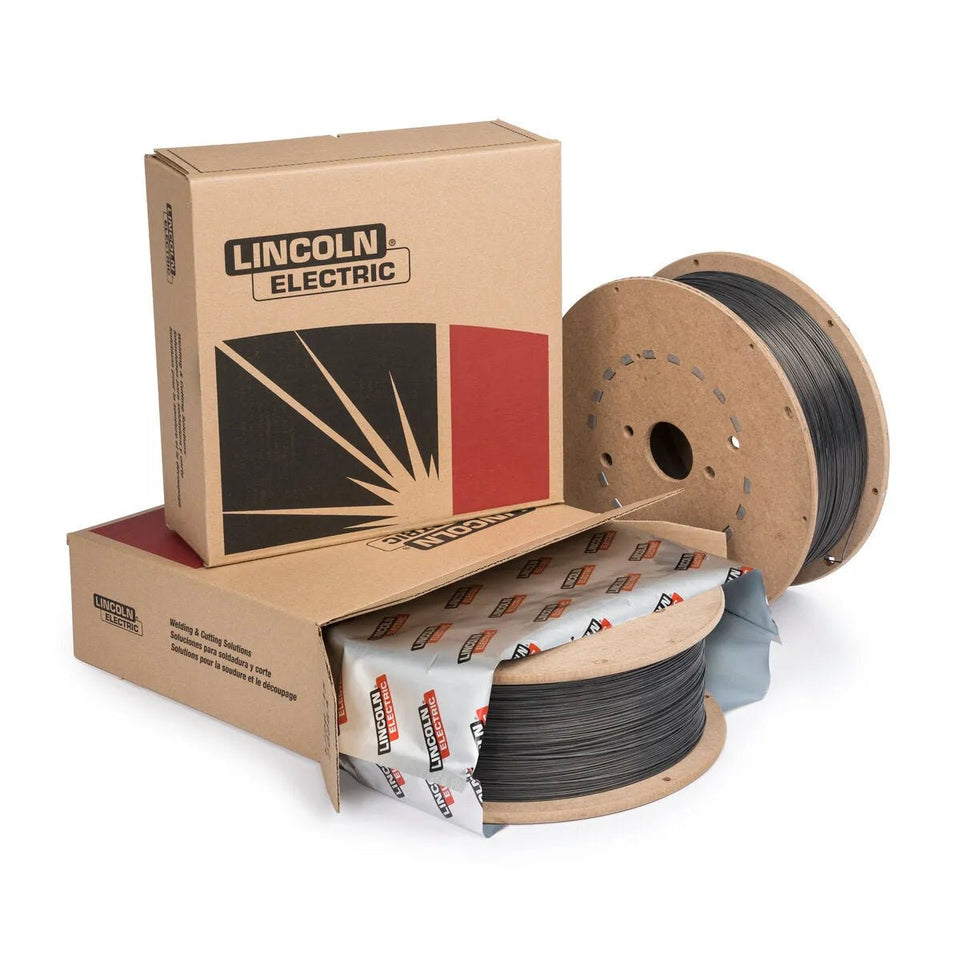

Lincoln Electric UltraCore ED036324 Flux-Core Wire 1/16" – 33 lb

SKU: ED036324
$142.96 $175.23
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
UltraCore® HD Marine from Lincoln Electric is a mild steel, gas-shielded flux-cored wire designed to provide high deposition rates up to 12 lbs/hr out-of-position.
AWS / Classification: E71T-9C-H8, E71T1-C1A2-CS1-H8
Overview

UltraCore HD-M 1/16 inch welding wire is a mild steel, gas-shielded flux-cored wire designed to provide high deposition rates up to 12 lbs/hr out-of-position.

Features
  • Excellent operator appeal with minimal spatter and low fume generation rates
  • High deposition rates up to 12 lbs/hr out-of-position
  • Fast freezing slag for a flat bead shape and increased productivity
  • Weld in all positions with one setting
  • ProTech® foil bag packaging

Typical Applications

  • Shipbuilding
  • General fabrication

Welding Positions

  • All

Shielding Gas

  • 100% CO2
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.20E71T-1C-H8, E71T-9C-H8
AWS AWS A5.36E71T1-C1A2-CS1-H8
ABS ABS - Part 22Y400SA H10, 2YSA H10
BV BV - Chapter 5SA2Y H10
DNV-GL DNV - 2.9II YMS H10
LR LR - Chapter 112YS H10
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)
E71T-1C-H8 Requirement 100% CO2DC+400 (58) min.480-660 (70-95)22 min.
E71T-9C-H8 Requirement 100% CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
E71T1-C1A2-CS1-H8 Requirement 100% CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
Typical Result, As-welded 100% CO2DC+490 (71)560-660 (81-95)2535-127 (26-94)
Classification Shielding GasPolarity%B%C%Mn%P%S%SiDiffusible Hydrogen, mL/100g Weld Metal
E71T-1C-H8 Requirement 100% CO2DC+0.12 max.1.75 max.0.03 max.0.03 max.0.90 max.8.0 max.
E71T-9C-H8 Requirement 100% CO2DC+0.12 max.1.75 max.0.03 max.0.03 max.0.90 max.8.0 max.
E71T1-C1A2-CS1-H8 Requirement 100% CO2DC+0.12 max.1.75 max.0.030 max.0.030 max.0.90 max.8 max.
Typical Result 100% CO2DC+0.0030-0.00420.05-0.061.39-1.700.01-0.020.006-0.010.35-0.402.6-6
Diameter Shielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)Deposition Rate, kg/hr (lb/hr)Efficiency, %
0.052 in (1.3 mm) 100% CO2DC+19-25 (3/4-1)3.8 (150)22-251402.0 (4.5)1.7 (3.7)81-85
0.052 in (1.3 mm) 100% CO2DC+19-25 (3/4-1)5.1 (200)23-261752.6 (5.8)2.2 (4.9)81-85
0.052 in (1.3 mm) 100% CO2DC+19-25 (3/4-1)6.4 (250)23-272103.4 (7.4)2.8 (6.2)81-85
0.052 in (1.3 mm) 100% CO2DC+19-25 (3/4-1)7.6 (300)24-292304.0 (8.8)3.4 (7.4)81-85
0.052 in (1.3 mm) 100% CO2DC+19-25 (3/4-1)8.9 (350)26-302554.6 (10.2)3.9 (8.7)81-85
0.052 in (1.3 mm) 100% CO2DC+19-25 (3/4-1)9.5 (375)27-302755.0 (11.1)4.3 (9.4)81-85
0.052 in (1.3 mm) 100% CO2DC+19-25 (3/4-1)10.2 (400)29-312805.4 (11.9)4.5 (9.9)81-85
0.052 in (1.3 mm) 100% CO2DC+19-25 (3/4-1)12.1 (475)29-332956.5 (14.3)5.5 (12.2)81-85
0.052 in (1.3 mm) 100% CO2DC+19-25 (3/4-1)12.7 (500)30-343207.0 (15.4)5.8 (12.8)81-85
1/16 in (1.6 mm) 100% CO2DC+19-25 (3/4-1)3.8 (150)23-261852.9 (6.3)2.4 (5.3)83-87
1/16 in (1.6 mm) 100% CO2DC+19-25 (3/4-1)4.4 (175)23-272203.3 (7.3)2.8 (6.1)83-87
1/16 in (1.6 mm) 100% CO2DC+19-25 (3/4-1)5.1 (200)23-272403.8 (8.3)3.2 (7.1)83-87
1/16 in (1.6 mm) 100% CO2DC+19-25 (3/4-1)5.7 (225)23-282604.2 (9.2)3.7 (8.2)83-87
1/16 in (1.6 mm) 100% CO2DC+19-25 (3/4-1)6.4 (250)24-292754.7 (10.4)4.3 (9.4)83-87
1/16 in (1.6 mm) 100% CO2DC+19-25 (3/4-1)7.6 (300)25-303155.6 (12.4)4.8 (10.6)83-87
1/16 in (1.6 mm) 100% CO2DC+19-25 (3/4-1)8.3 (325)27-313256.1 (13.5)5.3 (11.7)83-87
1/16 in (1.6 mm) 100% CO2DC+19-25 (3/4-1)8.9 (350)27-313356.7 (14.7)5.8 (12.7)83-87
1/16 in (1.6 mm) 100% CO2DC+19-25 (3/4-1)9.5 (400)28-323607.7 (16.9)6.6 (14.5)83-87
Note
⁽¹⁾ To estimate ESO, subtract 1/4 in. (6.0 mm) from CTWD.
LECO Diameter 1/16 in (1.6 mm)
LECO Package 33 lb Spool
Diameter (in) 1/16
Downloads
Includes
  • (1) 33 lb Spool
